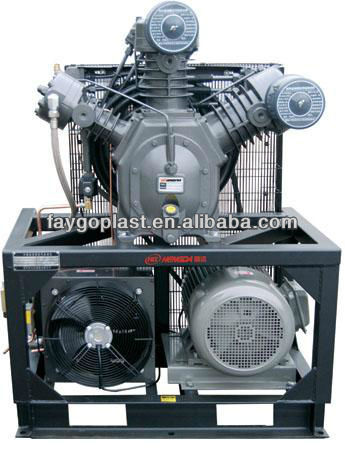

30 bar high pressure air compressor
1.Intrduction:
- The compressors in this series are widely used in PET bottle blowing.
- The compressor delivers outstanding quality under all weather conditions.
- An automatic unload system ensures that the system starts safely without residual pressure.This feature protects both frame ahd motor and so extends the workinglife of all components.
- This equipment does not requir a foundation saving plant installation costs.
2.Main data
Model | Air capacity (M3/min) | Working pressure (Bar) | Power(Kw) | Speed(r.p.m) | Weight(Kg) |
VH-0.7/30 | 0.7 | 30BAR | 7.5 | 680 | 310 |
WH-1.0/30 | 1.0 | 11 | 600 | 430 | |
WH-1.2/30 | 1.2 | 15 | 760 | 450 | |
WH-1.5/30 | 1.5 | 18.5 | 790 | 520 | |
WH-2.0/30 | 2.0 | 22 | 670 | 610 | |
WH-2.35/30 | 2.35 | 25 | 760 | 620 | |
2-WH-3.0/30 | 3.0 | 2*18.5 | 790 | 1150 | |
3-WH-3.6/30 | 3.6 | 3*15 | 700 | 1580 | |
VH-0.17/35 | 0.17 | 35BAR | 2.2 | 660 | 110 |
VH-0.65/35 | 0.65 | 9.0 | 605 | 420 | |
WH-1.1/35 | 1.1 | 15 | 900 | 475 | |
WH-2.0/35 | 2.0 | 22 | 670 | 615 | |
WH-2.2/35 | 2.2 | 25 | 735 | 600 | |
VH-0.3/40 | 0.3 | 40BAR | 5.5 | 500 | 290 |
WH-1.0/40 | 1.0 | 11 | 790 | 470 | |
49SH-2.6/40 | 2.6 | 25 | 625 | 900 | |
49SH-3.0/40 | 3.0 | 30 | 695 | 920 | |
2-49SH-6.0/40 | 6.0 | 2*30 | 695 | 2100 | |
4-WH-4.0/40 | 4.0 | 4*11 | 790 | 2400 | |
6-WH-6.0/40 | 6.0 | 6*11 | 790 | 3600 |
3. Inspection method:
CAGI
4. Inspection standard:
-AISI
-AMS
-ANSI
-ASME
-ASTM
-AGMA
-AGMA
-NEMA
-VDI
-CAGI-NPEUROP
-MS
5. Technical characteristics:
4.1 Automatic pressure unloading system, ensure machine starting without loading.
4.2 With exhaust check valve on outlet.
4.3 Removable type inlet silencing filter, 10 micron precision.
4.4 Normal inertia flywheel, 2 root V belt drive.
4.5 Splashing lubrication to all moving Parts.
4.6 Light alloy pistons, with PTFE.
4.7 Cast iron cylinder head, independent valve seat.
4.8 Automatic hoop valve piston rings, big flow, more action, high efficiency.
4.9 World famous brand rolling bearing, ensure the stable operation unit.
4.10 Enough space between the cylinder and the crankcase design, avoid friction between connecting rod, moving parts and crankcase.
4.11 With Safety Valve Between after-cooling.
5.Photo

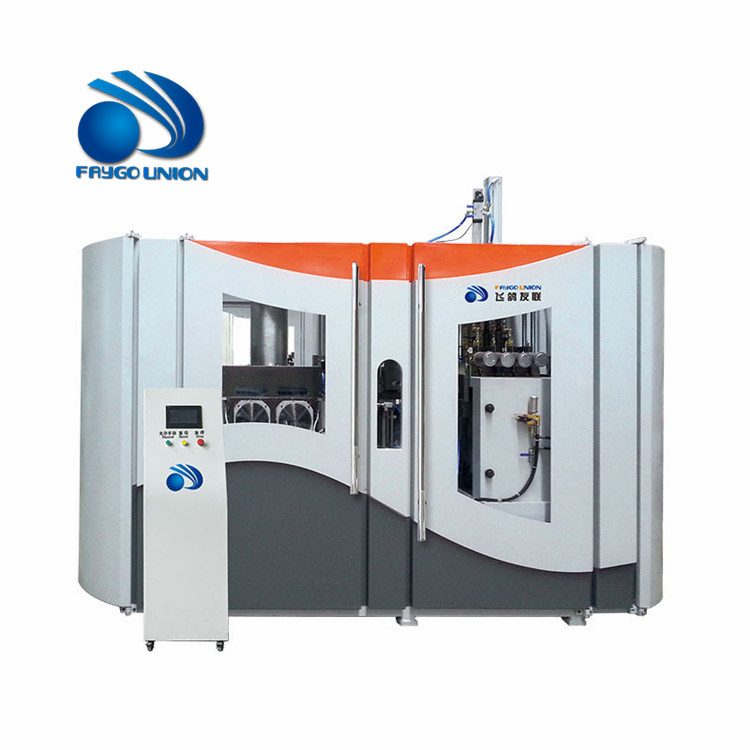

BLOWING MOIDING MACHINE
CUTTING MACHINE
SEALING MACHINE
1.Installation
Debug We will arrange seasoned technician for debug and test production at the same time make the equipment reach
the rated producing capacity of the line.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3.The sample service
1/We can send you the video of the running machine.
2/You are welcome to come to visit our factory,and see the machine running.
4.Customizable
We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you
know,we have been in this industry for 12 years.
5. Specialist
Well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 .Guarantee
12 Months guarantee and life-long technical support.
Your business relationship with us will be confidential to any third party.
Good after-sale service offered, please get back to us if you got any questions
1.Your company is a trading company or a direct factory?
We are a direct factory located in Zhangjiagang City. Very close to Shanghai and Wuxi (airport and train provided). If you arrive in Shanghai or Wuxi, we can pick you up to visit our factory.
2.If we buy your machine, what is your guarantee or guarantee of quality?
We provide you with high-quality machines with 1-year warranty and lifetime technical support.
3.How to ensure the safety of your funds and deliver on time?
1/Through Alibaba's letter guarantee service, it will ensure on-time delivery and the quality of the equipment to be purchased.
2/Through the letter of credit, you can easily lock the delivery time.
3/After visiting the factory, you can ensure the authenticity of our bank account.
4.Check how ECENG MACHINE ensures quality?
1/In order to ensure the accuracy of each part, we are equipped with various professional processing equipment, and we have accumulated professional processing methods in the past few years.
2/Each component before assembly needs to be strictly controlled by inspectors.
3/After all equipment is completed, we will connect all machines and run the entire production line for at least 12 hours to
ensure the stable operation of the customer’s factory.
