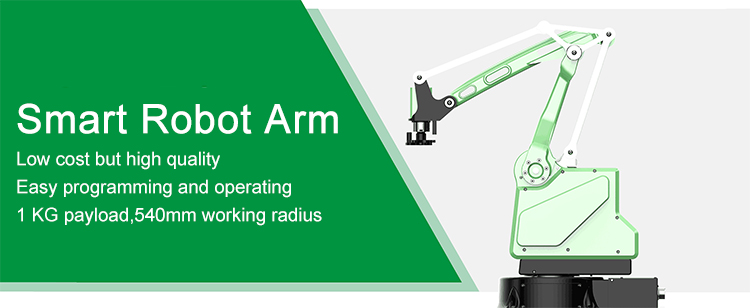

Wholesale Cheap Industrial Automatic 1kg Small Payloader Smart Desktop 4 Axis Mechanical Robot Arm
FOB Reference Price
Purchase quantity ()
Minimum order quantity
Payment
Jiangsu Faygo Union Machinery Co., Ltd.
China - Suzhou
Manufacturing and trade
Trade Capacity
Export Percentage
70-90%
Nearest Port
Shanghai,Ningbo
Accepted Delivery Terms
FOB,CIF,EXW
Employees
201-300 people
Accepted Payment Currency
USD,EUR,CNY
Average Lead Time
45 Day(s)
Certifications
Product Specifications
--Product Description
Product introduction
Claws Design
Our robot products can be adapted to different specifications of end-effector, and support expansion for third-party. The strong compatibility of robots ensures that it is flexible and convenient. It can be quickly replaced the terminal according to the needs of use, and efficiently complete a variety of tasks.
Application
Product Paramenters
Robot Parameters | ||
Working radius | 540mm | |
Number of axis | 3 Axis/4 Axis | |
Installation | floor | |
N.W. | 13kg | |
Repeat Positioning Accuracy | ±0.05mm | |
Maximum load | 1kg | |
Power Consume | 0.4KVA | |
Power supply | Input:Single phase 110V-240V 50Hz Output:DC 24V(400W) | |
Voltage rating | 220V | |
External communication | WIFI/Ethernet | |
Application | Picking, Loading, Casting, Polishing Etc | |
Safety standard | ISO 9001-2015 | |
Working condition | -10°C~60°C | |
I/O | Input 5/Output 5 | |
Axis'Working Range | ||||
Axis | Working Range | Max Speed | ||
Axis 1 | ±160° | 360°/s | ||
Axis 2 | -42°~85° | 360°/s | ||
Axis 3 | -20°~100° | 360°/s | ||
Axis 4 | ±165° | 500°/s | ||
Product Features

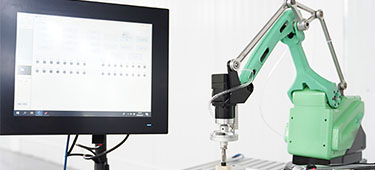

Control Technology
Mechanical Design

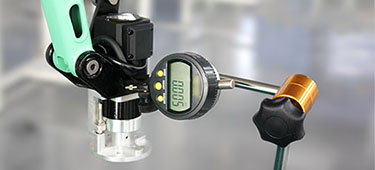

Compact transmission design and the repeatable positioning accuracy is less than 土0.05mm.

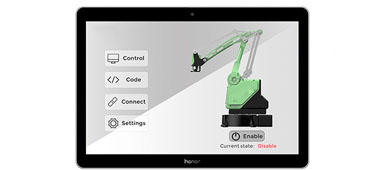

Teach Pendant

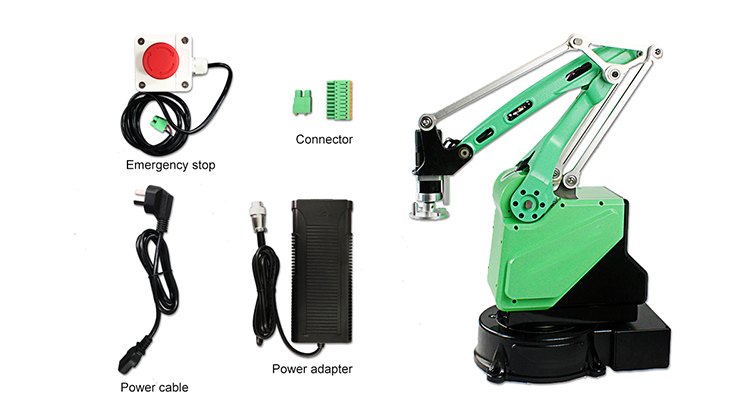

Package List
