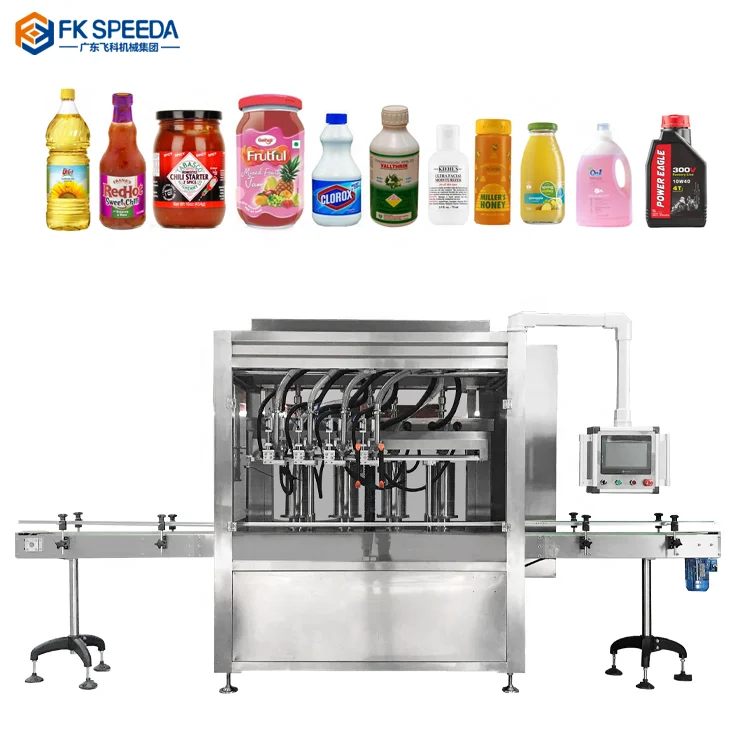

Servo Motor Automatic Double Heads Honey Jam Juice Ketchup Peanut Butter Paste Bottle Following Tracking Filling Machine
FOB Reference Price
Purchase quantity ()
Minimum order quantity
Payment
Guangdong Feibin Machinery Group Co., Ltd
China - Dongguan
Manufacturing and trade
Trade Capacity
Export Percentage
30-50%
Nearest Port
Shenzhen,Guangzhou,Zhuhai
Accepted Delivery Terms
FOB,CFR,CIF,EXW,DDP,Express,Delivery
Employees
201-300 people
Accepted Payment Currency
USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CNF
Average Lead Time
20 Day(s)
Certifications
CE
ISO9001
Product Specifications
--Product Description
Product Overview

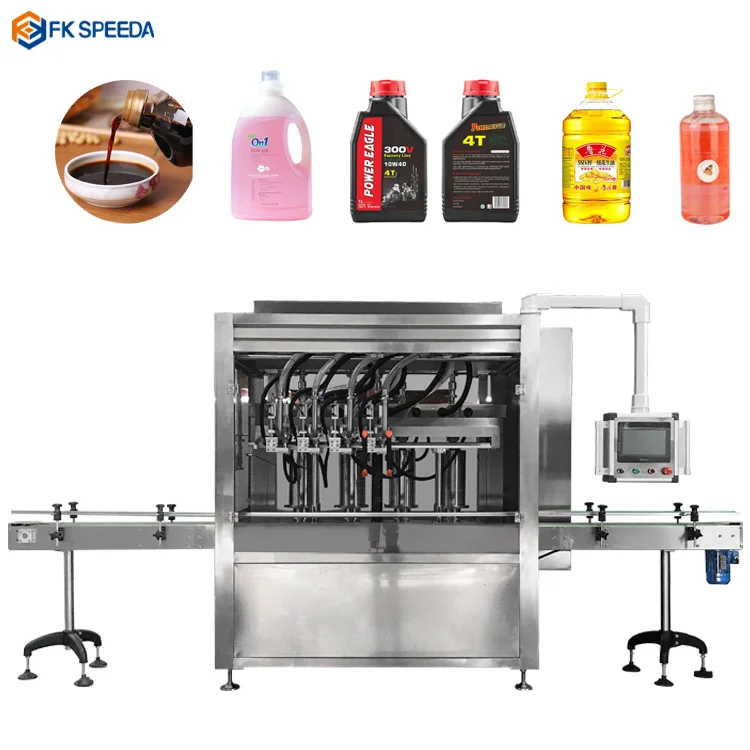

Automatic 4 heads tracking liquid filling machine
Suitable for various bottle types, filling equipment developed for viscous and fluid liquids, widely used in daily chemicals, cosmetics, and other industries.Controlled by servo motor,this automatic filling machine is suitable for filling thicker liquid like lotion,liquid soap,laundry detergent.The filling nozzle will follow the bottle during the filling process and fill the material while moving,it has faster filling speed and higher filling accuracy.
1.Applicable filling materials: honey, hand sanitizer, laundry detergent, shampoo, shower gel, etc. (Standard equipment uses 304 stainless steel for the contact material part, please note if there is high-strength corrosive filling liquid)
2. Applicable products: round bottle, flat bottle, square bottle, etc.
3.Application industry: widely used in cosmetics, daily chemical, petrochemical, and other industries.
4. Application examples: hand sanitizer filling, laundry detergent filling, honey filling, filling, etc.

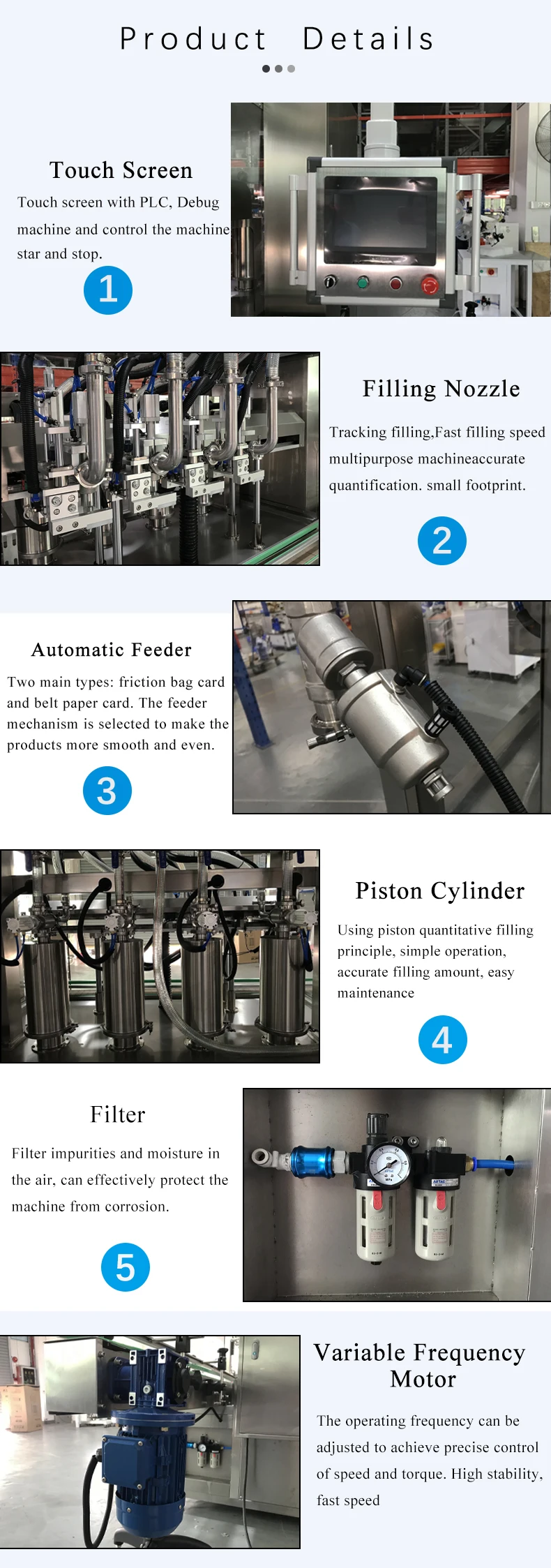

Functional characteristics:
◆ Simple operation, convenient debugging, easy to use;
◆ Filling system, lifting system and tracking system are all controlled by servo motor, with high precision; guardrail is controlled by stepper motor.
◆ It is not necessary to use tools to replace products of different specifications in the whole process. The size of the product is controlled and debugged by the touch screen, and each product only needs to debug the formula parameters for the first time. After the parameters are saved, the subsequent production of this product is required. There will be no need for machine debugging. When changing products, you only need to take out the specifications of the required products on the touch screen formula. After taking them out, the equipment will be automatically converted and debugged to the required product specifications, and it can be produced without manual debugging and can be saved for 10 group recipe;
◆ The filling head is controlled separately, and the two filling systems are separate;
◆ The filling speed and filling volume can be directly input on the display screen, and the filling can be done without adjusting the mechanical parts;
◆ It adopts three-speed filling or two-speed filling, and the three-stage speed and filling volume can be adjusted to prevent the liquid from splashing out after full;
◆ Intelligent control, automatic photoelectric tracking, no bottle filling;
◆ There is a clamping mechanism at the back end of the machine conveying; it can be connected to the back end for the transition of the back end conveying line;
◆ Fast and widely used in industries;
◆ The main materials of the equipment are stainless steel and high-grade aluminum alloys, which conform to GMP production specifications. The overall structure is firm and beautiful.
PRODUCT SPECIFICATIONS
Parameter | Data |
Applicable filling diameter (mm) | ≥20mm |
Applicable filling range (ml) | 500ml~5000ml |
Filling accuracy (ml) | ±l% |
Filling speed (pcs/h) | 1800-2000pcs/h (2L) |
Weight (kg) | about 360kg |
Frequency (HZ) | 50HZ |
Voltage (V) | AC220V |
Air pressure (MPa) | 0.4-0.6MPa |
Power(KW) | 6.48KW |
Equipment dimensions (mm) | 5325mm × 1829mm × 1048mm |
Application
Successful Project&Feedback
Packaging& Delivery
