Semi Automatic Pet Blowing Machine,Plastic Bottle Making Machine Prices
Specifications
1.1600-2000BPH
2.With screen

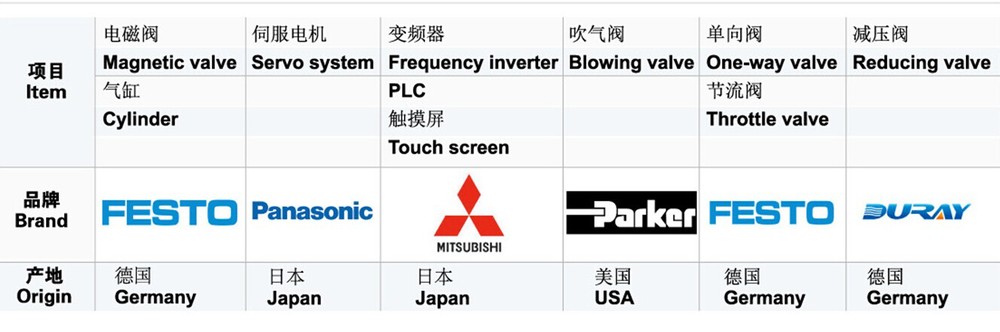

3. & SMC & PARKER pneumatic components,
4.CE,ISO9001
Semi Auto 4 Cavity PET Bottle Blowing Machine
I. Brief Introduction:
2.The air system has been divided into two parts: physical movement of machine and blowing movement. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
3.The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
4.The machine can be operated in the step-by-step mode and the semi-auto mode.
5.The machine is small with low investment, easy to operate.
II. Technical Parameter:
| ||
Model | CM-8Y | |
Container | Product material | PET |
Volume | 0.1L-2L | |
Theoretical output | 1400-1800PCS/H | |
Preform length | 15mm-350mm | |
Preform inner diameter | φ5mm-38mm | |
Moulding | Max.mould plate Dimenstion(L x W) | 350x380mm |
Max.mould thickness | 180mm | |
Clamping force | 45KN | |
Mould opening stroke | 160mm | |
Machine size and weight | Main machine (L x W x H) | 160x60x161cm |
Main machine weight | 500Kg | |
Heater (L x W x H) | 187x63x145cm | |
Heater weight | 250Kg | |
Power | 17.5kw | |

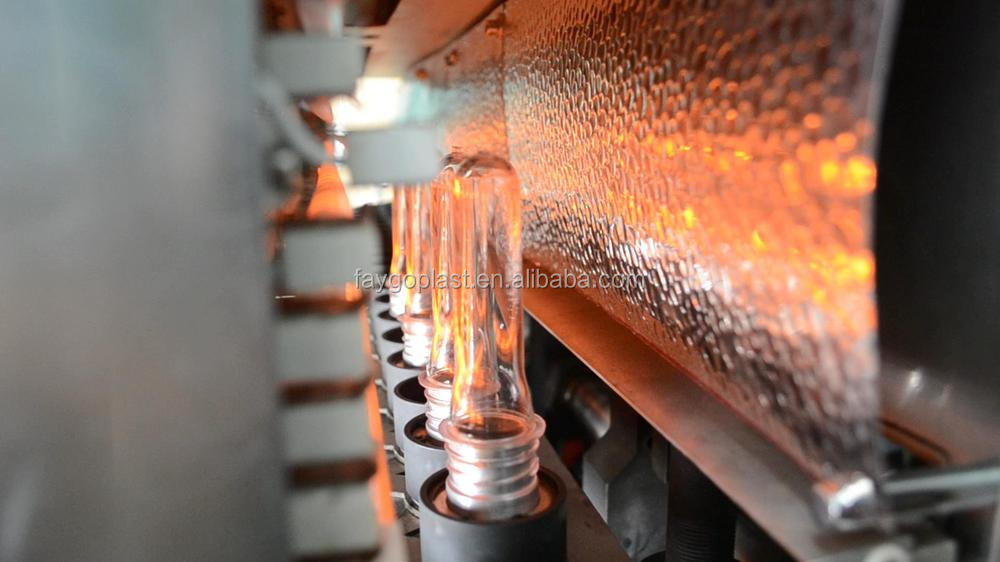

Heating Oven

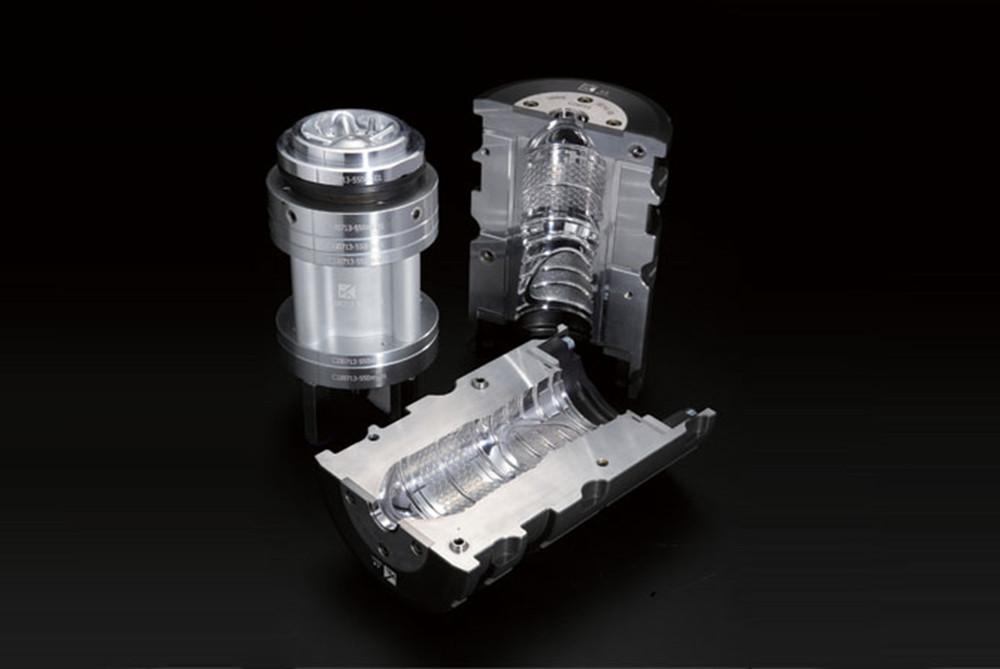

Bottle Mold

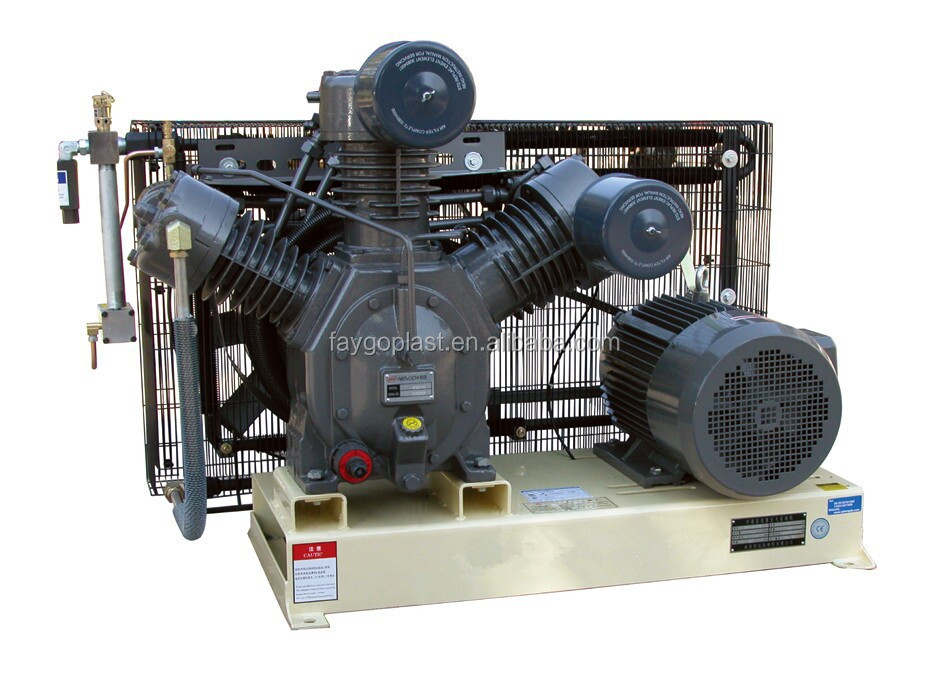

Air compressor
CE and ISO9001
1) Stand-by engineers team to provide overseas installation and commissioning service.
2) 1 year warranty. During warranty, we provide free of charge for repairing cost.
3) Lifetime maintenance. After-sales department can provide life long maintenance service.
We warmly welcome friends from all over the world to visit our company and see machine
