Pepsi Cola Filling Machine/Small Manufacturing Machines

1.Capacity(B/H):6000
2.Filling heads:16-16-5
3.Bottle type(ml):250-2500


Automatic carbonated beverage filling machine

Brief introduction:

The machine could be separated to 3 modules. The height of the bottle-out conveyor is adjustable. Bottles are conveyed to rinser, filler and capper through starwheel and conveyed out finally through bottle-out conveyor. Equip alarm device for bottle block, bottle absence, cap absence and overload. The machine meets the national food hygienic standard, with high automation and easy to operate.

Products Specification:

Products can be handled: Cola, carbonated water, soda water, etc; Containers can be handled: PET bottles with various volumes and shapes; Filling system: Isobaric filling; Capacity: 5000BPH—43200BPH

Technical features:

1) Adopt technology of air conveyor direct connect with bottle infeed starwheel and neck handling technology to convey bottles.
2) High speed filling line adopts bottle gripper conveying technology. It is free to changer over bottle size and the working table inside the machine is more laconic.
3) By 3-in-1 monoblock, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle changing is easier.
4) Specially designed stainless steel bottle gripper dose not contact the thread parts of the bottle neck, avoiding the second contamination.
5) Pressure liquid carousel. High speed line adopts annular liquid carousel.
6) High speed and mass flow filling valve enssures the high filling speed and exact fluid level.
7) Parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic. The electric system is from international brand and achieves the national food hygienic standard.
8) The bottle-out starwheel is helical structure. While changing over bottle size, it is no need to adjust bottle-out conveyor height.


Main composition:

3-in-1 monobloc is composed of rinser, filler, capper, machine base, covering windowns, main motor and transmission system, cap unscrambler and electric control system, etc.
The overturning device of the rinser is mainly composed of water distributor, bottle gripper, upper rotary tray, guide trackl, protection cover, water spraying device and water collection tray.
Filling device is mainly composed of filling carousel, filling valves, guide track, elevation device, elevating device, and bottle blocking device, etc.
Capping device is composed of cap unscrambler, cap falling chute and capper.
The auxiliary (or optional) equipment include rinsing water recycle tank, bottle-in air conveyor and bottle-out conveyor. In addition, the manual bottle feeding table (or bottle unscrambler) and automatic cap elevator can be equipped according to customer requirement.

Technical parameter:

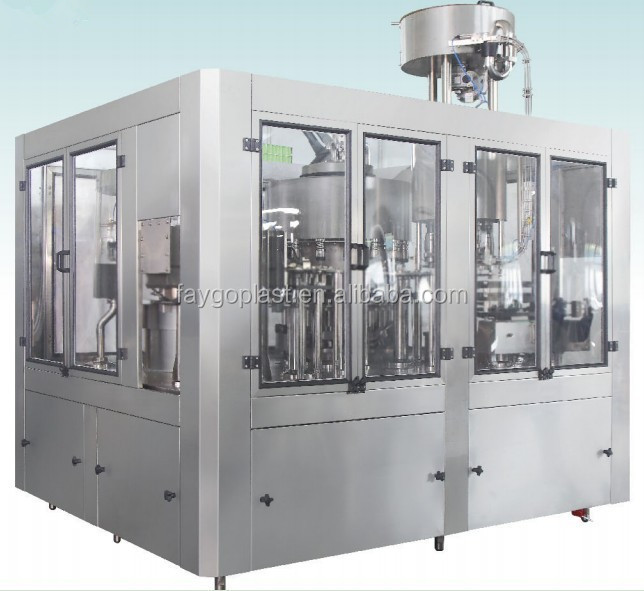

3 in 1 Isobaric Filling Machine

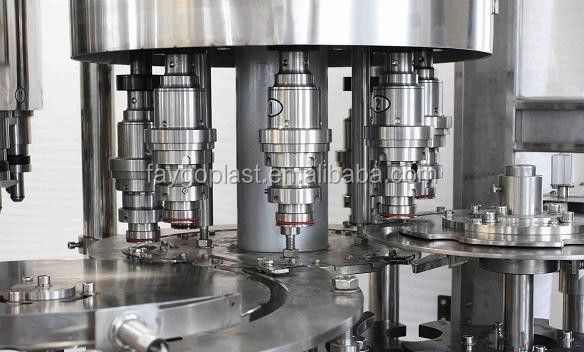

Carbonated Filling Valves

Automatic Capping Heads

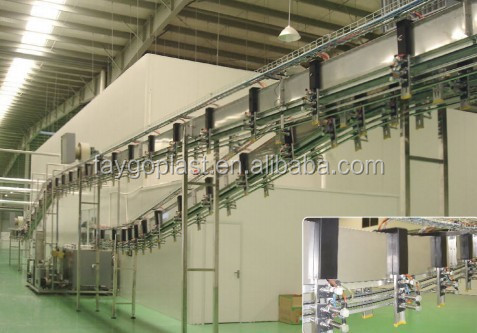

Air Conveyor

Filled Bottle Conveyor
