PP PE PVC Pipe Making Machine Price/Plastic Flexible Pipe Extrusion Production Line/ Electric Conduit Pipe Machine

20-63mm PE Pipe Extrusion Machine Line

Features of our machine PE Pipe Making Machine:

PE electric conduit pipe making line,we can also supply 2 layer, 3 layer, 4 layer pipe co-extrusion line.

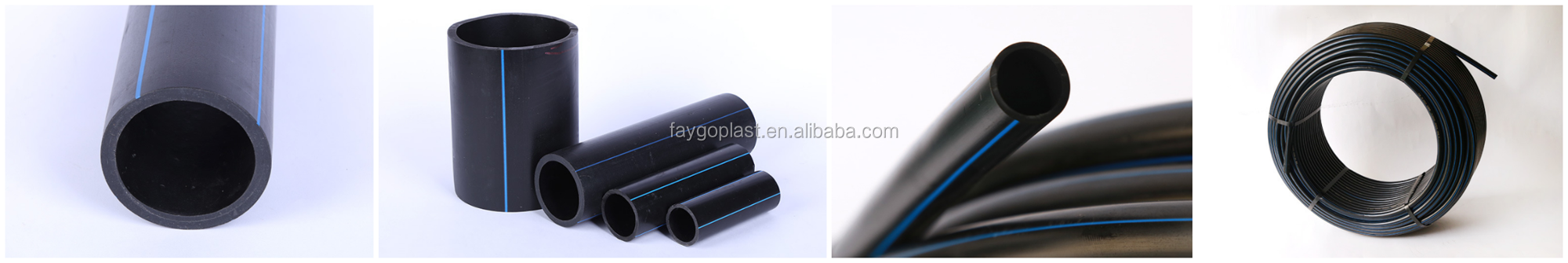

Pipe Diameter range:  20mm,25mm,32mm,40mm, 50mm, 63mm,, Single Pipe Outlets.

Machine Picture

1.The extruder and haul-off adopt imported AC frequency control device, vacuum pump and haul-off motors adopt high-quality brand.

2.The haul-off methods are two-claw, three-claw, four-claw, six-claw, eight-claw etc.
3.You may choose saw cutting type or planetary cutting type. It is additionally attached with the length counter and intensifying device.
4.The equipment is with the reliable performance and high production efficiency.

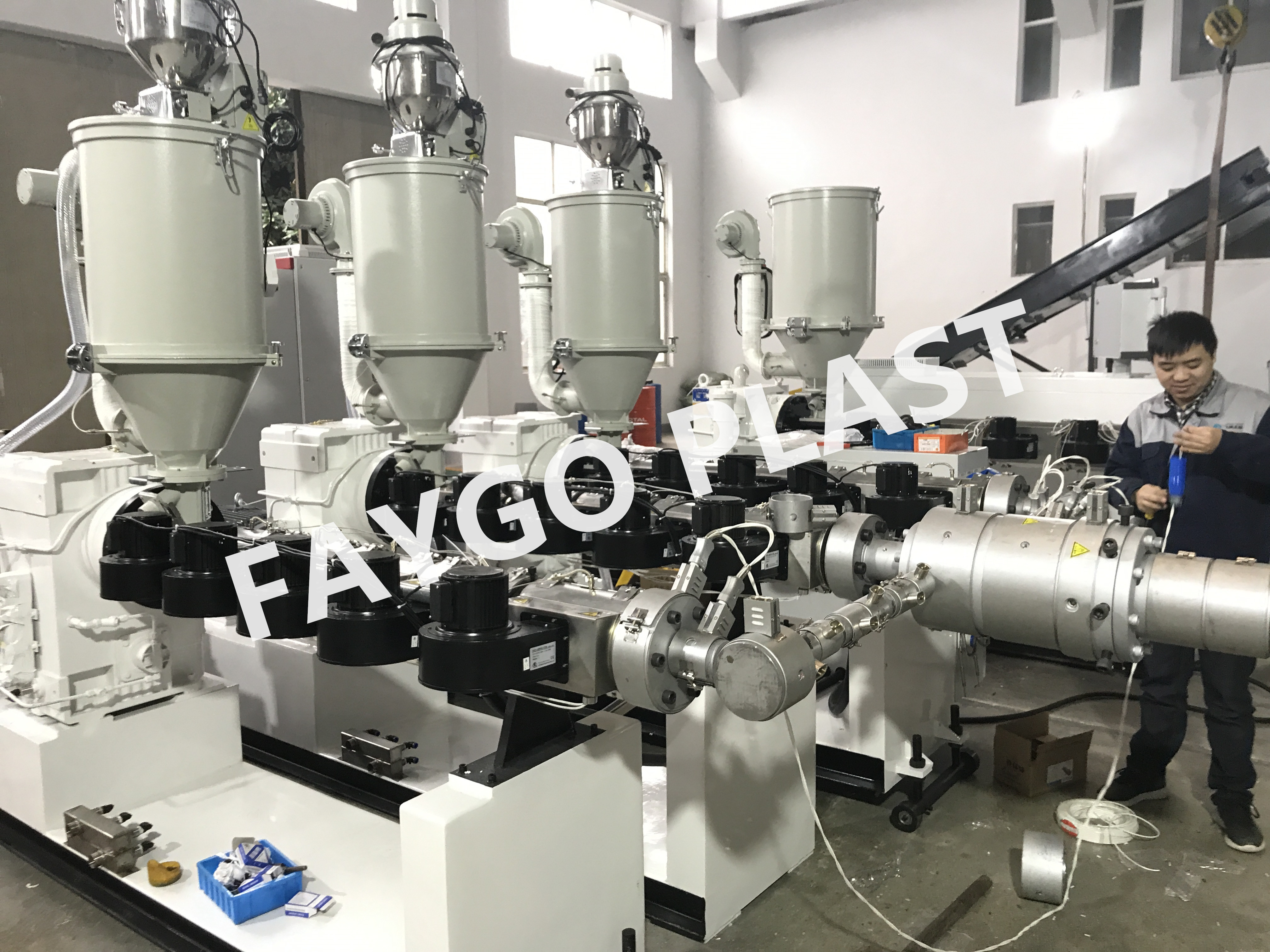

1. SJ 65 Single screw extruder machine:

Screw and Barrel: Design for PPR material, Screw and Barrel Material 38CrMoAlA,Nitriding, Surface Chrome plate, Nitriding Layer Thickness:0.5~0.7mm, Surface Rigidity:800~900HV.

 2. Pipe Mold

 Extrusion mold material: 40Cr. Calibration mold material: Wearable tin bronze ZQSn5-2-5.

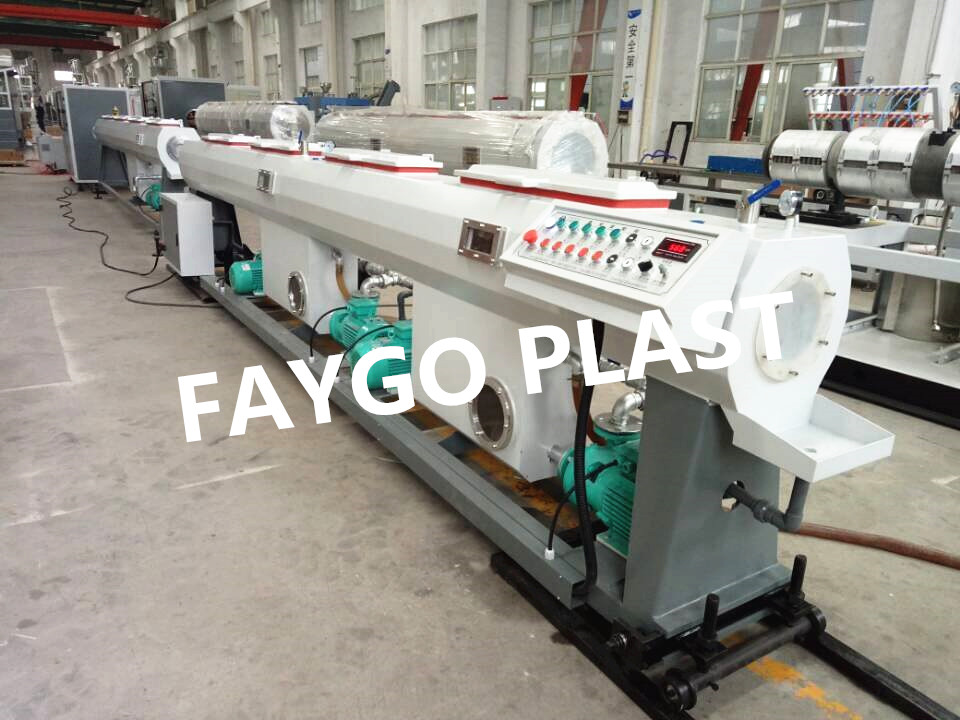

3. Vacuum calibration tank

Calibration Tank Length: 6m, Adopt 3mm thickness stainless steel board, Adopt 0.75KW Gearbox Speed Reducer Motor, Adjusting Distance equal to 800mm

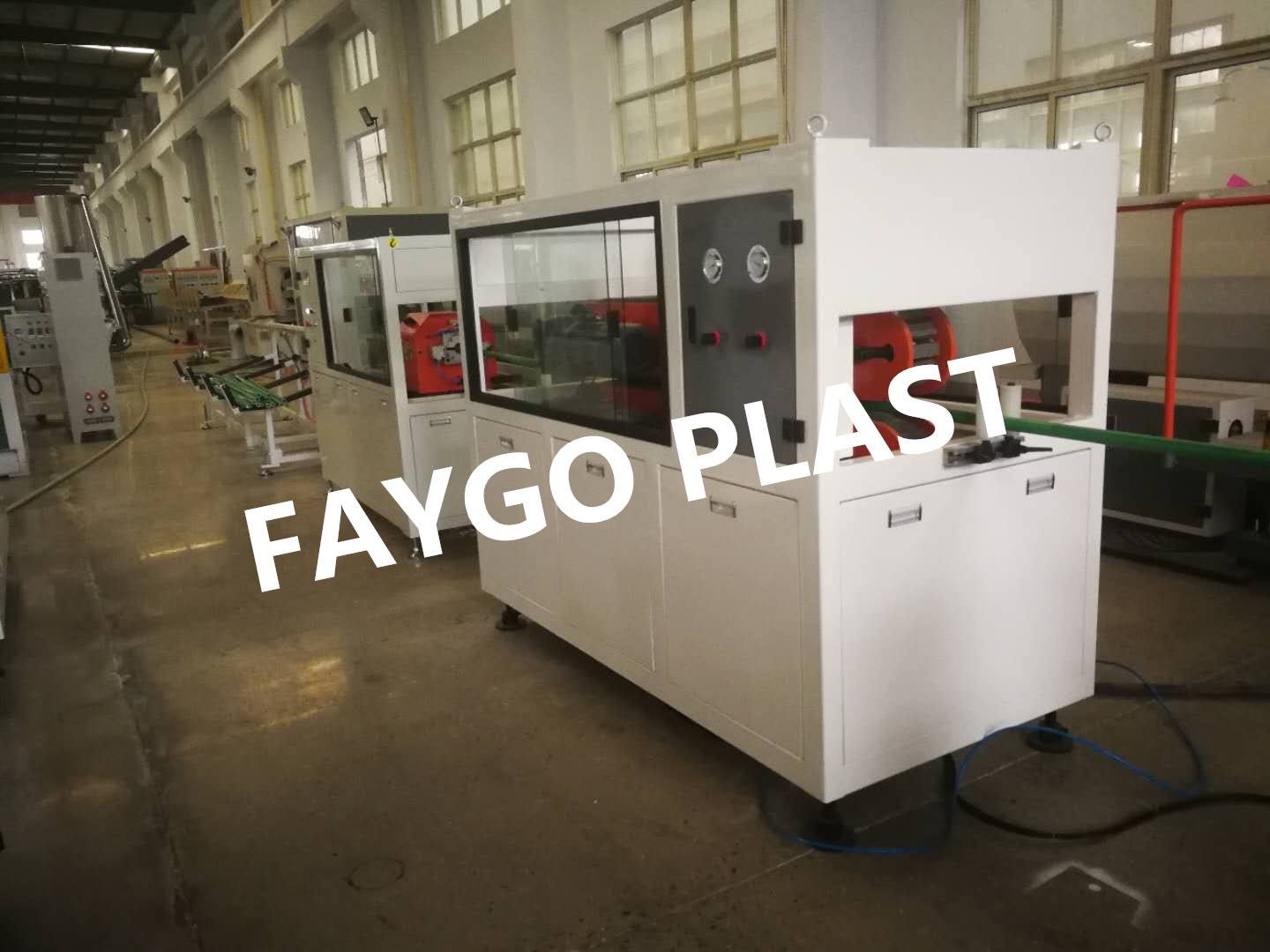

4. Haul off and cutting machine

Haul-off Bracket Length 1200mm, Adopt Pneumatic gas cylinder,

Adopt 1.5kw*2sets ABB Inverter, Belt 80mm*2500mm.

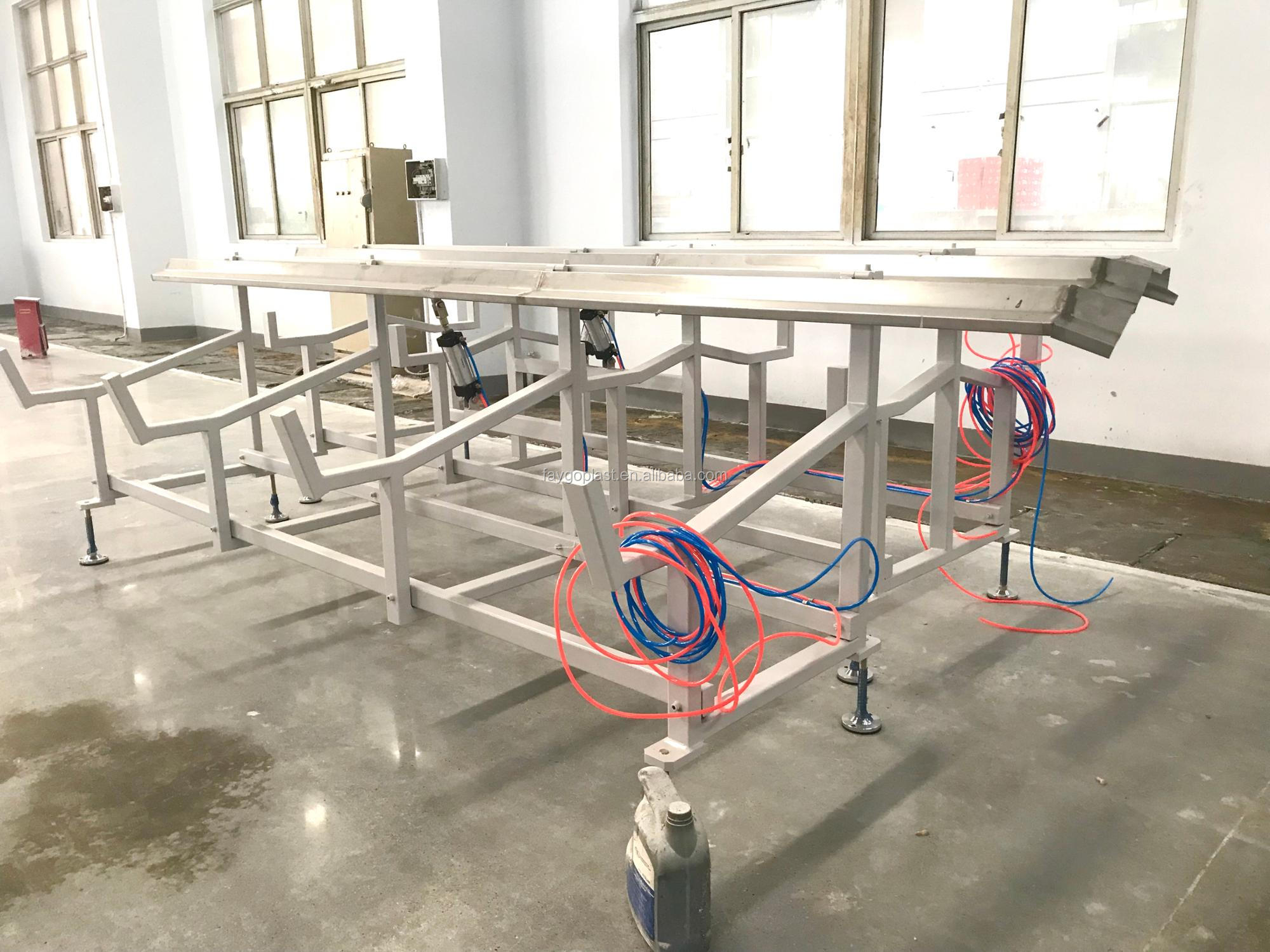

5. Stacker

Stacker length 4m, 1.5mm stainless steel board,

Stacking by Gas cylinder, Adopt limited switch send out cutting signal.
