PP PE PVC Corrugated Pipe Making Machine/ Flexible Electric Water Supply Tube Hose Extrusion Machine
PP PE PVC Corrugated pipe making machine
PE, PP , and PVC single wall corrugated pipe extrusion line with high speed and stable running.
HDPE single wall corrugate pipe machine PP/PE/PVC/EVA/PA single wall corrugated pipe machine.we developed the mahcine on the basis of traditional structure, we give new designing on the forming table, we adopt SJ 45 SJ 65 SJ 90 to produce different range pipe diameter. our machine easy to operate, stable running, we provide long term after sell service.
| Pipe diameter | 8-32mm | 16-75mm |
| Main Extruder model | SJ50 | SJ65 |
| Main Extruder L/D | 25:1/28:1/30:1 | 25:1/28:1/30:1 |
| Capacity | 30-50kg/h | 60-80kg/h |
| Main Motor | 11KW/15KW | 18.5KW/22KW |
| Cooling type | Air fans cooling | Air fans cooling |
| Forming mould quantity | 50 paris | 60 pairs |
| Production Speed | 8-12m/min | 8-15m/min |
| Forming machine motor | 1.5kw | 1.5kw |

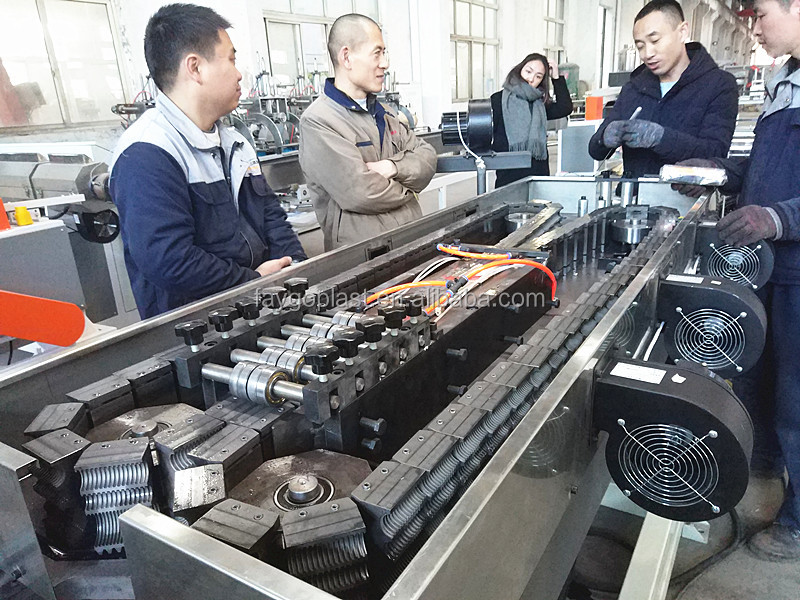

Machine Show:

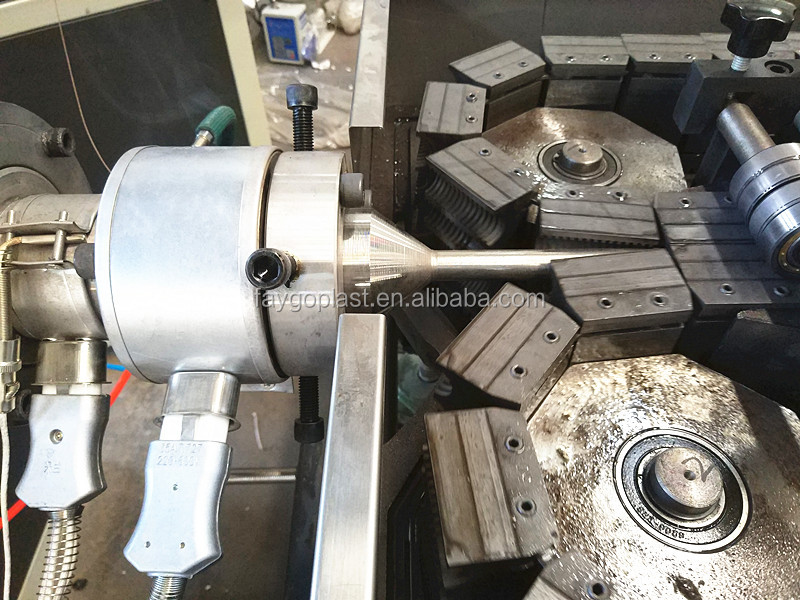

38GrMoALA alloy steel under nitriding treatment . Depth of screw:0.4-0.6mm hardness: HV>740. Depth of barrel:0.5—0.7mm hardness: HV>940

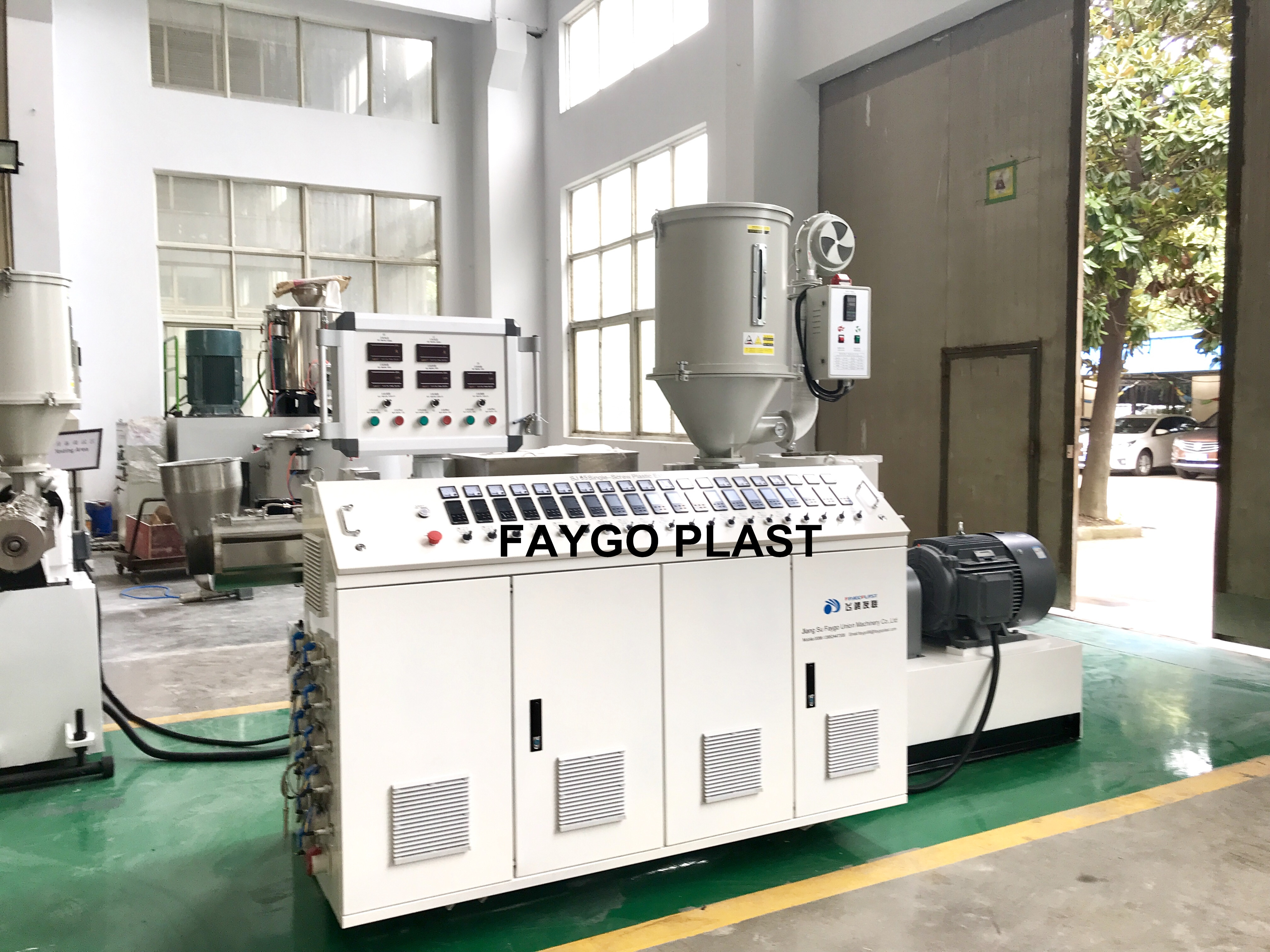

Extrusion capacity: 60kg/h, Main Electrical Parts: Temperature Controller: OMRON, Contactor: SIEMENS
40Cr quenching treatment, under chrome and hardness treatment.
Motor power: 2.2kW, Fan cooling. worm gear and worm reducer one set, gear reducer one set.

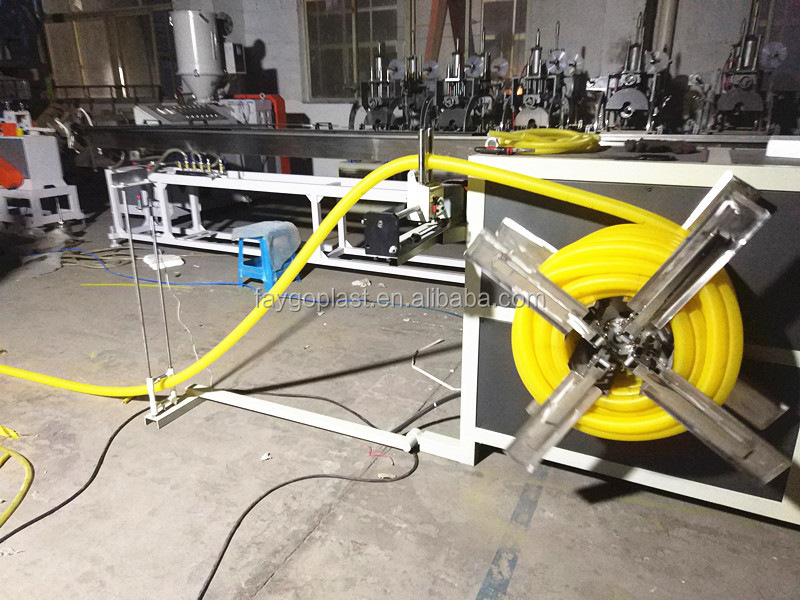

Winding speed: 0.5-40m/min. Air pressure: 0.6mpa.
Work Shop:
Shipping Details:
Clients Show:
