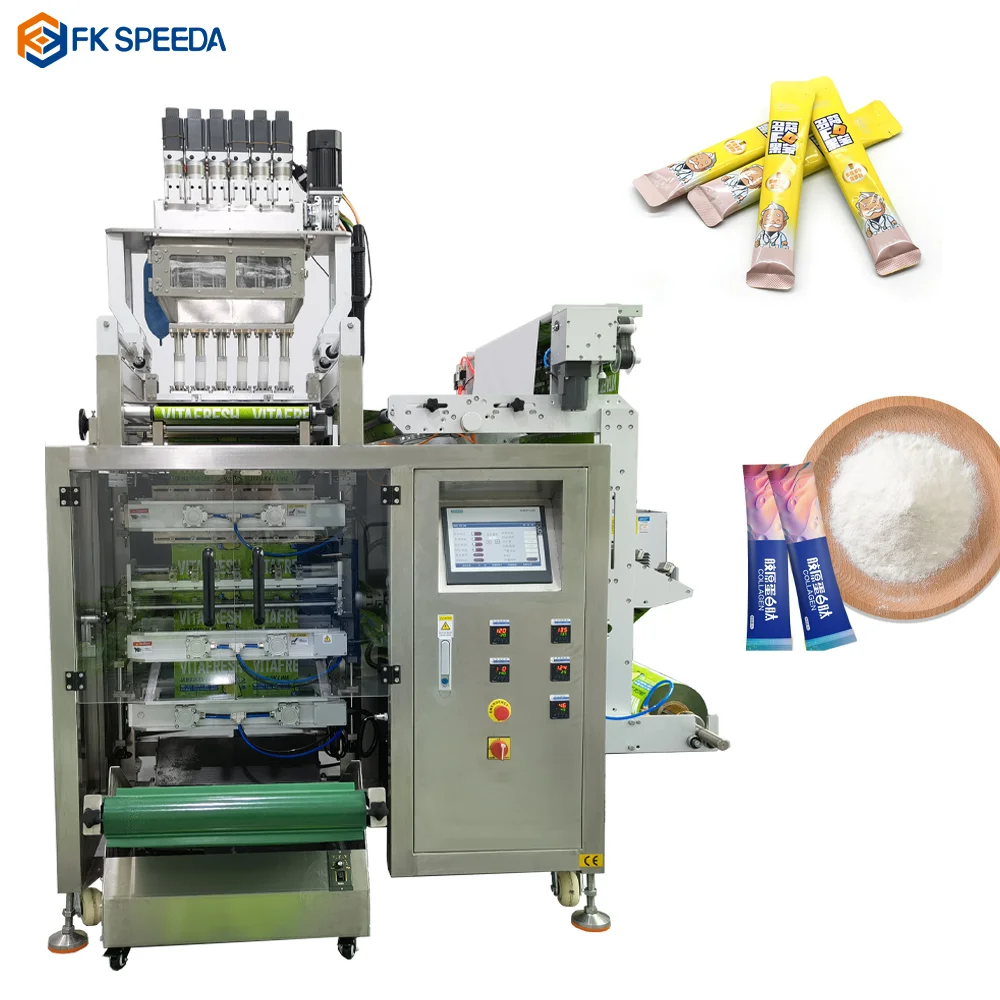

Multi-function 6/8/10/12 Small Pouch Turmeric Coffee Powder Multi Line Sachet Packing Machine
  • Multi-function 6/8/10/12 Small Pouch Turmeric Coffee Powder Multi Line Sachet Packing Machine
  • Multi-function 6/8/10/12 Small Pouch Turmeric Coffee Powder Multi Line Sachet Packing Machine
  • Multi-function 6/8/10/12 Small Pouch Turmeric Coffee Powder Multi Line Sachet Packing Machine
  • Multi-function 6/8/10/12 Small Pouch Turmeric Coffee Powder Multi Line Sachet Packing Machine
  • Multi-function 6/8/10/12 Small Pouch Turmeric Coffee Powder Multi Line Sachet Packing Machine
  • Multi-function 6/8/10/12 Small Pouch Turmeric Coffee Powder Multi Line Sachet Packing Machine

Multi-function 6/8/10/12 Small Pouch Turmeric Coffee Powder Multi Line Sachet Packing Machine

FOB Reference Price
Purchase quantity ()
Minimum order quantity
Payment
Get Quotes
Guangdong Feibin Machinery Group Co., Ltd
Guangdong Feibin Machinery Group Co., Ltd
China - Dongguan
Manufacturing and trade
Trade Capacity
Export Percentage
30-50%
Nearest Port
Shenzhen,Guangzhou,Zhuhai
Accepted Delivery Terms
FOB,CFR,CIF,EXW,DDP,Express,Delivery
Employees
201-300 people
Accepted Payment Currency
USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CNF
Average Lead Time
20 Day(s)
Certifications
CE
ISO9001
Product Details
Product SpecificationsProduct Description
Product Specifications
--
Product Description
Overview
Quick Details
Type:
Multi-Function Packaging Machine
Production Capacity:
40bag/min, 25bag/min, 50bag/min, 30bag/min
Applicable Industries:
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other
Weight (KG):
450, 450
Showroom Location:
Indonesia
Condition:
New
Function:
FILLING, Sealing
Application:
Food, Beverage, Commodity, Chemical, Tobacco
Packaging Type:
Stand-up Pouch, Bags, Pouch
Packaging Material:
Plastic, Paper, Wood
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380 V /3 Phases/ 50 Hz
Place of Origin:
Guangdong, China
Brand Name:
FK-SPEEDA
Warranty:
1 Year
Key Selling Points:
Multifunctional
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 Year
Core Components:
Motor, PLC
Type of machines:
Multi-Function Powder Packing Machine
Packing speed:
25-40cycle/min/lane
Supply Ability:
3 Set/Sets per Month
Certification:
CE ISO
After-sales Service:
Free spare parts, Field maintenance and repair service, Video te
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintena
Keyword:
Powder packing machine
Sealing type:
Three four Sides Sealing
Cutting type:
1.Straight cutting;2. Zig zag cutting 3. Round cutting;4. Die-cut
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Product Overview

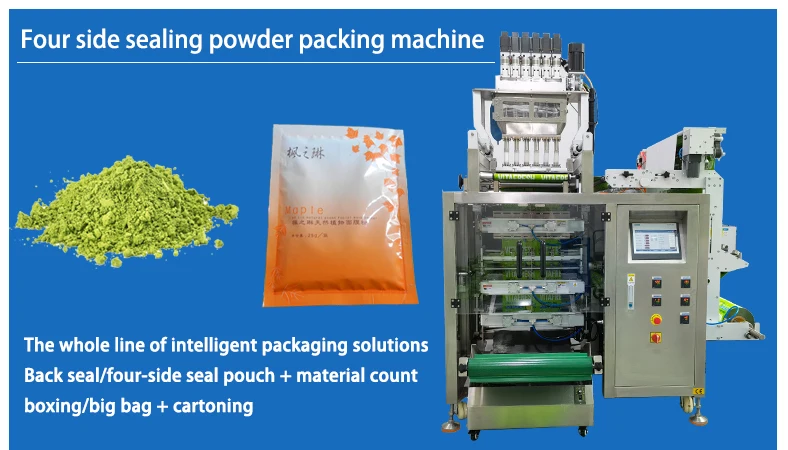

Automatic Four Side Sealing Powder Packing Machine

Suit for powder:Meal replacement powder, health care powder, seasoning powder, food powder, milk powder, nutrition powder
Multi-function 6/8/10/12 Small Pouch Turmeric Coffee Powder Multi Line Sachet Packing Machine from China supplier

Features

1. The outer sealing paper is controlled by stepping motor, the bag length is stable and the positioning is accurate;
2. Adopt PID temperature controller to control the temperature more accurately;
3. PLC is used to control the movement of the whole machine, man-machine interface display, easy to operate;
4. All accessible materials are made of SUS304 stainless steel to ensure the hygiene and reliability of products;
5. Some working cylinders adopt original imported parts to ensure the accuracy and stability of their work;
6. The additional device of this machine can complete the functions of flat cutting, date printing, easy tearing etc.
7. Ultrasonic and thermal sealing form can achieve linear incision, save the filling space inside the mounting ear, and reach 12g
packaging capacity;
8. Ultrasonic sealing is suitable for all non-woven packaging materials cutting, cutting success rate is close to 100%;
9. The equipment can be equipped with nitrogen filling device, date printing device and stirring device, etc.
PRODUCT SPECIFICATIONS
Model
FK500F
FK700F
FK980F
FK1200F
Lanes number
2-4lanes
3-6lanes
4-8lane
5-10 lane
Capacity
25--40 cut/lan Max.25-40cycle/min/lane
Bag size
L：45-160mm W:50-125mm
L：45-160mm W:50-125mm
L：45-160mm W:50-125mm
L：45-160mm W:50-125mm
Film width&thickness
Max.500mm,0.07--0.1mm
Max.700mm,0.07--0.1mm
Max.980mm,0.07--0.1mm
Max.1200mm,0.07--0.1mm
Measuring Method
1.short auger;2.short auger with cup
Sealing type
4 sides sealing
4 sides sealing
4 sides sealingg
4 sides sealing
Cutting type
1.Straight cutting;2. Zig zag cutting ;3 Continuous Cutting
Power supply
1N+PE/50HZ/AC220V/380V/2.8kw
1N+PE/50HZ/AC220V/380V/4.1kw
1N+PE/50HZ/AC220V/380V/5.5kw
1N+PE/50HZ/AC220V/380V/7.5kw
Air consumption
0.8 MPA 0.8m3/min
0.8 MPA 0.8m3/min
0.8 MPA 0.8m3/min
0.8 MPA 0.8m3/min
Dimension
950*1470*1750mm
1153*1654*1750mm
1415*1686*2130mm
2220*2210*2600mm
Weight
400kg
550kg
650kg
900kg
