Metal Pipe Automatic Circular Saw Cutting Machine
Metal Pipe Automatic Circular Saw Cutting Machine
Main Characteristics :
1. Two-way clamp, withour bur when sawing the material, withour powder and dust. High precision cutting.
2. The front setting water box design of the cooling system is more convenoent and easily cleaned.
3. Iron chipping is treated together, looks more tidy.
4. Feeding and retreating automatically.
5. Using the microcomputer controller, easily operating and maintance.
6. Floating feeding system increase work efficiency than before and will protect the surface of the material from being scratched.
7. Digital display can keep the cutting length more accurate and fast.
8. The clamp pressure can be adjusted at will, to ensure the material will not be damaged during cutting.
9. Equipped with electronic-type saw blade protection device. The machine stops automatically when the blade is blunt.
Parameters :
| Model | JC-325-3A | |
| Head rotating angle | 90° | |
| Cutting capacity area | Solid bar | 55mm |
| Round tube | 110mm | |
| Angle steel | 100mm×100mm | |
| Square tube | 95mm×95mm | |
| Through-shaped steel | 100mm×100mm | |
| Retangular steel | 90mm×110mm | |
| Host motor | 2.4KW/2.0KW-2/4P | |
| Spindle speed | RPM 100/50 | |
| Cooling pump motor | 1/8HP | |
| Compressed air pressure | 4-6kgs/cm2 | |
| Circular saw blade(Diameter) | 250mm-350mm | |
| Feeding length | 3mm-650mm(Standard),can feed three times,total 1950mm | |
| Machine weight | 700kg | |
| Machine dimension(L×W×H) | 1000×1650×1700 | |
| Standard fittings | HSS Saw blade 275mm | |
| HSS Saw blade,one scale,one tool box,one set of clamping mould | ||

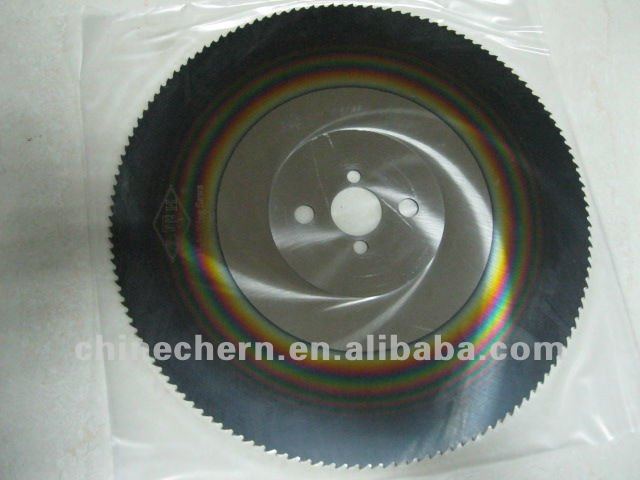

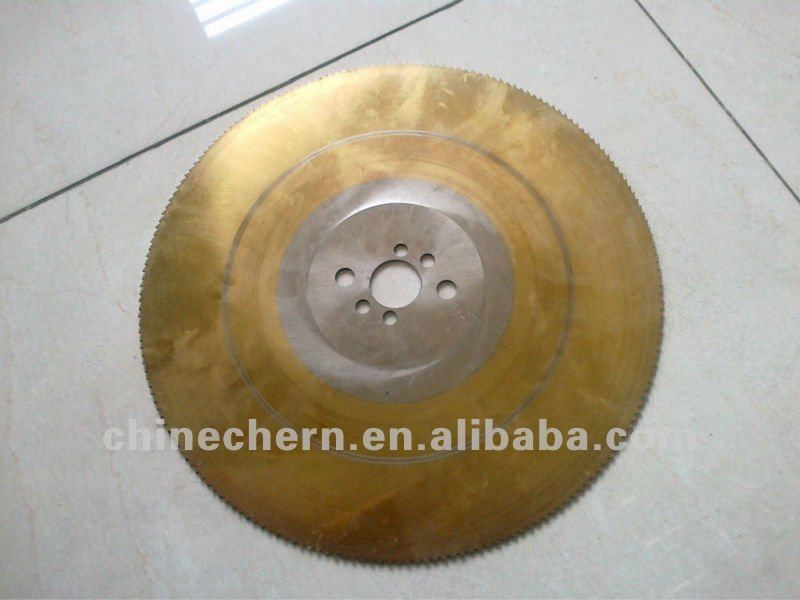

HSS Saw Blade :

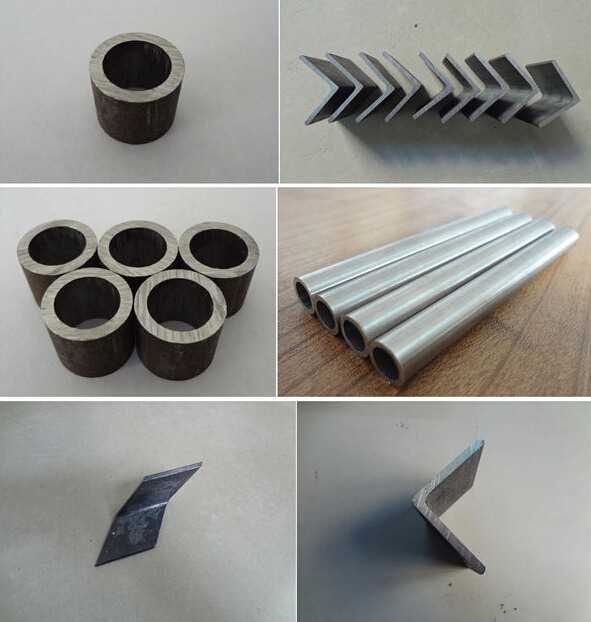

Metal Pipes :

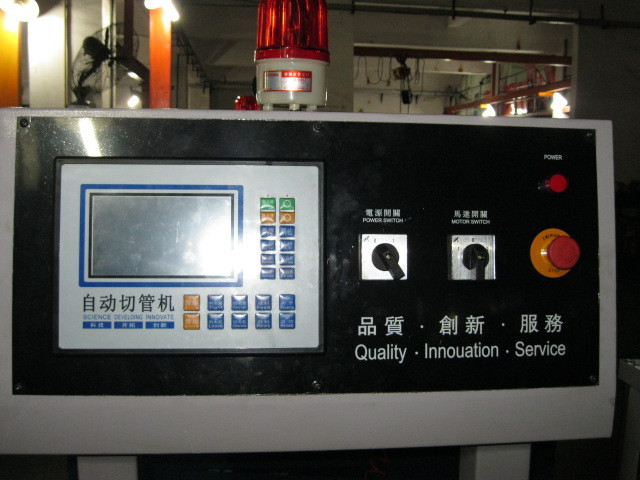

Panel :

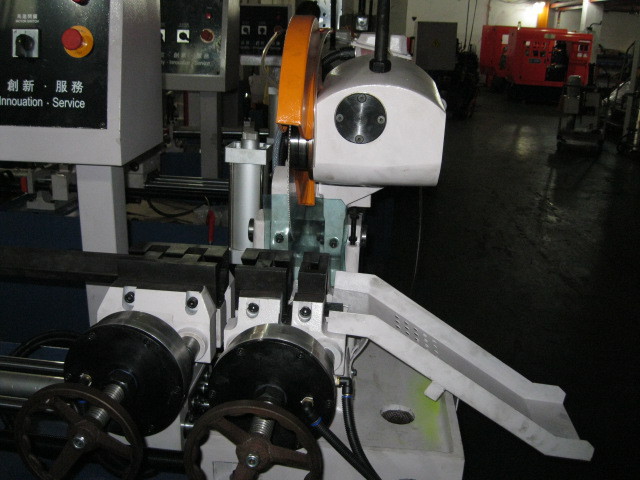

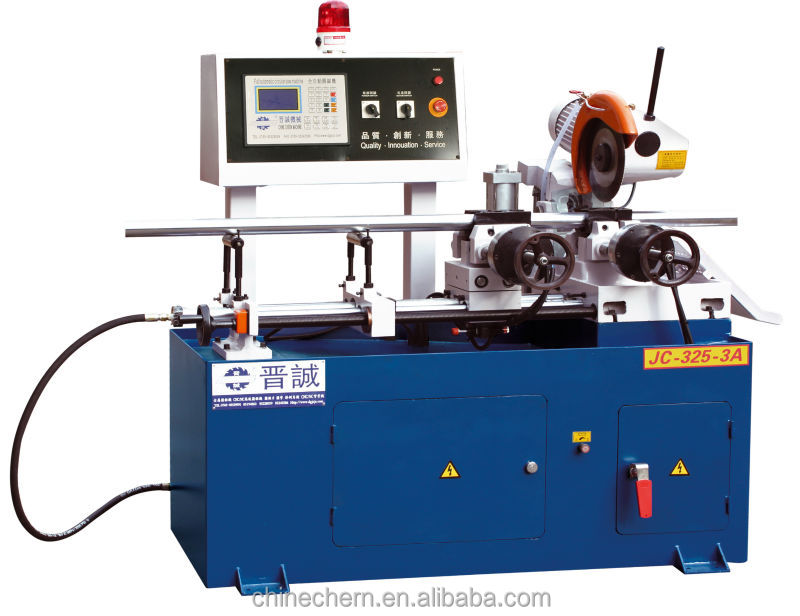

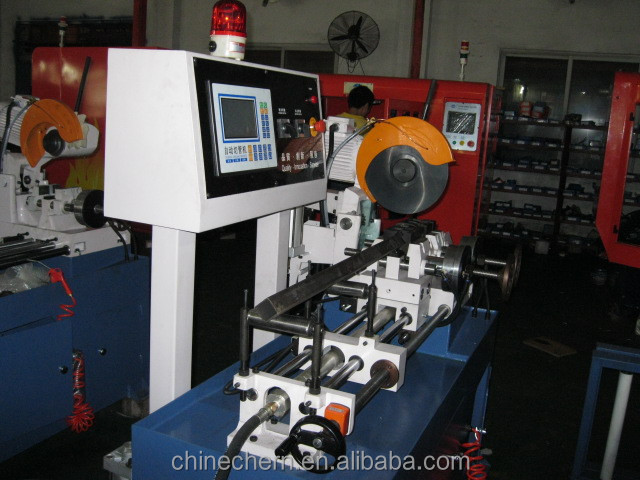

Machine Picture :
