JNDWATER Plastic Bag Aseptic Sealing Machine With 2 Head

The JNDWATER equipment is applicable to the aseptic filling of concentrate fruit juice, milk, cocunut milk,tomato paste, onion paste, chili paste, strawberry paste, blackberry paste, carrot paste, peach paste, apricot paste, concentration juice.

Features

1.Filling head, automatic electric weighing sensor system; control system of sterilizing, cleaning; separate automatic control system which connects with the CIP device; self-diagnosis system; The control panels is OP and PLC which can realize the material conveying, signal conversion. The control component is SIEMENS. The power supply is 380V, 50HZ.

2.Put the bag into the two clamps by hand. Sterilize the cap by steam, open the cap, fill and seal in the aseptic filling chamber and the whole operation is automatic and controlled by computer.

3.PLC automatic control, touch screen to do parameter setting,

4.The filling volume of the bag is controlled by imported flow meter or electric weighing sensor. It is separate from this offer. Connection with sterilizer.

5.The aseptic filling machine is used for the filling of liquid and semi-ropy concentration products. The filling head can be one or two according to the required capacity.

6. The filling chamber can keep the aseptic temperature95℃ to guarantee the aseptic environment during the filling process.

7.Sterilizer the cap&spout of the bag and the filling chamber by means of steam spryaing.

8.The machine is composed of control system, filling head, bag nozzle fixed pincers, lid opening pincers, lid close pincers, inspection window and lifting platform.

9.When it reaches the setting volume, filling machine can seal the lid automatically.

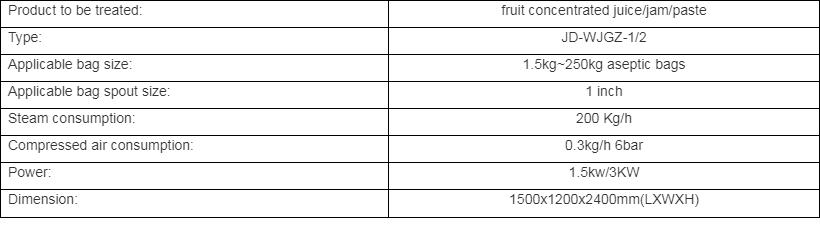

Technical Parameters

Product advantages

Electronic component come from famous manufacturers all over the world ,such as Omron,Siemens and so on.

Product by CE standard.

Stainless steel 304

Our Service

After the machines arrives at the customer's factory, our company can arrange engineers to customer's factory to install and debug the equipment,  make the machines run to the best working condition;the engineers also  can train customer's staff about how to operation and maintenance of the equipment, customers also can arrange their engineers to study in our  factory for free . During the warranty period,we provide the easy damage parts for free.
