Injection Automatic Semi Plastic Stretch Blow Molding Machine
china suppliers low price auto single stage one step small mini pet plastic stretch bottle blow molding / moulding machine
 | PLEASE FEEL FREE TO CONTACT US! | |||
 | +86 139 5244 7308 | |||
 | faygocn |  | faygoplastchina | |
| 3256762800 | +86 512 56762808 | |||
 | ||||

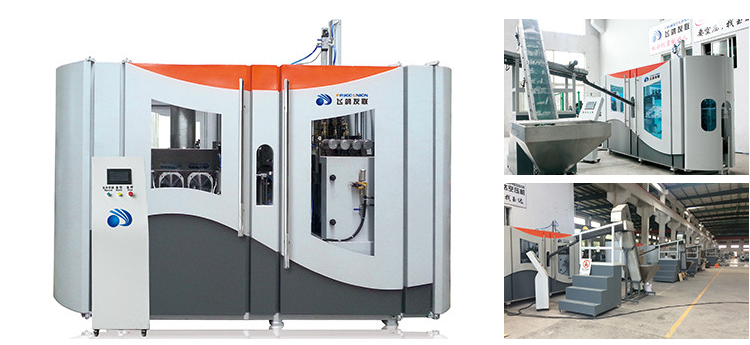

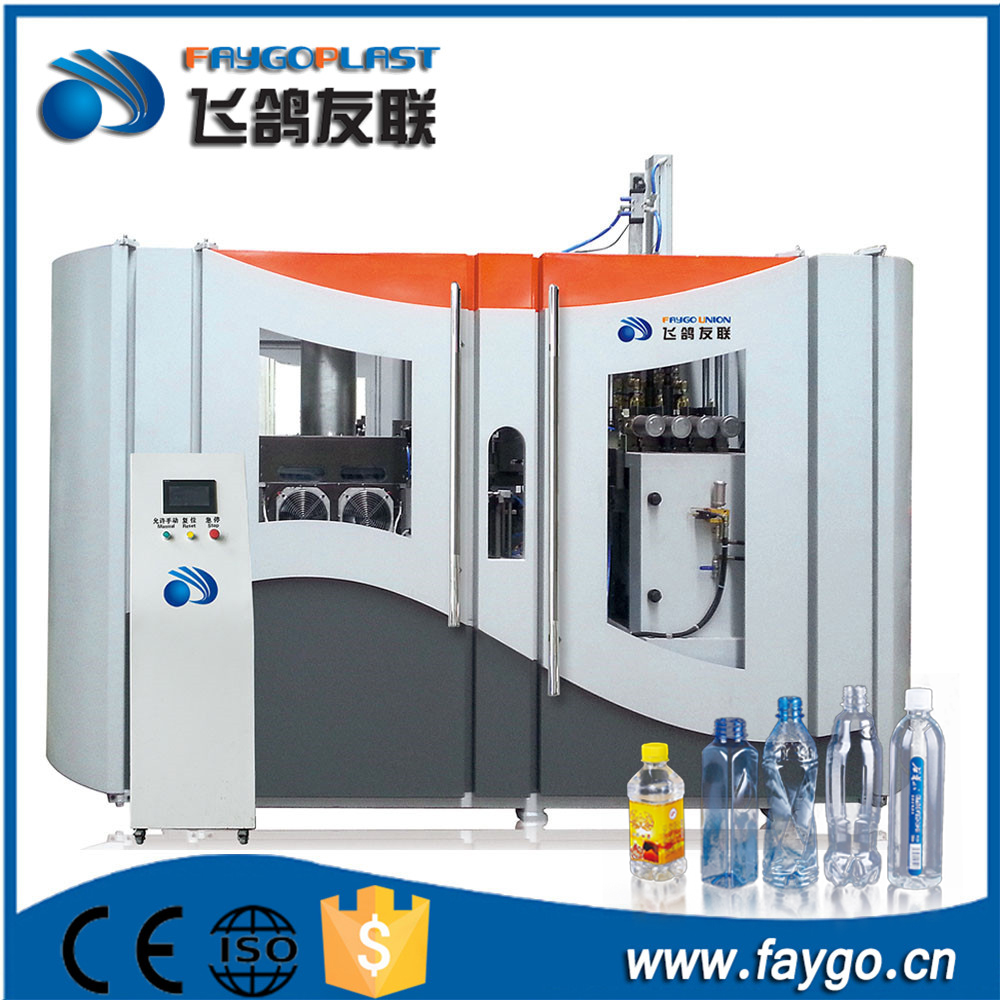

SMART series of blowing machine fills the gaps in field of domestic high-speed linear blowing machine currently.It has our own intellectual property rights, and has obtained more than 13 national patents. This machine is equipped with automatic perform loading and bottle unloading system. It is applicable for all shapes of drinking water bottles, carbonated bottles and hot filling bottles. FG4 is composed of three modules: preform elevator, preform unscrambler and host machine.
| Technical parameters | ||||
| Type | FG4 | FG6 | FG8 | |
| Bottle Specifications | Mould number(piece) | 4 | 6 | 8 |
| Max capacity(BPH) | 6500-7200 | 9000-10000 | 12000-13000 | |
| maxi volume (mL) | 2000 | 2000 | 2000 | |
| maxi height (mm) | 328 | 328 | 328 | |
| maxi diameter (mm) | 105 | 105 | 105 | |
| preform Specifications | Suitable inner bottle neck (mm) | 20-25 | 20-25 | 20-25 |
| preform max length (mm) | 150 | 150 | 150 | |
| Electricity | Total installation power (kw) | 51 | 51 | 97 |
| Voltage / frequency (V / Hz) | 380v,50hz | 380v,50hz | 380v,50hz | |
| Air compressor | Pressure(bar) | 30 | 30 | 30 |
| Capacity(m³/min) | 4-6 | 4-6 | 4-6 | |
| Mold water | pressure(bar) | 4-6 | 4-6 | 4-6 |
| Suitable temperature range (℃) | 6-13 | 6-13 | 6-13 | |
| Flow (L / min) | 45 | 45 | 45
| |
| Oven water | pressure(bar) | 4-6 | 4-6 | 4-6 |
| Suitable temperature range (℃) | 6-13 | 6-13 | 6-13 | |
| Flow (L / min) | 22 | 22 | 22 | |
| Machine Specification | host machine dimension (m) (LxWxH) | 3.3X1.2.3 | 4.3X1X2.3 | 4.8X1X2.3 |
| Weight (Kg) | 3200 | 4000 | 4500 | |

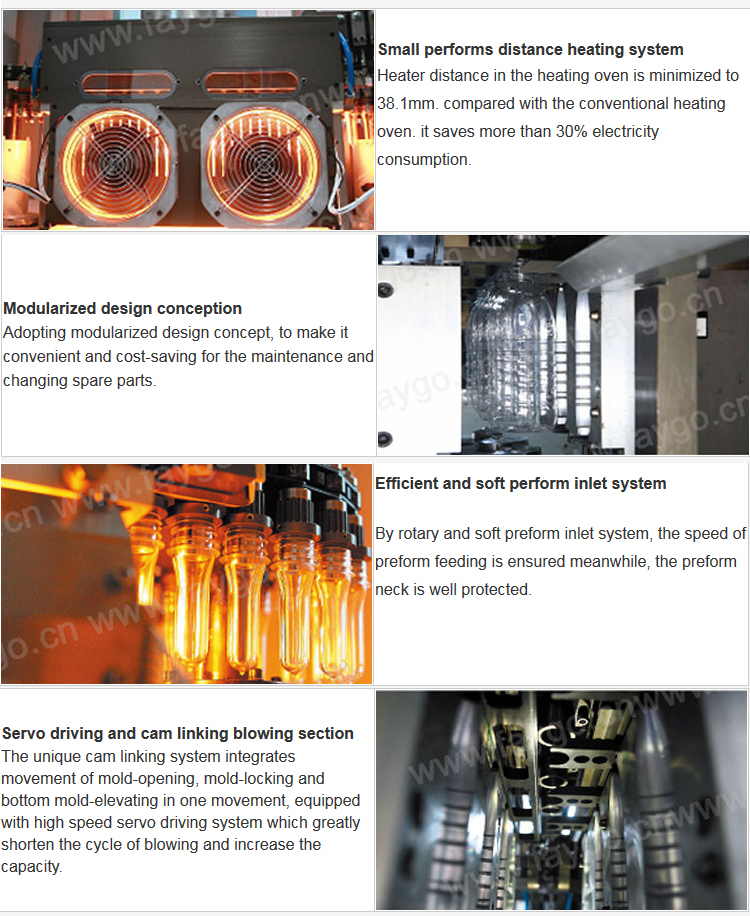

Main Features
One Stop Station Services
2) 1 year warranty. During warranty, we provide free of charge for repairing cost.
3) Lifetime maintenance. After-sales department can provide life long maintenance service.
Delivery time:
60 days After payment
FAYGO UNION GROUP has 3 branch factories. One is FAYGOBLOW which design and make blow molding machine for PET, PE etc. FAYGOBLOW has 5 patents of invention, and 8 patents utility models. FAYGO PET blow molding machine is one of fastest and most energy-efficient design in the world. Second factory is FAYGOPLAST, which make plastic extrusion machinery, including plastic pipe extruding line, plastic profile extruding line. Especially FAYGOPLAST can supply high speed up to 40 m/min PE,PPR pipe line. Third factory is FAYGO RECYCLING, which research new technology in plastic bottle ,film recycling processing and pelletizing. Now FAYGO RECYCLING can make up to 4000kg/hr. PET bottle washing line, and 2000kg/hr plastic film washing line.

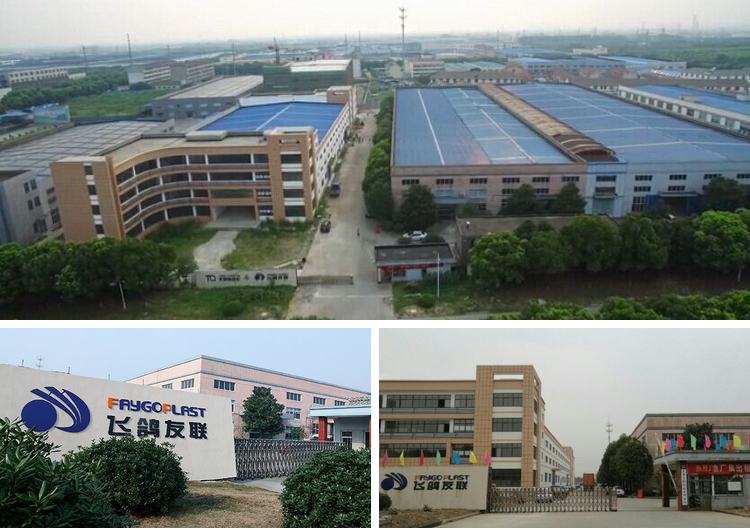

Our factory is located in Zhangjiagang city, covers an area of 26,650 square meters. It only takes around two hours driving from SHANGHAI international airport. Welcome to visit our factory, and hope to cooperate with you in the near future.
 |  |  |
