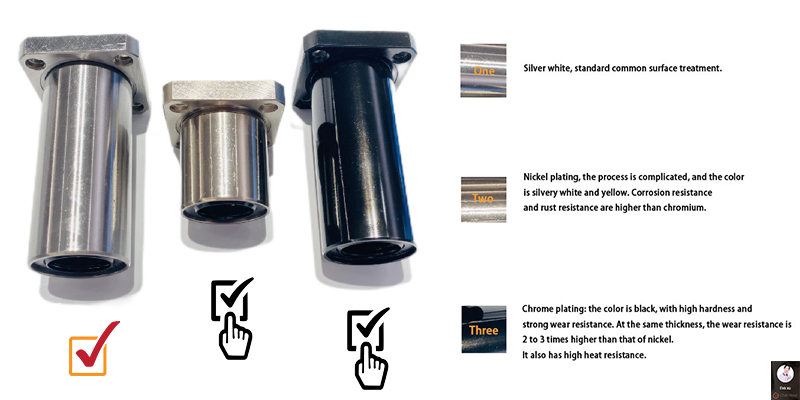

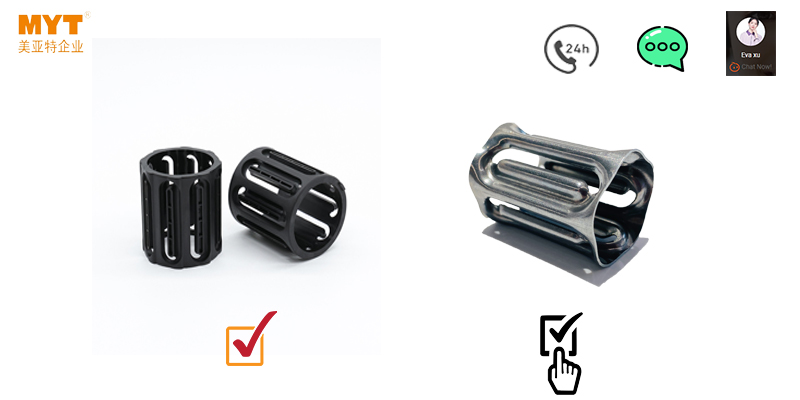

We can produce from 3-200mm. and this type can meet the basic requirements for the use of bearings. Besides, our products can be selected resin retainer and steel retainer, also have many surface plating technology.If you need to consult for details, please click Consult.
Welcome to TradeChina

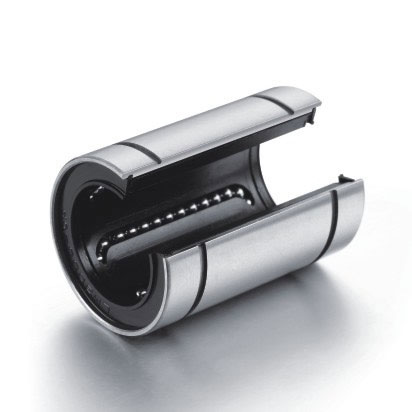

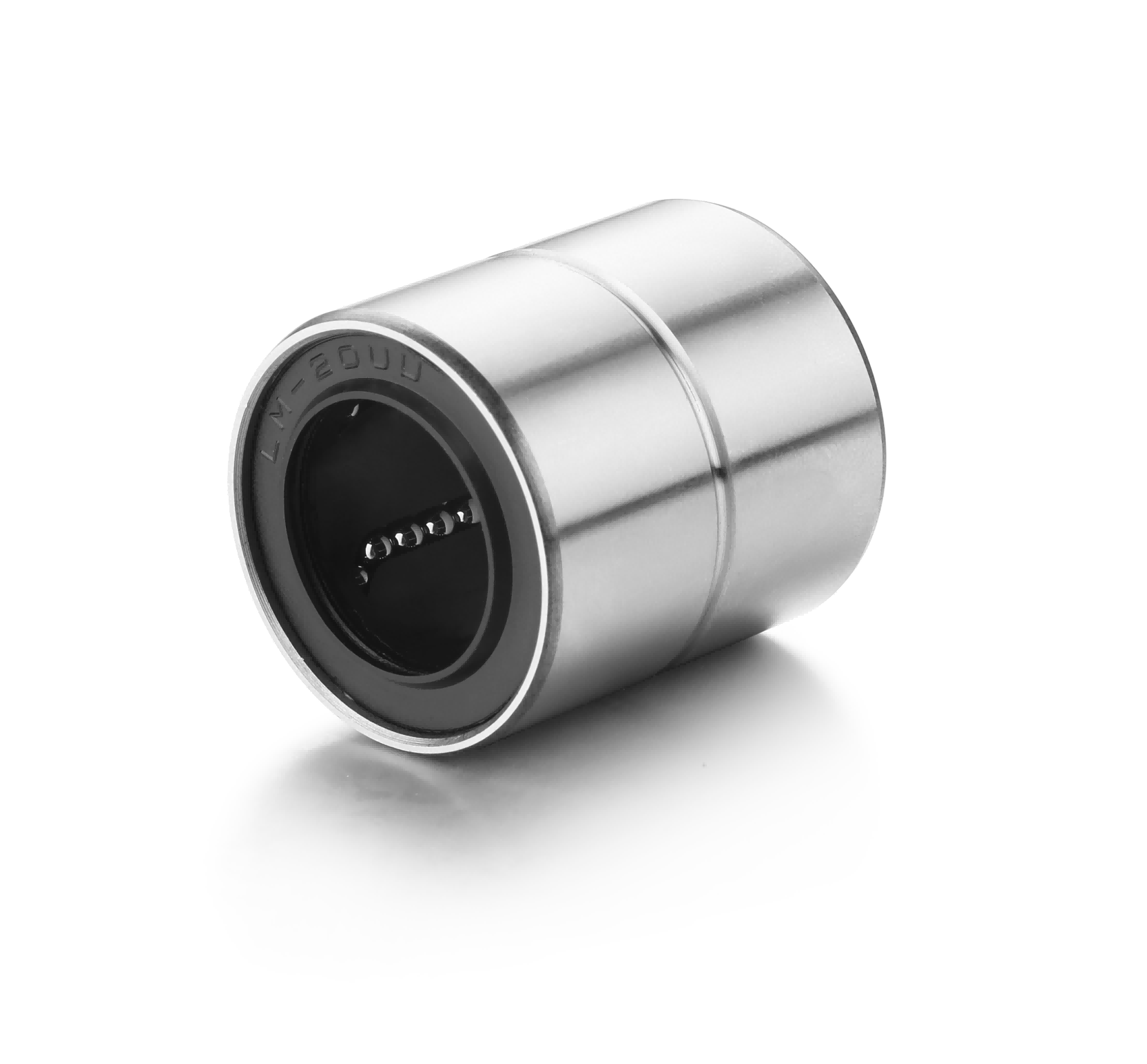

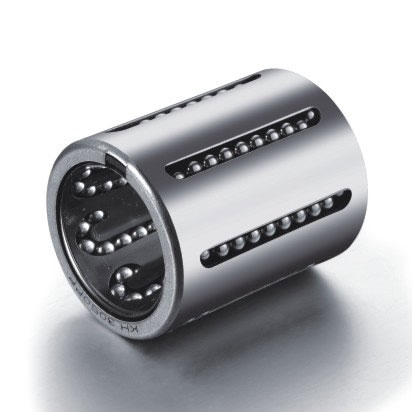

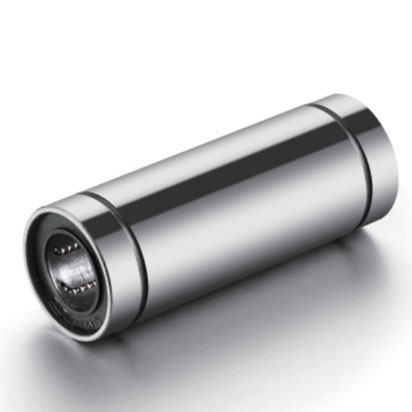

Industrial Bearing LM100UU Standard Type Linear Motion Ball Bearing Seals On Both Side High Precision,Rigidity Resin Retainer
FOB Reference Price
Purchase quantity ()
Minimum order quantity
Payment
NINGBO MIKATE TRANSMISSION TECHNOLOGY CO ., LTD.
China - Ningbo
Manufacturing and trade
Trade Capacity
Export Percentage
0-30%
Nearest Port
NINGBO,SHANGHAI,GUANGZHOU
Accepted Delivery Terms
FOB,CIF,EXW,DDP,Express,Delivery
Employees
5-10人
Accepted Payment Currency
USD,CNY
Average Lead Time
20 Day(s)
Certifications
Product Specifications
--Product Description
Products Description
LM100UU
This is LM100UU link.Its inner diameter is 100mm. Provide tolerance fit service.

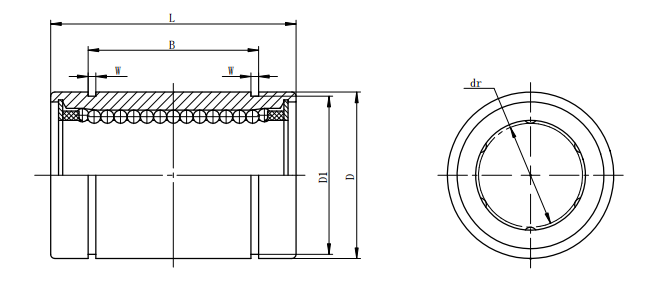

Diameter Size (Nominal Shaft Diameter ) | 100mm | |||||
Ball circuit | 6 | D | 150mm | |||
Net weight | 8600g/pc | D of tolerance | 0 μm ~ -25μm | |||
dr | 100mm | L | 175mm | |||
dr of tolerance (precision) | 0μm ~ -10μm | L of tolerance | 0 μm ~ -400μm | |||
dr of tolerance (standard) | 0μm ~ -20μm | B | 125.5mm | |||
W | 4.15mm | B of tolerance | 0 μm ~ -400μm | |||
D1 | 145mm | θ | 50° | |||
h | 3mm | h1 | 50 | |||
Eccentricity（precision） | 20μm | Basic load rating (Dynamic C N) | 14100 | |||
Eccentricity（standard） | 30μm | Basic load rating (Static Co N) | 34800 | |||
Radial clearance (max) | -20μm | * Customization and logo carving services are available. | ||||
