High Quality 5L Pet Blow Molding Semi Automatic Bottle Blowing Machine
Brief introduction

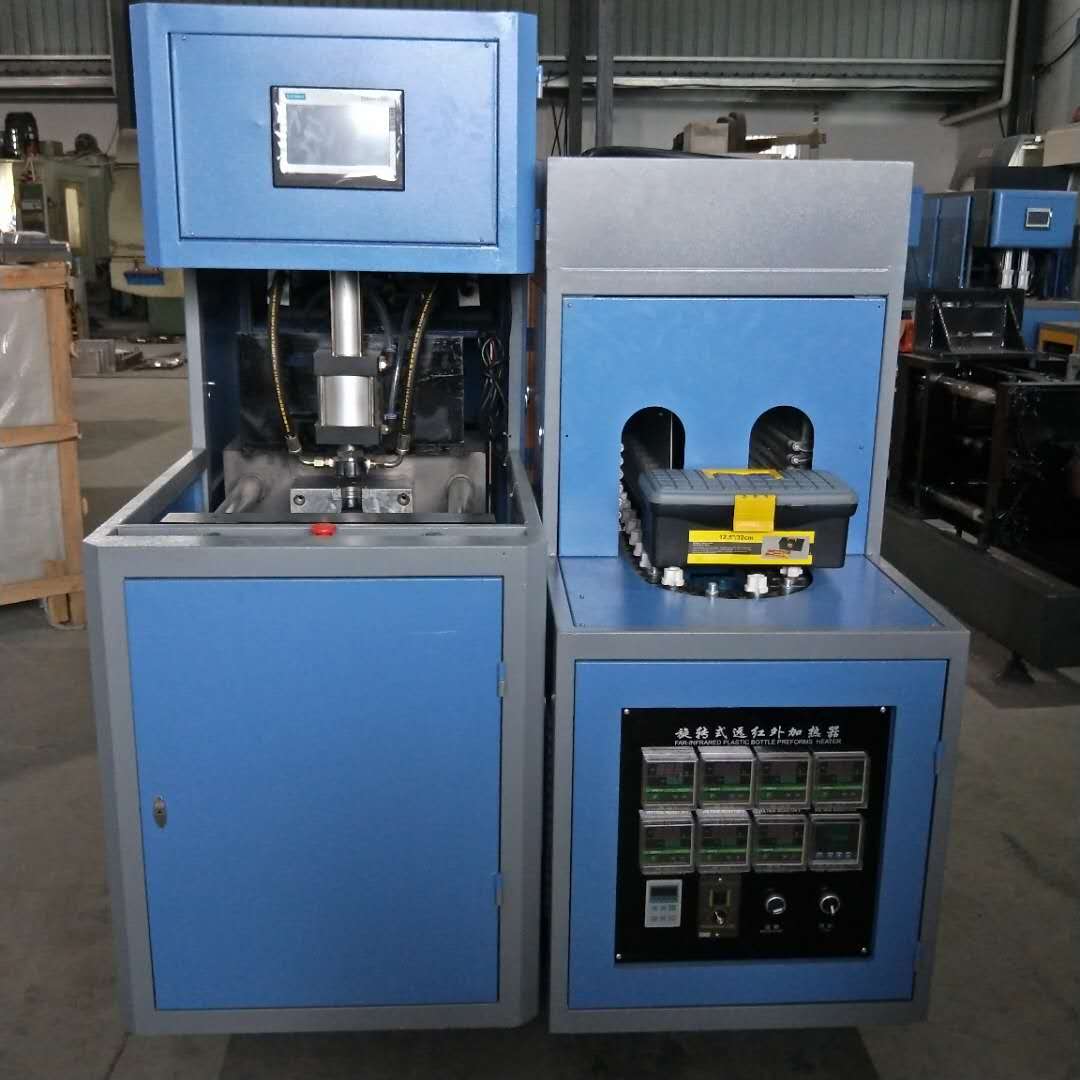

FG-C semi-automatic stretch bottle blow molding machine is suitable for making 0.1-6L PET bottles.
Adopting double crank to adjust mould, heavy locking mould, stable and fast,Adopt infrared oven to heat the preform, the preform rotated and heated equally.
The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
2. Technical parameter
Type | Item | Unit | Parameter |
Container | Product material | / | PET |
Volume | L | 0.1-6 | |
Theoretical output | pcs/h | 350-500 | |
Max.neck diameter | mm | 120 | |
Max.container diameter | mm | 200 | |
Max.container height | mm | 350 | |
Moulding | Max.mould plate Dimenstion (L x W) | mm | 400*420 |
Max.mould thickness | mm | 280 | |
Clamping force | KN | 160 | |
Mould opening stroke | mm | 230 | |
Machine size and weight | Main machine (L x W x H) | m | 1.67*0.62*1.65 |
Main machine weight | Kg | 750 | |
Heater (L x W x H) | m | 1.72*0.6*1.37 | |
Heater weight | Kg | 230 | |
Max.heating power | kw | 15 |
Spare parts:
Components Name | Brand | Origin |
PLC | DELTA | Taiwan |
Cylinder | MOHE | Joint,Japan |
Blowing valve | Parker | Italy |
Acting Valve | ARK | Korea |
Photoelectric | Switch | korea |
Silencer | AIWITCO | American |
Fan |
| Germany |
Voltage regulating gauge | AIRTAC | Taiwan |
Rotate cylinder | SMC | Japan |
Machine hands |
| Korea |
Payment Method
30% by T/T as down payment, 70% by T/T paid before delivery.
2 Mechanical Warranty
One year warranty and come with at least one year recommended spare parts.
Packaging requirement:
1) The special packaging box is according to the immunity standard in China,it suits for long-distance transport, damp proof, rustproof, land way and seaway
2) Transportation ways: Sea transportation
