Faygo Union Fully Automatic High Speed Plastic Water Bottle Stretch Blow Molding Machine
FOB Reference Price
Purchase quantity ()
Minimum order quantity
Payment
Jiangsu Faygo Union Machinery Co., Ltd.
China - Suzhou
Manufacturing and trade
Trade Capacity
Export Percentage
70-90%
Nearest Port
Shanghai,Ningbo
Accepted Delivery Terms
FOB,CIF,EXW
Employees
201-300 people
Accepted Payment Currency
USD,EUR,CNY
Average Lead Time
45 Day(s)
Certifications
Product Specifications
--Product Description
Product Description

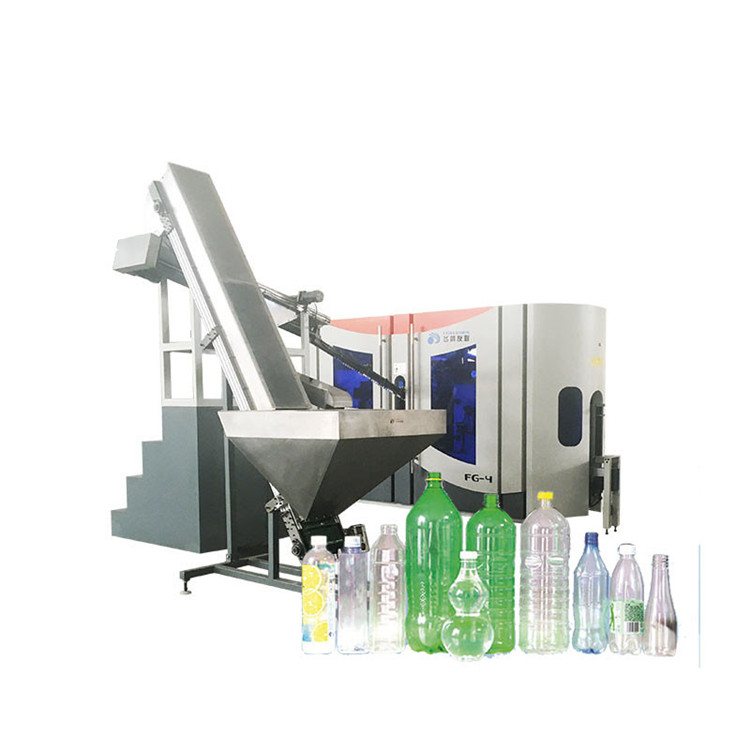

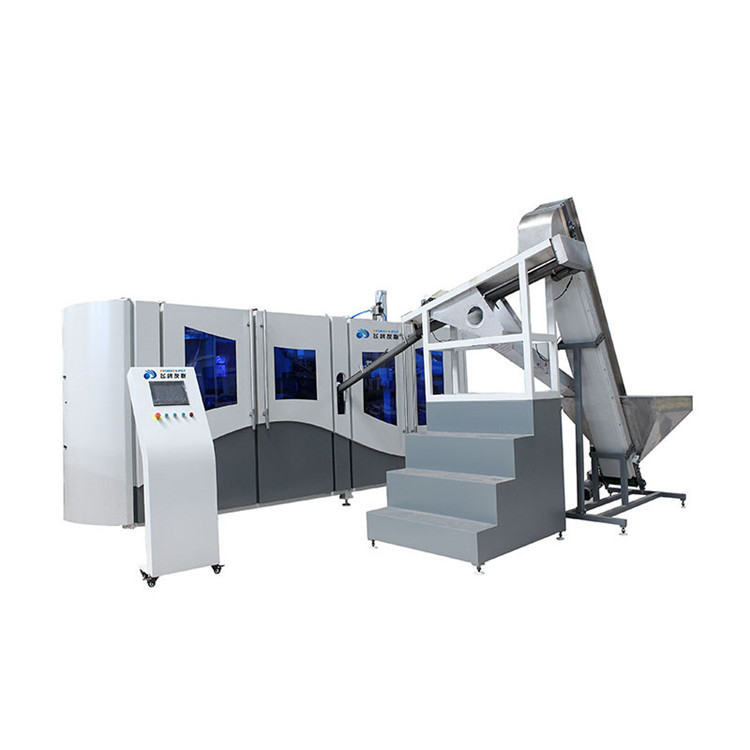

SMART series of blowing machine fills the gaps in field of domestic high-speed linear blowing machine currently.It has our own intellectual property rights, and has obtained more than 13 national patents. This machine is equipped with automatic perform loading and bottle unloading system. It is applicable for all shapes of drinking water bottles,carbonated bottles and hot filling. FG4 is composed of three modules: preform elevator, preform unscrambler and host machine.
Why Choose Us
When it comes to bottling drinks production, 70% energy occurs at the blower. We understand that every grams of PET material you save and every electrictiy watt you reduces can turn into massive return in the future.
Smart Process
Up to 45% less by heating
up to 30% less by air
Smart Maintain
Up to 20 mins change mold
Up to 80% less maintain cost
Smart Result
Up to 99.9% qualified rate
Smart Process
Up to 45% less by heating
up to 30% less by air
Smart Maintain
Up to 20 mins change mold
Up to 80% less maintain cost
Smart Result
Up to 99.9% qualified rate
Specification
Type | FG4 | FG4 |
Bottle Specifications | Mould number(piece) | 4 |
Max capacity(BPH) | 6500-8000 | |
maxi volume (mL) | 2000 | |
maxi volume (mL) | 328 | |
maxi diameter (mm) | 105 | |
Machine Specification | host machine dimension (m) (LxWxH) | 3.8X1.3X2.3 |
Weight (Kg) | 3500 |
Step to stop blower
1.Off “preform enter” and “preform loading”
2.After there is no proform inside the machine, off “heating” and “blowing”
3.Turn off water chiller, let the machine run 5 minutes with outpreform, then off “start” and “servo”
4.Turn off air compressor, air dryer, turn offer air inlet valve, exhaust the air inside the machine
5.Turn off the power, clean the machine and working place.

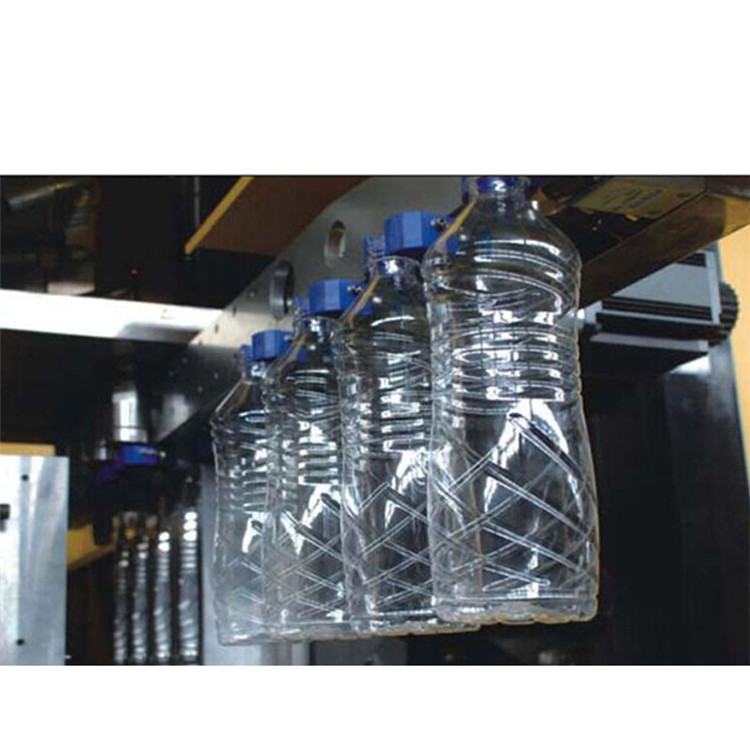

Details Images

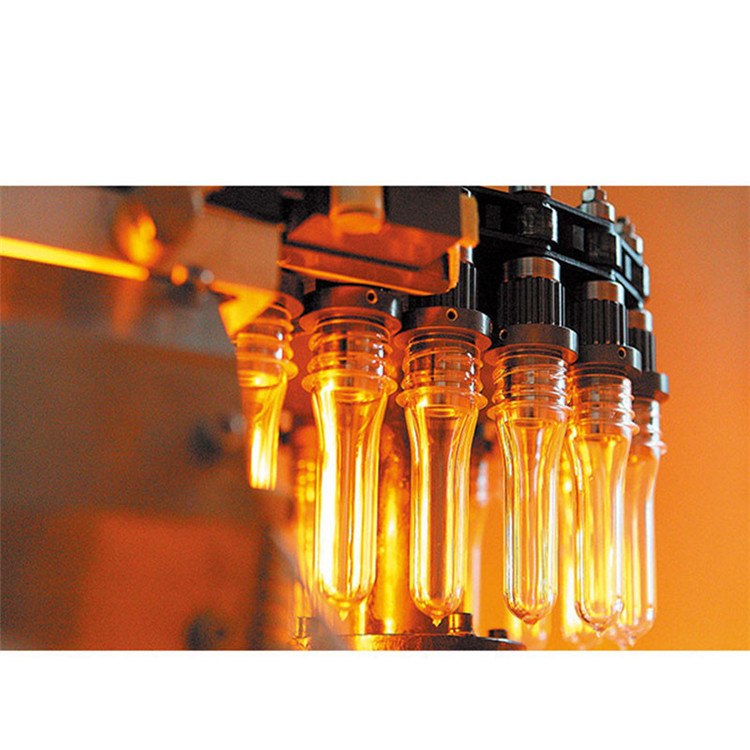

Heater distance in the heating oven is minimized to 38.1mm, compared with the coventional heating oven, it saves more than 30% eletricity consumption.

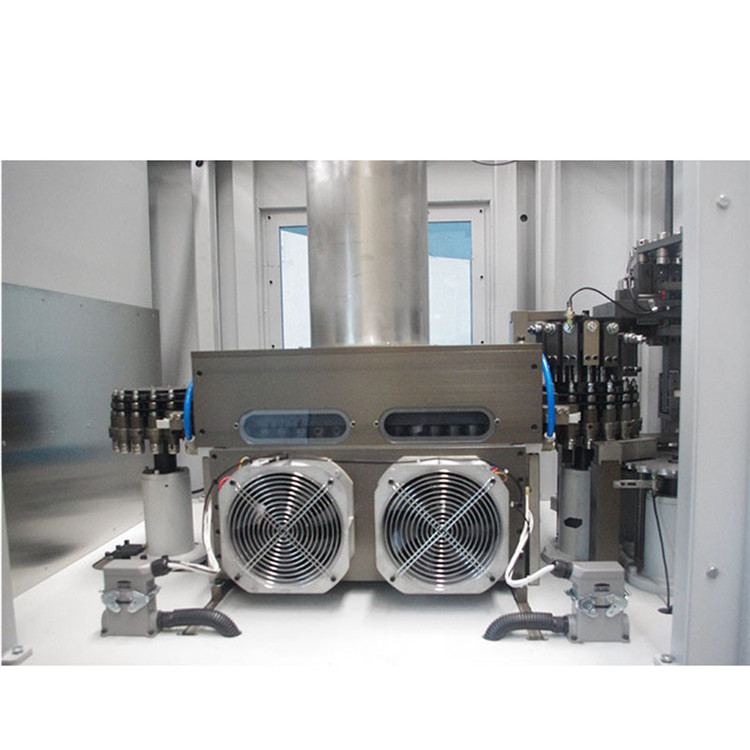

Equipped with the air cycling system and redundantheat discharge system, it ensures the constant temperature in the heating zone.

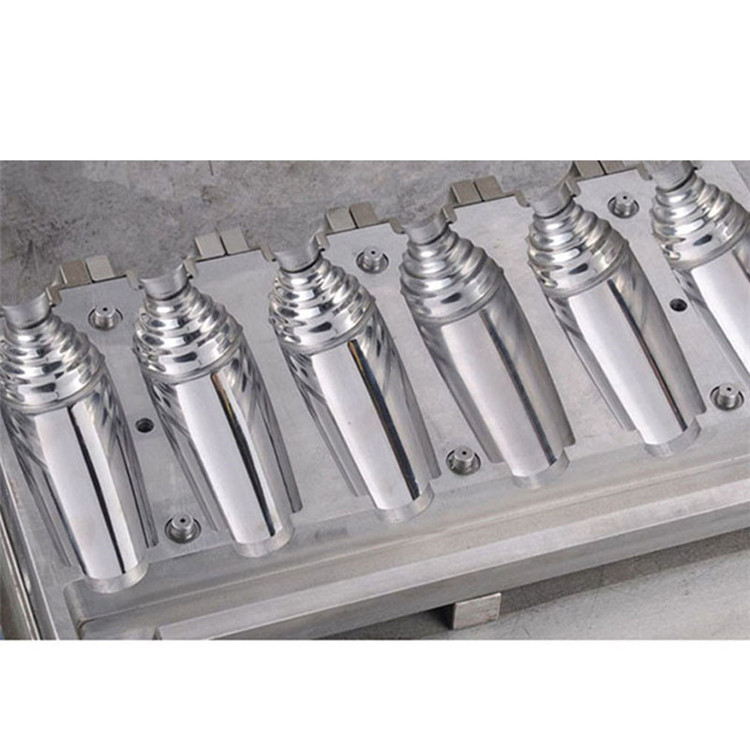

Up to 20 mins change mold
What if you change mold like open&close a draw? With our special qiuck-mold-change-design, mold can find position itself.
The machine adopts modularized design concept to make it convenient and cost-saving for the maintance and changing changeovers. To change mold only need 30 minutes.

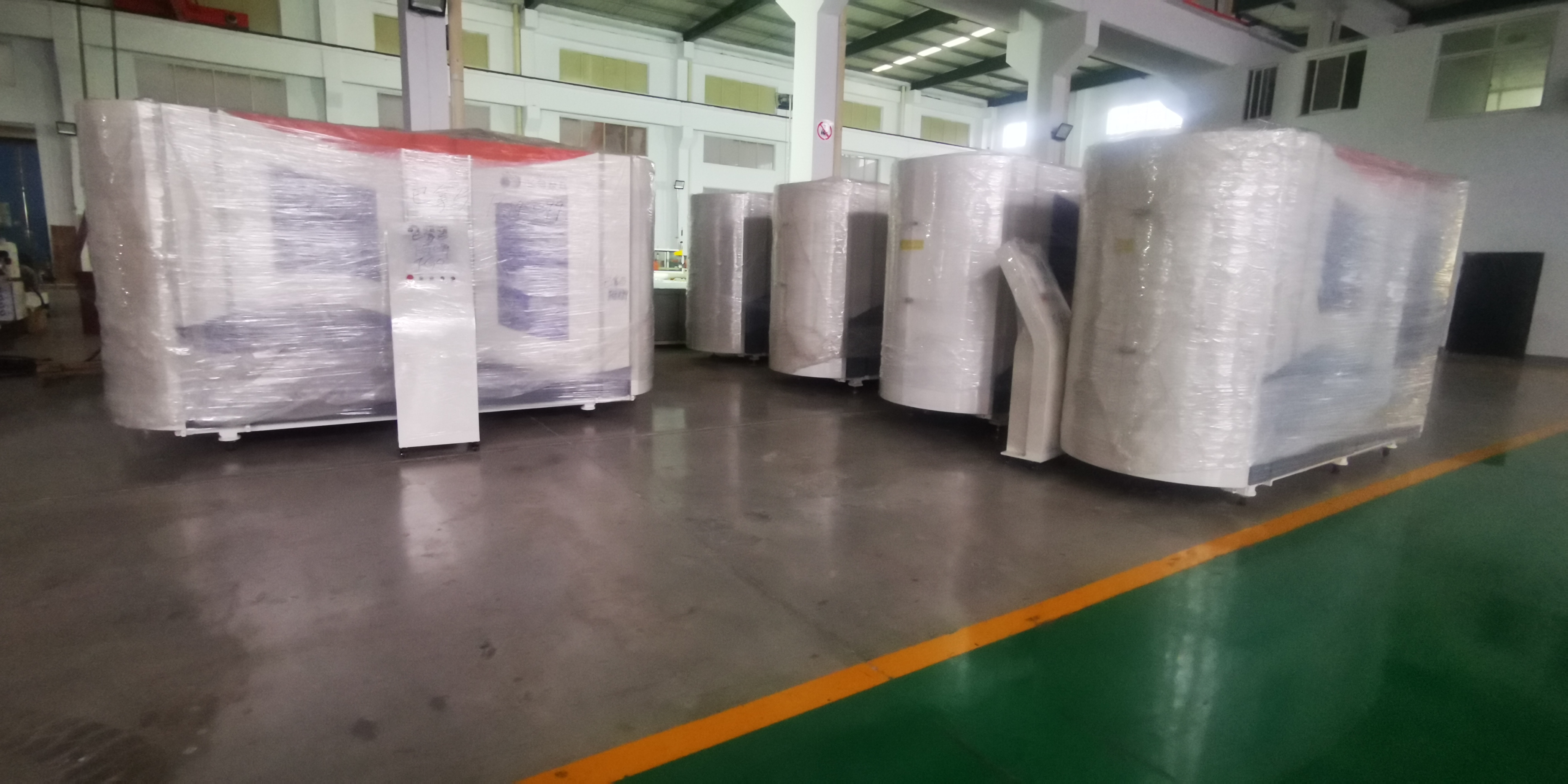

Packing & Delivery

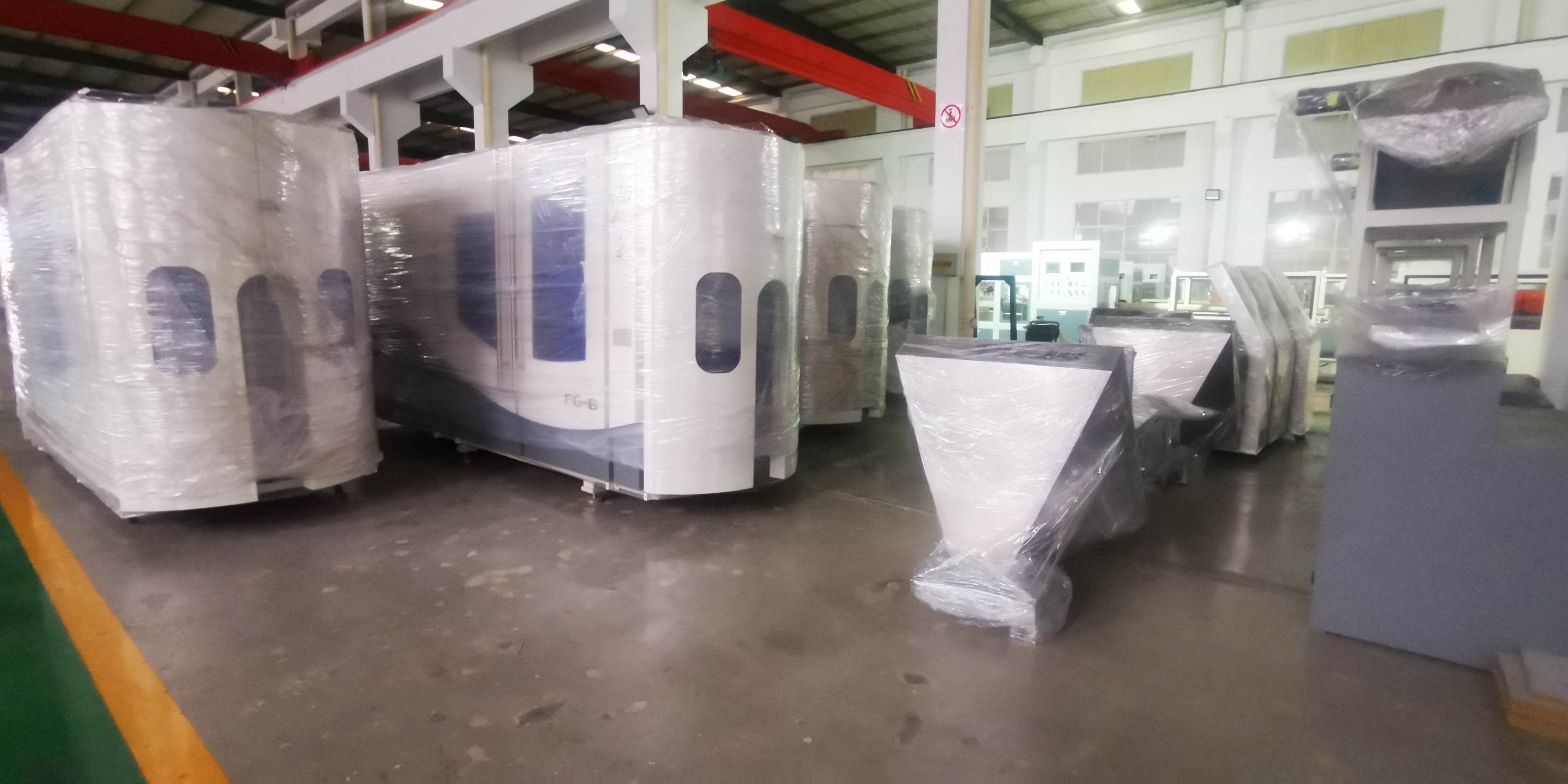

Packing by film or wooden cases
Related Products

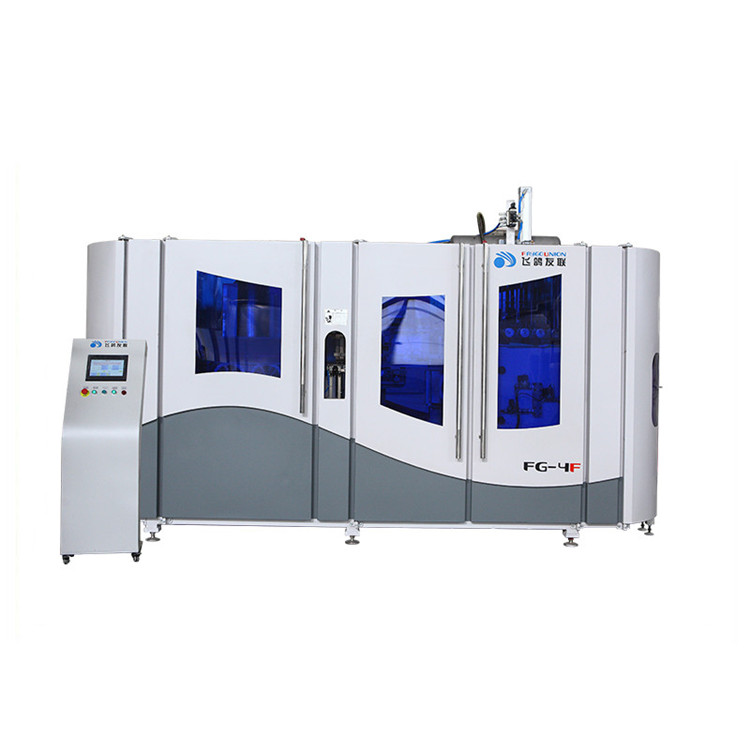

MODEL: FG4F
Cavity number:4
Operation speed: 4000-4500BPH
Operation power:28kw
MODEL: FG6
Cavity number:6
Operation speed: 9000-10000BPH
Operation power:30kw
MODEL: FG8
Cavity number:8
Operation speed: 12000-13000BPH
Operation power:45kw
Company Profile
FAYGO UNION GROUP has 3 branch factories. One is FAYGOBLOW which design and make blow molding machine for PET, PE etc. FAYGOBLOW has 5 patents of invention, and 8 patents utility models. FAYGO PET blow molding machine is one of fastest and most energy-efficient design in the world. Second factory is FAYGOPLAST, which make plastic extrusion machinery, including plastic pipe extruding line, plastic profile extruding line. Especially FAYGOPLAST can supply high speed up to 40 m/min PE,PPR pipe line. Third factory is FAYGO RECYCLING, which research new technology in plastic bottle ,film recycling processing and pelletizing. Now FAYGORECYCLING can make up to 4000kg/hr. PET bottle washing line, and 2000kg/hr plastic film washing line. Now FAYGO UNION GROUP has more than 500 customers from different countries, including UK, Spain, Germany, Norway, Switzerland,Italy, Turkey Russia etc. from Europe ,and America, Canada, Mexico, Brazil, Venezuela, Chilly etc from America, and Saudi Arabia, Syria, India, Thailand, Indonesia etc. from Asia, and many customers from Africa.Our factory is located in Zhangjiagang city, covers an area of 26,650 square meters. It only takes around two hours driving from international airport. Welcome to visit our factory, and hope to cooperate with you in the near future.
Our patents
Drive holder for blow molding machine of blowing machine | Blowing device for blow molding machine | Bottle blank handling device for blow molding machine | The Opening and Closing Device of the f a Bottle Blower |
