Faygo Union Full Automatic Plastic Pot Plastic Chair Making Blow Molding Machine
FOB Reference Price
Purchase quantity ()
Minimum order quantity
Payment
Jiangsu Faygo Union Machinery Co., Ltd.
China - Suzhou
Manufacturing and trade
Trade Capacity
Export Percentage
70-90%
Nearest Port
Shanghai,Ningbo
Accepted Delivery Terms
FOB,CIF,EXW
Employees
201-300 people
Accepted Payment Currency
USD,EUR,CNY
Average Lead Time
45 Day(s)
Certifications
Product Specifications
--Product Description

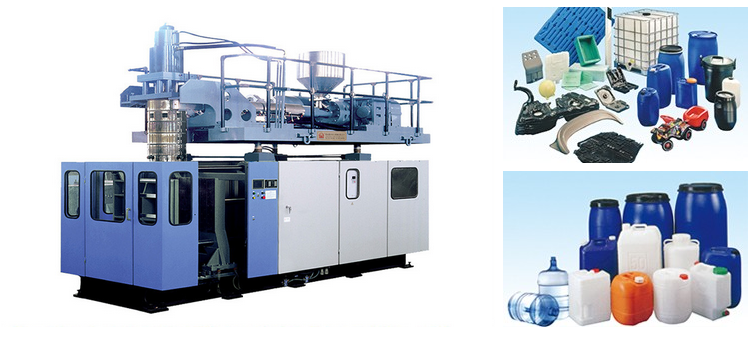

Faygo Union Blowing Machine
Products Description
It is suitable for producing plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc. Beverage bottle, cosmetic bottle, medicine bottle, jar,drum ,Tool kit , plastic model etc.

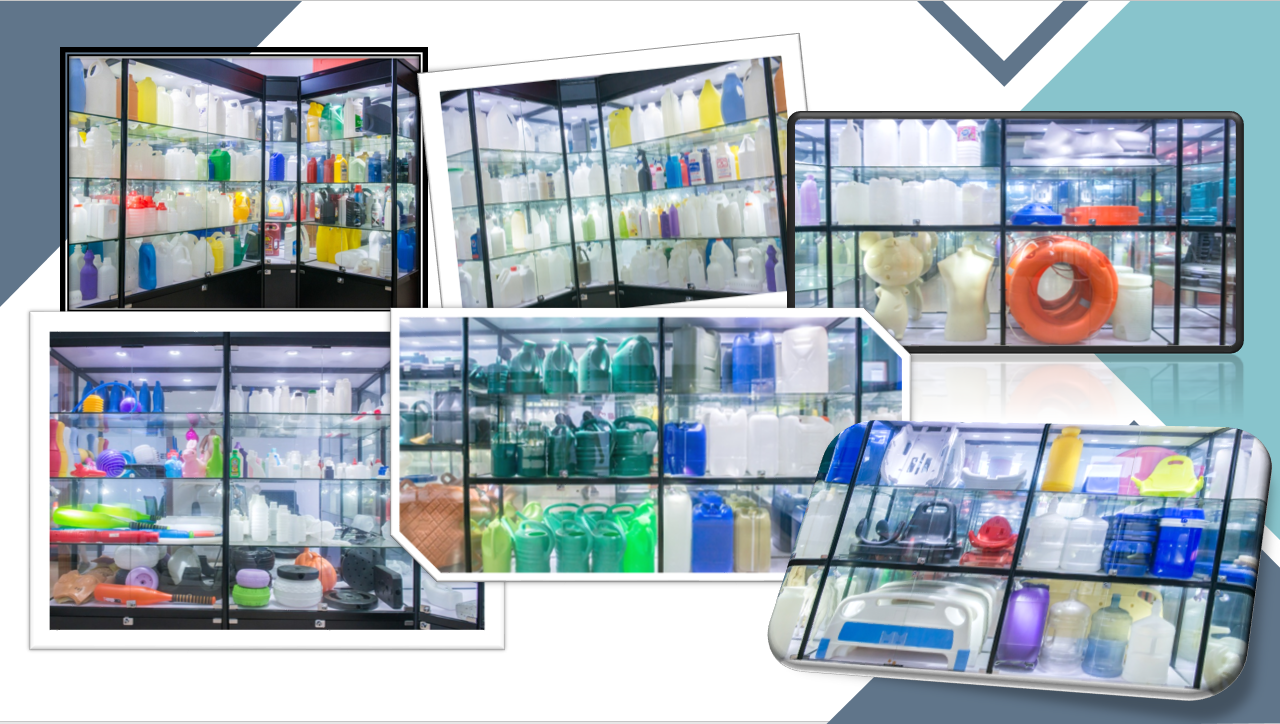

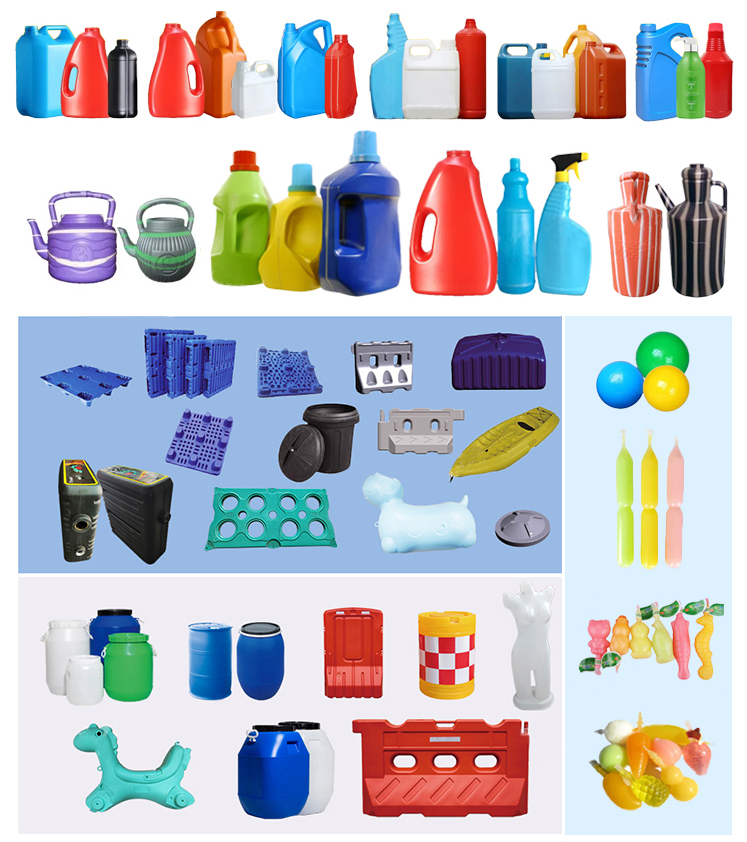

What We Can Blow
In reality, we can produce many different shapes and sizes of bottles, depending on its design and configuration. For example, oil cans, toys, toolboxes, trays, buckets, medical beds, bus seats, car air ducts, etc. If you have any questions, please contact us.
Product Paramenters
Name | Units | ABLB65II | ABLB75 | ABLB75II | ABLB90 | ABLB90II | ABLB100II |
Max. Product volume | L | 3.5 | 8 | 8 | 16 | 16 | 30 |
Dry cycle | PC/H | 800*2 | 800 | 750*2 | 700 | 700*2 | 400*2 |
Screw diameter | MM | 65 | 75 | 75 | 90 | 90 | 100 |
Screw L/D ratio | L/D | 24 | 24 | 24 | 24 | 24 | 25 |
Screw drive powe | KW | 18.5 | 22 | 22 | 45 | 45 | 55 |
Screw heating capacity | KW | 5-6 | 8-10 | 8-10 | 12-14 | 12-14 | 15-17 |
No.of heating zone | ZONE | 3 | 4 | 4 | 4 | 4 | 4 |
Output of HDPE | KG/H | 75 | 100 | 100 | 150 | 150 | 200 |
Servo Oil pump drive power | KW | 7.5 | 15 | 15 | 18.5 | 18.5 | 22 |
Clamping force | KN | 65 | 78 | 78 | 160 | 160 | 230 |
Blowing pressure | MPA | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.8 |
Air Volume | M3/MIN | 0.6 | 0.8 | 0.8 | 0.7 | 0.9 | 1.5 |
Cooling water pressure | MPA | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
Water consumption | L/MIN | 50 | 80 | 80 | 70 | 90 | 150 |
Product Details

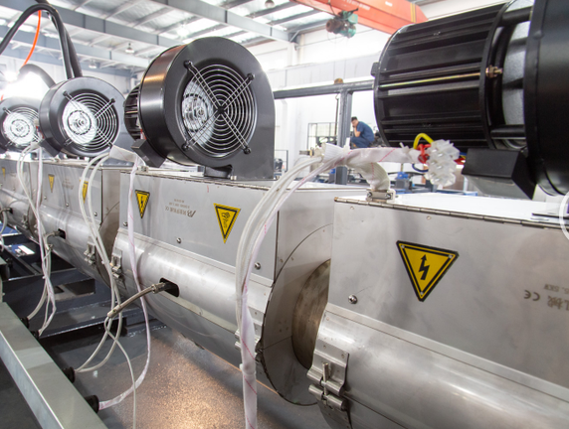

Screw

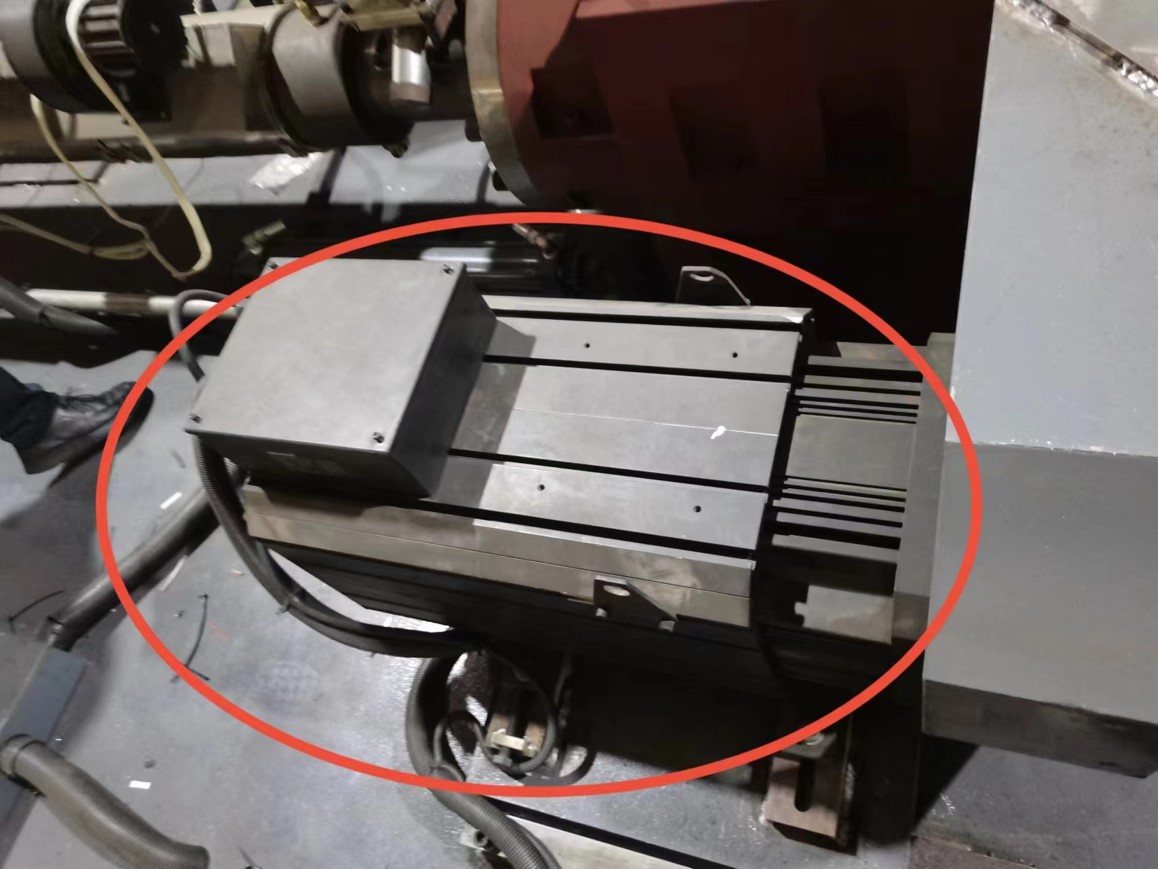

Motor

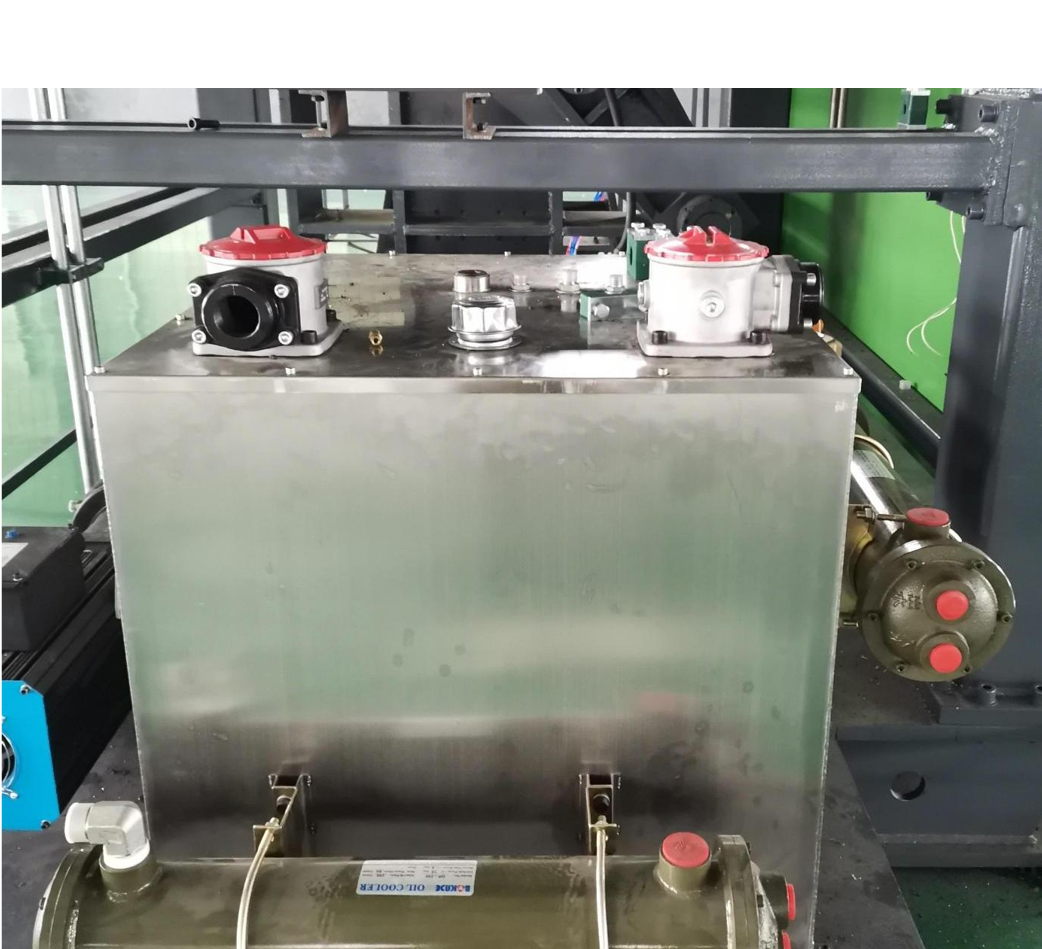

Oil tank

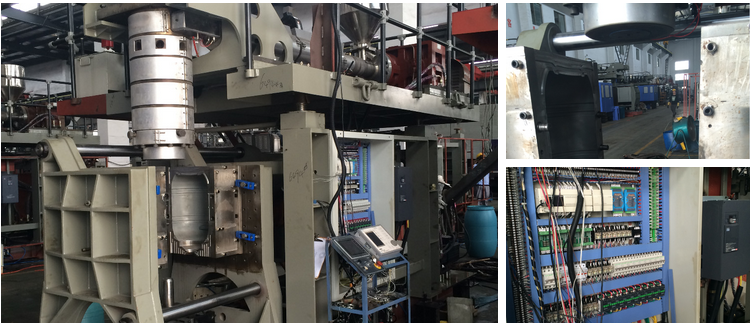

Mould
Control System
Quality Inspection
Others
Company Profile
Faygo Union Machinery Co., Ltd. is a professional enterprise which integrates designing, manufacturing and offering the turn-key project to our partners.
For decades, Faygo Union has dedicated herself to the packaging machinery of water, beverage, daily use chemical and edible oil.
We have supplied over 70 countries and regions with the following products: air compressors, PET blowing machine, water treatment,washing-filling-capping assembly line and barreled drinking water assembly line.
Faygo takes “making good machine; being good person” as its principle, and we will this philosophy throughout all aspects of production, innovation and strive to achieve beyond optimize product quality for our customers.
Our Services & Strength
We provide 24hours on line service, all life technical support, cost price spare parts in stock. Warranty is 1 year, any quality problem, we can send free spare parts or change new one.
For decades, Faygo Union has dedicated herself to the packaging machinery of water, beverage, daily use chemical and edible oil.
We have supplied over 70 countries and regions with the following products: air compressors, PET blowing machine, water treatment,washing-filling-capping assembly line and barreled drinking water assembly line.
Faygo takes “making good machine; being good person” as its principle, and we will this philosophy throughout all aspects of production, innovation and strive to achieve beyond optimize product quality for our customers.
Our Services & Strength
We provide 24hours on line service, all life technical support, cost price spare parts in stock. Warranty is 1 year, any quality problem, we can send free spare parts or change new one.
FAQ
1. who are you?
We are based in Jiangsu, China, start from 2011,sell to Domestic Market(22.00%),Africa(20.00%),Western Europe(13.00%),South America(10.00%),Southeast Asia(10.00%),South Asia(5.00%),North America(5.00%),Southern Europe(5.00%),Eastern Europe(5.00%),Mid East(5.00%),Eastern Asia(0.00%),Oceania(0.00%),Central America(0.00%),Northern Europe(0.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Air Compressor, Bottle Blowing Machine, Bottle Cutting Machine, Can Sealing Machine, Robotic Arm Manipulator, Air Compressor, Bottle Blowing Machine, Bottle Cutting Machine, Can Sealing Machine, Robotic Arm Manipulator
4. why should you buy from us not from other suppliers?
In the pet blow moulding industry,Yuda is the main provider of high quality high pressure air compressors. Having been supplying high pressure compressors to the pet industry for a number of years.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Russian
We are based in Jiangsu, China, start from 2011,sell to Domestic Market(22.00%),Africa(20.00%),Western Europe(13.00%),South America(10.00%),Southeast Asia(10.00%),South Asia(5.00%),North America(5.00%),Southern Europe(5.00%),Eastern Europe(5.00%),Mid East(5.00%),Eastern Asia(0.00%),Oceania(0.00%),Central America(0.00%),Northern Europe(0.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Air Compressor, Bottle Blowing Machine, Bottle Cutting Machine, Can Sealing Machine, Robotic Arm Manipulator, Air Compressor, Bottle Blowing Machine, Bottle Cutting Machine, Can Sealing Machine, Robotic Arm Manipulator
4. why should you buy from us not from other suppliers?
In the pet blow moulding industry,Yuda is the main provider of high quality high pressure air compressors. Having been supplying high pressure compressors to the pet industry for a number of years.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Russian
