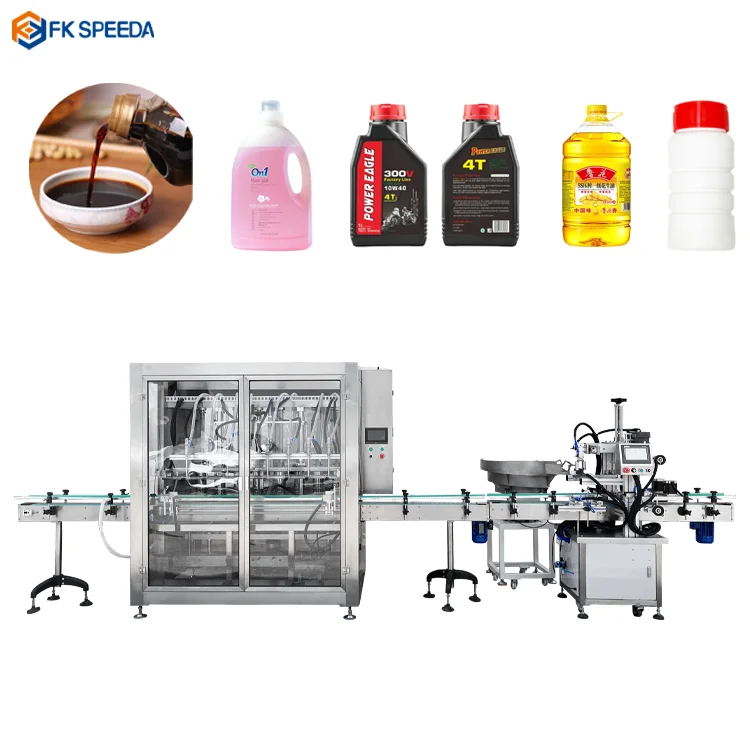

FK-SPEEDA small 4 heads 500ml servo piston pump fully automatic honey filling machine
FOB Reference Price
Purchase quantity ()
Minimum order quantity
Payment
Guangdong Feibin Machinery Group Co., Ltd
China - Dongguan
Manufacturing and trade
Trade Capacity
Export Percentage
30-50%
Nearest Port
Shenzhen,Guangzhou,Zhuhai
Accepted Delivery Terms
FOB,CFR,CIF,EXW,DDP,Express,Delivery
Employees
201-300 people
Accepted Payment Currency
USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CNF
Average Lead Time
20 Day(s)
Certifications
CE
ISO9001
Product Specifications
--Product Description
Product Overview

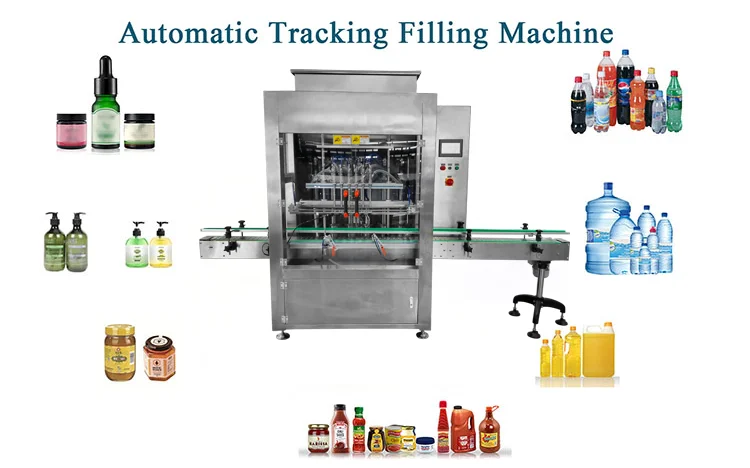

It is suitable for filling equipment of various bottle types with strong fluidity and certain viscous and fluid liquids, such as: liquid filling with equal water quality and fluidity, 6-head linear filling, widely used in Daily chemical, petrochemical,and other industries.
1.Applicable filling materials: honey, hand sanitizer, laundry detergent, shampoo, shower gel, etc. (Standard equipment uses 304 stainless steel for the contact material part, please note if there is high-strength corrosive filling liquid)
1.Applicable filling materials: honey, hand sanitizer, laundry detergent, shampoo, shower gel, etc. (Standard equipment uses 304 stainless steel for the contact material part, please note if there is high-strength corrosive filling liquid)
2. Applicable products: round bottle, flat bottle, square bottle, etc.
3.Application industry: widely used in cosmetics, daily chemical, petrochemical, and other industries.
4. Application examples:hand sanitizer filling, laundry detergent filling, honey filling,filling, etc.
3.Application industry: widely used in cosmetics, daily chemical, petrochemical, and other industries.
4. Application examples:hand sanitizer filling, laundry detergent filling, honey filling,filling, etc.
PRODUCT SPECIFICATIONS
Parameter | Data |
Applicable filling diameter (mm) | ≥15mm |
Applicable filling range (ml) | 100ml~1000ml |
Applicable product size | L (conveying direction): 40mm ~ 140mm; W(conveying width direction): 40mm～114mm; H: 100mm～400mm |
Filling accuracy (ml) | ±1% |
Filling speed (pcs/h) | 1500~3000pcs/h |
Weight (kg) | about 360kg |
Frequency (HZ) | 50HZ |
Voltage (V) | AC220V |
Air pressure (MPa) | 0.4-0.6MPa |
Power(KW) | 2.9KW |
Equipment dimensions (mm) | 3023×1132×2497mm |
Application
Functional characteristics:

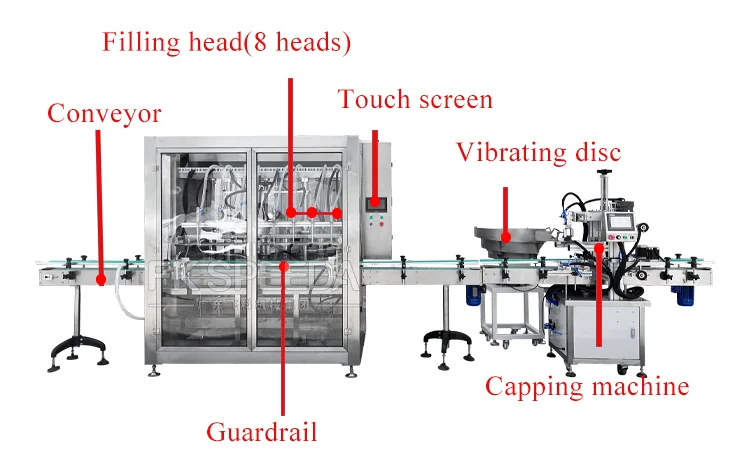

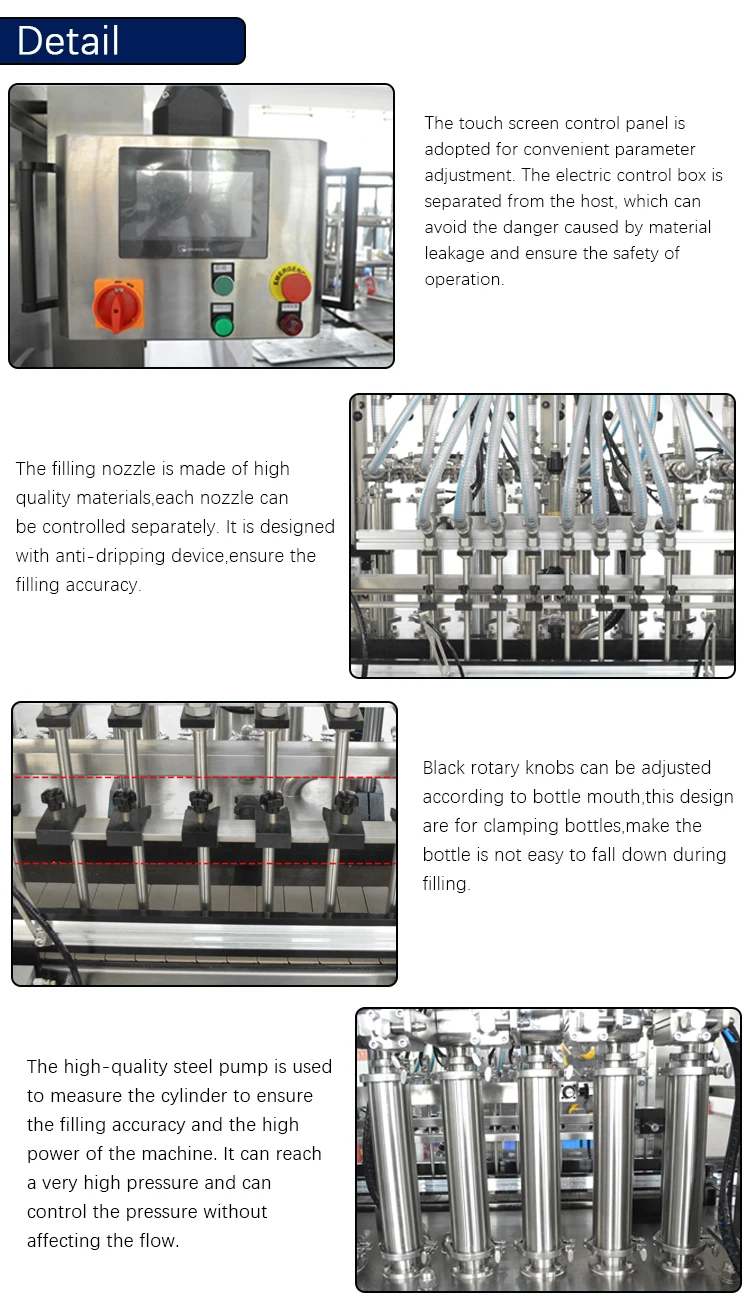

◆Easy to operate, easy to operate the machine, fool-like equipment, easy to use and easy to debug. To change products of different specifications, you only need to adjust the width of the conveying guardrail and the spacing of the filling heads according to the bottle type, and set the filling amount on the touch screen.
◆ Adopt servo motor two-speed filling function, fast first and then slow, to prevent liquid from splashing;
◆ The filling speed and filling volume can be directly input on the display screen, and the filling can be done without adjusting the mechanical parts.
◆Intelligent control, automatic photoelectric tracking, no filling if there are no bottles, no filling if there are less than 6 bottles in the filling mechanism, and automatic filling and cleaning of pipes and air exhaust.
◆ The main materials of the equipment are stainless steel and high-grade aluminum alloys, which conform to GMP production specifications. The overall structure is firm and beautiful.
Successful Project&Feedback

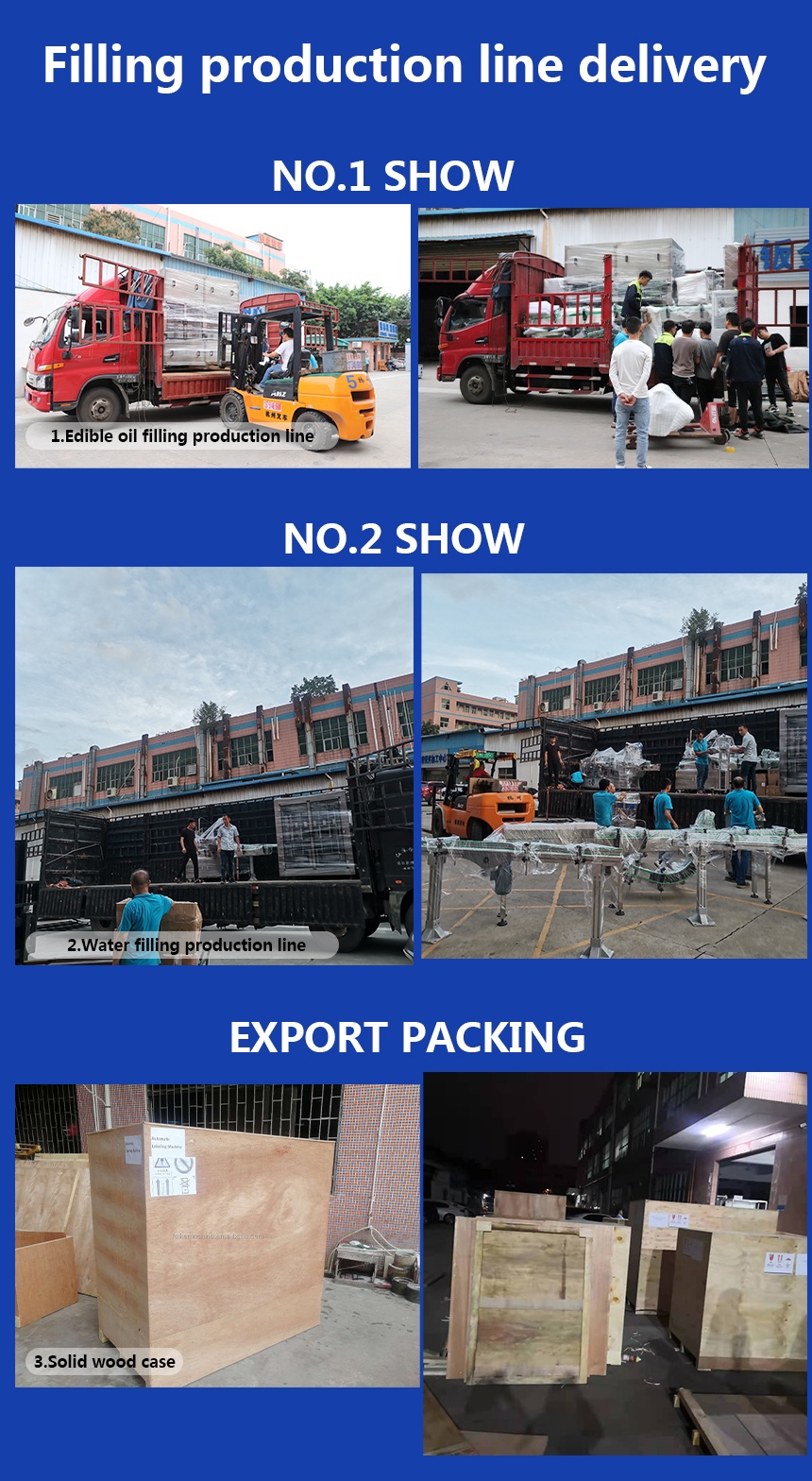

Packaging& Delivery
