FK-K3 Multi Lanes Coffee Bean/grain/rice Packing And Filling Automatic Packing Machine For Granule
FOB Reference Price
Purchase quantity ()
Minimum order quantity
Payment
Guangdong Feibin Machinery Group Co., Ltd
China - Dongguan
Manufacturing and trade
Trade Capacity
Export Percentage
30-50%
Nearest Port
Shenzhen,Guangzhou,Zhuhai
Accepted Delivery Terms
FOB,CFR,CIF,EXW,DDP,Express,Delivery
Employees
201-300 people
Accepted Payment Currency
USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CNF
Average Lead Time
20 Day(s)
Certifications
CE
ISO9001
Product Specifications
--Product Description
Product Overview

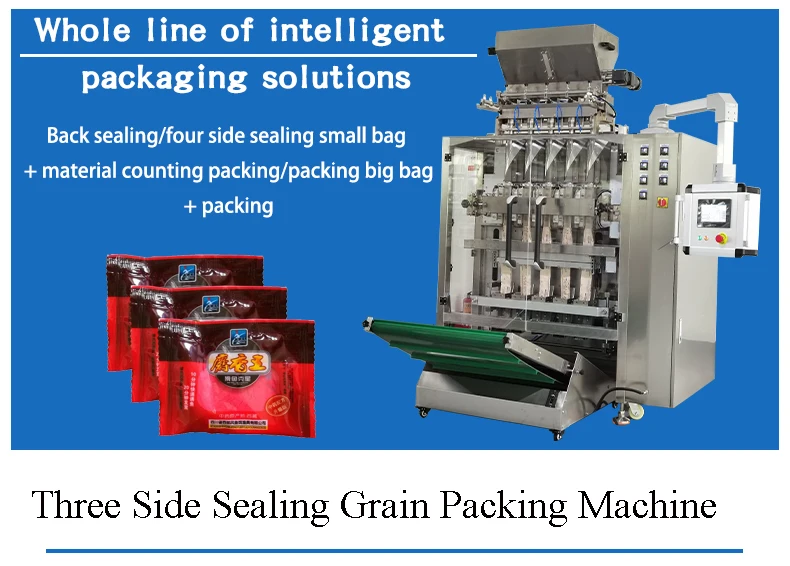

Automatic granule packing machine (Three side sealing)
MULTI-LANE granule sealing packing machine, suitable for granule: sugar,powder,spice,desiccant,salt,washing powper,Drug particles,Infusion of particles.
1. Multi lanes machine can produce multi lanes bags at same time.

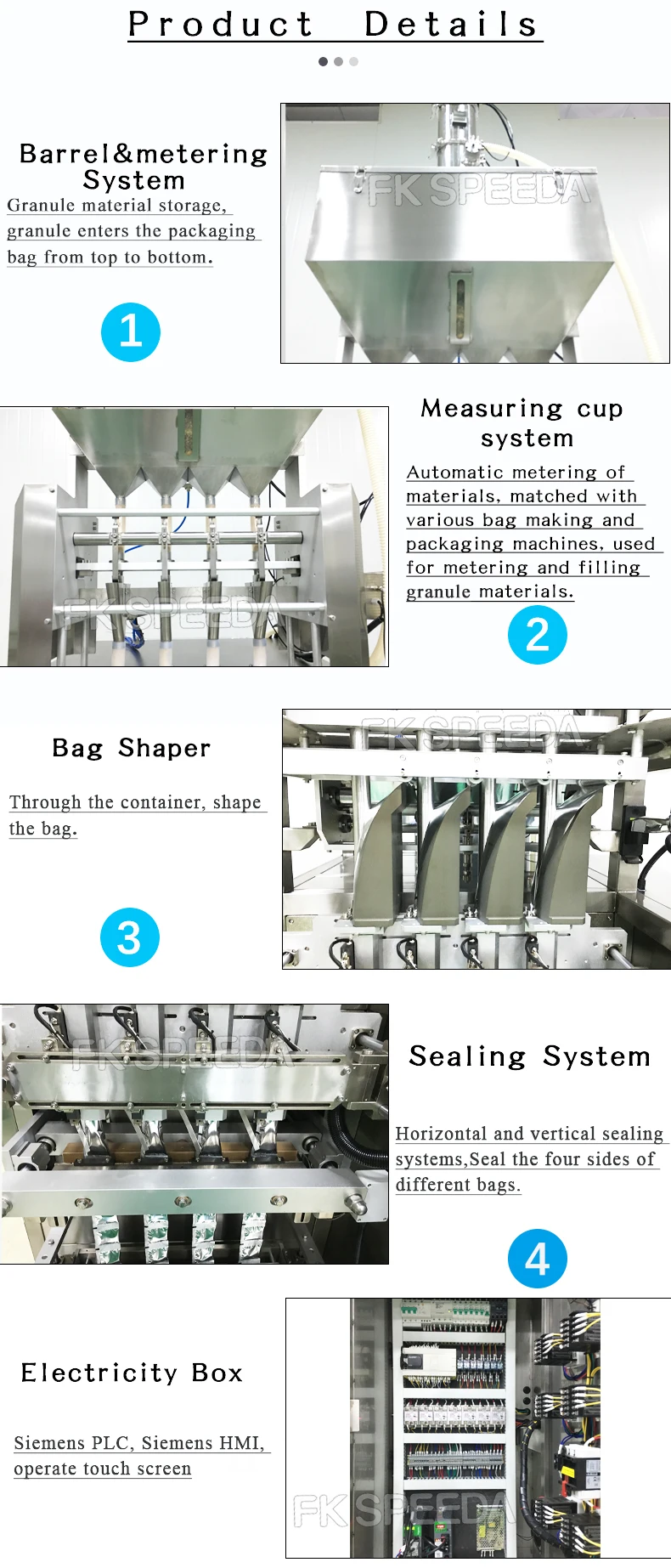

2. Machine main function: automatic split film at right position,granule measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.
3. Other function: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step etc.
4. Stainless steel contact part and the machine outer shell, high feature for liquid running environment.
5. High precision photocell sensor for auto tracking the eye mark printing on the film roll, so cut each bag at precisely position.
6. PLC controller, high function and control the whole machine’s work steps.
3. Other function: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step etc.
4. Stainless steel contact part and the machine outer shell, high feature for liquid running environment.
5. High precision photocell sensor for auto tracking the eye mark printing on the film roll, so cut each bag at precisely position.
6. PLC controller, high function and control the whole machine’s work steps.
Technical Parameter
Model | FK-YB1 | FK-YB2 | FK-YB3 | ||||
Lanes number | 2-4 lanes | 3-10 lanes | 4-16 lane | ||||

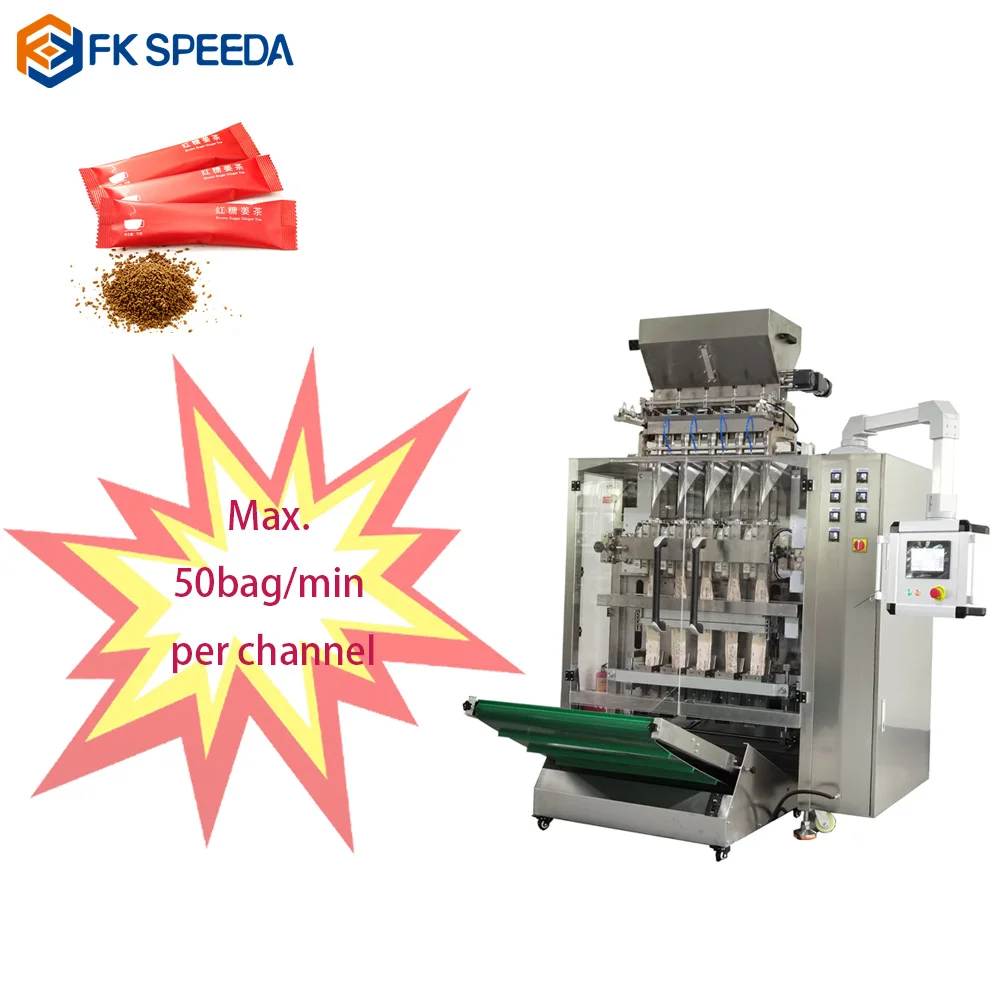

Capacity | Max.30-50cycle/min/lane | ||||||
Bag size | L：50-180mm W:25-75mm | L:50-180mm W:25-100mm | L::50-180mm W:25-110mm | ||||
Film width&thickness | Max.300mm,0.07--0.1mm | Max.600mm,0.07--0.1mm | Max.900mm,0.07--0.1mm | ||||
Measuring Method | 1.Straight cutting;2.Zig zag cutting;3.Round cutting;4.Die-cut | ||||||
Sealing type | Three side sealing | Three side sealing | Three side sealing | ||||
Cutting type | 1.Straight cutting;2.Zig zag cutting 3.Round cutting;4.Die-cut | ||||||
Power supply | 1N+PE/50HZ/AC220V/380V/3.5kw | 1N+PE/50HZ/AC220V/380V/5.5kw | 1N+PE/50HZ/AC220V/380V/7.5kw | ||||
Air consumption | 0.8 MPA 0.8m3/min | 0.8 MPA 0.8m3/min | 0.8 MPA 0.8m3/min | ||||
Dimension | 1385*918*2005mm | 1685*1300*2005mm | 1700*1600*2500mm | ||||
Weight | 400kg | 600kg | 950kg | ||||
Application
