FAYGO UNION Plastic PVC Window Door Profile and Sealing Trip Extrusion Machine for Sale
FOB Reference Price
Purchase quantity ()
Minimum order quantity
Payment
Jiangsu Faygo Union Machinery Co., Ltd.
China - Suzhou
Manufacturing and trade
Trade Capacity
Export Percentage
70-90%
Nearest Port
Shanghai,Ningbo
Accepted Delivery Terms
FOB,CIF,EXW
Employees
201-300 people
Accepted Payment Currency
USD,EUR,CNY
Average Lead Time
45 Day(s)
Certifications
Product Specifications
--Product Description
Product Overview
PVC Profile And Foamed Extrusion Line
1.FY series production line is designed for extrusion of PVC plastic door and window profile, aluminum-plastic composite profile and cross-section cable pipes etc.
2.PVC profiles are widely used in the building industry, home and office decoration.
3.This line has features of stable plasticization, high output, long life service.
4.This line consists of control system, conical twin screw extruder, extrusion die, calibration unit, haul-off unit, cutter, laminating machine and stacker.
PRODUCT SPECIFICATIONS

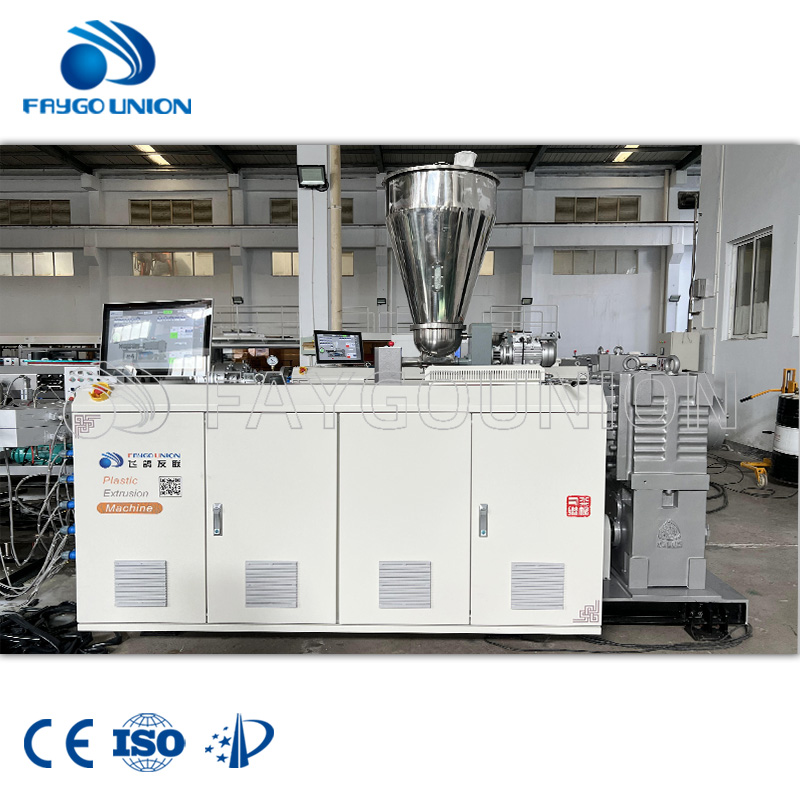

SJZ65/132 Conical Double-Screw Extruder
Screw, Barrel | Screw and Barrel Material 38CrMoAlA,Nitriding, Surface Chrome plate, Nitriding Layer Thickness:0.5～0.7mm, Surface Rigidity:800～900HV |
Screw Diameter | Φ65/132mm |
Effectual Working Length of Screw | 1430mm |
Speed of Screw | 1~35rpm |
Reducer Gearbox | DUOLING Brand Decelerated and Distributed Gearbox made By JiangYin Gearbox Manufacture Co.,Ltd. |
Main Motor Power | 37KW Siemens Motor |
Main Motor Timing Method | Adopt 37KW ABB AC Inverter |
Force Feeder Motor Power | 1.1KW |
Force Feeder Motor Timing | Adopt 1.1KW ABB AC Inverter |
Barrel Heating system | Foundry Aluminum Heater Total heating power 20.7kw, total 4 heating zones. Zone 1#: 7.5kw Zone 2#: 3.5kw Zone 3#: 5.5kw Zone 4#: 4.2kw |
Barrel cooling system | force cooling fan, fan adopt Suzhou SOK 240W fan |
Capacity | 180～250kg/h |
Main Electrical Equipment | Japanese OMRON Temperature Control Meter, Siemens Contactor, |
Vacuum exhaust system | Adopt 2.2KW water loop vacuum pump, contain pressure box |
Calibration Table Length | 6 Meter |
Calibration Table Width | 1000mm |
Vacuum Pump | 5.5KW×3pcs |
Water Pump | 4KW*1pc,2.2KW*1PC |
Vacuum & Water Tie-in | Vacuum Tie-in＝20pcs,Water Tie-in＝20pcs |
Vortex Gas Pump Power | 1.1KW |
Mould Install Rail | Adopt High Quality Aluminum Profile |
Mould Rail Center Distance | 320mm |
Distance of from rail to floor | 900±40mm |
Table fore-and-aft Move | Adopt 1.5KW Gearbox Speed Reducer Motor, Adjusting Distance equal to 800mm |
Table Adjustment | Up-and-down adopt worm reducer & screw adjust Right-and-left adopt screw adjust |
QYQG240 Haul-offs and cutting machine
Haul-off Bracket Length | 2700mm |
Rubber Block Width | 240mm |
Haul-off Motor Power | 1.5KW×2PCS |
Haul-off Speed Adjusting | Adopt 3.7KW Japanese ABB AC Inverter |
Haul-off Speed | 0.3～6 meter/min |
Above Haul-off Bracket Compaction Mode | Adopt pneumatic gas cylinder |
Maximum Cut Profile Size | 240×100mm |
Saw Diameter | Φ400mm |
Cut Motor Power | 2.2KW |
Bracket Lengthways Move Distance | 600mm |
Sawdust Absorb Vortex Fan | 0.75KW |
Mechanical Numerical Control Processing Mold
Application
Packaging & shipping
We ensure that the machine will arrive safely. Please rest assured.
Certifications and Factory Show
Eager to get you trust
Jiangsu Faygo Union Machinery Co., Ltd. adheres to the business philosophy of "integrity and win-win", adheres to the customer first and quality, serves customers with science and technology, adheres to technological progress, continuous innovation and continuous surpassing, and has become an enterprise with strength and scale in the rubber and plastic industry.
We will serve you with the most sincere attitude and the best technology. Your satisfaction is our pursuit.
