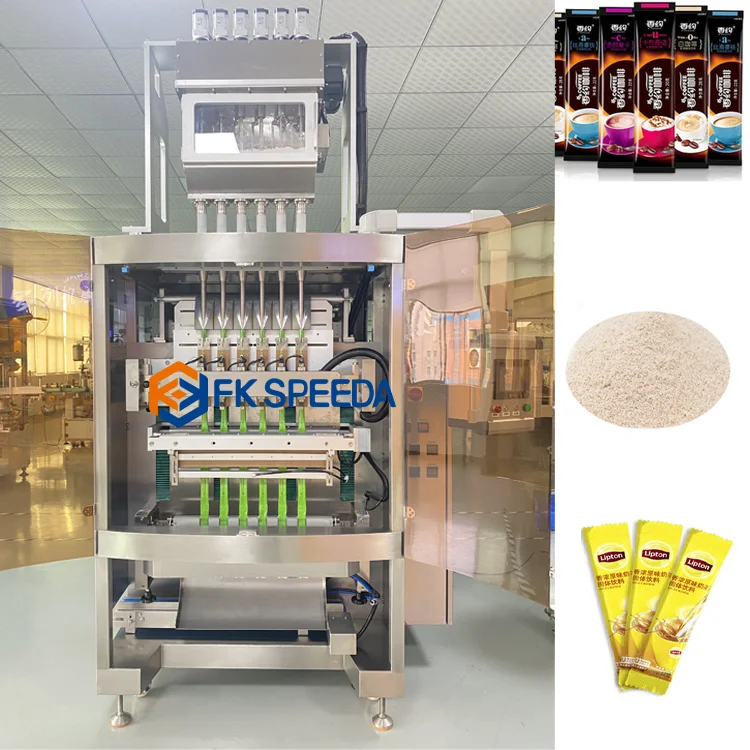

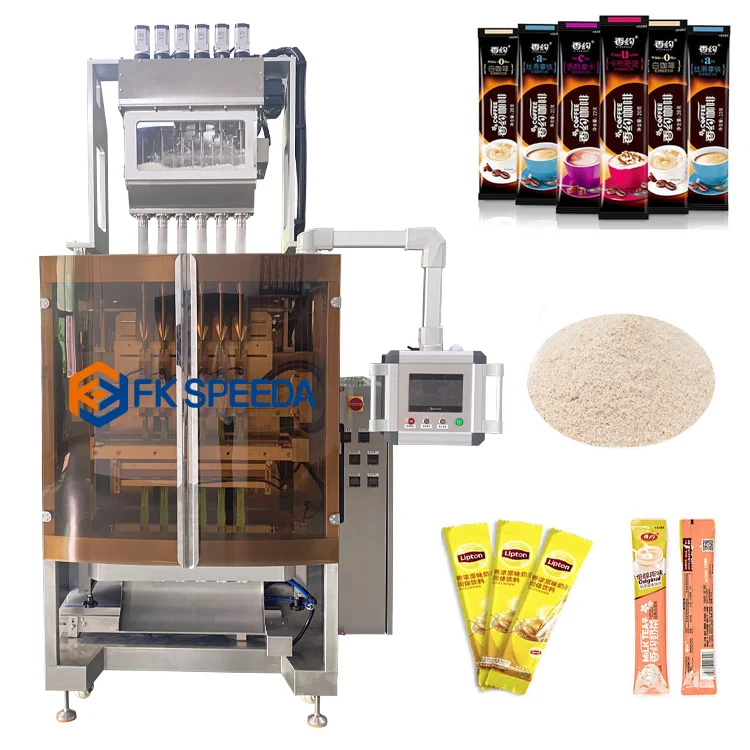

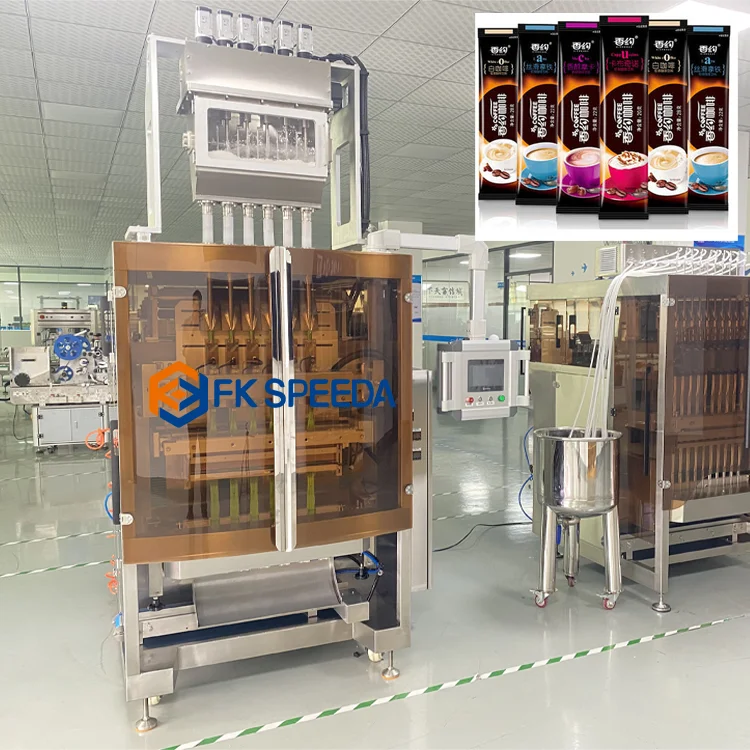

CE Fully Automatic 2/4/6 Lanes Sachet Salt Sugar Filling Stick Bag Coffee Powder Packing Machine
FOB Reference Price
Purchase quantity ()
Minimum order quantity
Payment
Guangdong Feibin Machinery Group Co., Ltd
China - Dongguan
Manufacturing and trade
Trade Capacity
Export Percentage
30-50%
Nearest Port
Shenzhen,Guangzhou,Zhuhai
Accepted Delivery Terms
FOB,CFR,CIF,EXW,DDP,Express,Delivery
Employees
201-300 people
Accepted Payment Currency
USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CNF
Average Lead Time
20 Day(s)
Certifications
CE
ISO9001
Product Specifications
--Product Description
Product Overview
Automatic Back Sealing Powder Packing Machine
Suit for powder:Meal replacement powder, health care powder, seasoning powder, food powder, milk powder, nutrition powder
Features
1. The outer sealing paper is controlled by stepping motor, the bag length is stable and the positioning is accurate;
2. Adopt PID temperature controller to control the temperature more accurately;
3. PLC is used to control the movement of the whole machine, man-machine interface display, easy to operate;
4. All accessible materials are made of SUS304 stainless steel to ensure the hygiene and reliability of products;
5. Some working cylinders adopt original imported parts to ensure the accuracy and stability of their work;
6. The additional device of this machine can complete the functions of flat cutting, date printing, easy tearing etc.
7. Ultrasonic and thermal sealing form can achieve linear incision, save the filling space inside the mounting ear, and reach 12g
packaging capacity;
8. Ultrasonic sealing is suitable for all non-woven packaging materials cutting, cutting success rate is close to 100%;
9. The equipment can be equipped with nitrogen filling device, date printing device and stirring device, etc.
2. Adopt PID temperature controller to control the temperature more accurately;
3. PLC is used to control the movement of the whole machine, man-machine interface display, easy to operate;
4. All accessible materials are made of SUS304 stainless steel to ensure the hygiene and reliability of products;
5. Some working cylinders adopt original imported parts to ensure the accuracy and stability of their work;
6. The additional device of this machine can complete the functions of flat cutting, date printing, easy tearing etc.
7. Ultrasonic and thermal sealing form can achieve linear incision, save the filling space inside the mounting ear, and reach 12g
packaging capacity;
8. Ultrasonic sealing is suitable for all non-woven packaging materials cutting, cutting success rate is close to 100%;
9. The equipment can be equipped with nitrogen filling device, date printing device and stirring device, etc.
PRODUCT SPECIFICATIONS
Model | FK500F | FK700F | FK980F | FK1200F | |||
Lanes number | 2-4lanes | 3-6lanes | 4-8lane | 5-10 lane | |||
Capacity | 25--40 cut/lan Max.25-40cycle/min/lane | ||||||
Bag size | L：45-160mm W:50-125mm | L：45-160mm W:50-125mm | L：45-160mm W:50-125mm | L：45-160mm W:50-125mm | |||
Film width&thickness | Max.500mm,0.07--0.1mm | Max.700mm,0.07--0.1mm | Max.980mm,0.07--0.1mm | Max.1200mm,0.07--0.1mm | |||
Measuring Method | 1.short auger;2.short auger with cup | ||||||
Sealing type | back sealing | back sealing | back sealing | back sealing | |||
Cutting type | 1.Straight cutting;2. Zig zag cutting ;3 Continuous Cutting | ||||||
Power supply | 1N+PE/50HZ/AC220V/380V/2.8kw | 1N+PE/50HZ/AC220V/380V/4.1kw | 1N+PE/50HZ/AC220V/380V/5.5kw | 1N+PE/50HZ/AC220V/380V/7.5kw | |||
Air consumption | 0.8 MPA 0.8m3/min | 0.8 MPA 0.8m3/min | 0.8 MPA 0.8m3/min | 0.8 MPA 0.8m3/min | |||
Dimension | 950*1470*1750mm | 1153*1654*1750mm | 1415*1686*2130mm | 2220*2210*2600mm | |||
Weight | 400kg | 550kg | 650kg | 900kg | |||
