Bellows Water Electric Conduit Corrugated Pipe Making Machine/ Garden Hose Making Machine
PP PE PVC Corrugated pipe making machine

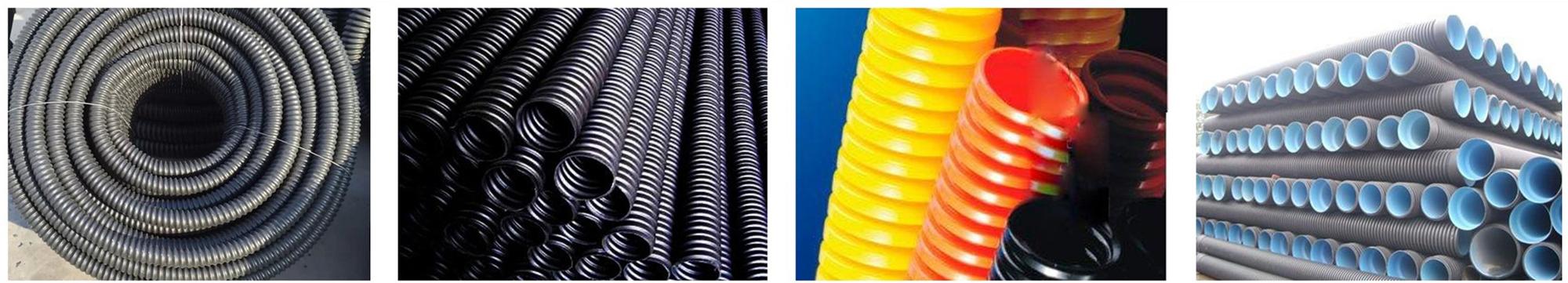

The production line is mainly used to produce small diameter single wall PVC,PP and PE corrugation pipe, which could be used as wire and cable passing pipe ,washing machine drain pipe, dust collector pipe; Small size corrugation pipe of 4.5-50mm could be made for car use purpose. Being composed of 65/45/30 extruder, corrugated pipe mould forming machine, pipe die, air-cooling device, winder, the production line can extrude and mold PVC, LDPE, HDPE and other thermoplastic corrugated pipe of many specifications continuously.
| Pipe diameter | 8-32mm | 16-75mm |
| Main Extruder model | SJ50 | SJ65 |
| Main Extruder L/D | 25:1/28:1/30:1 | 25:1/28:1/30:1 |
| Capacity | 30-50kg/h | 60-80kg/h |
| Main Motor | 11KW/15KW | 18.5KW/22KW |
| Cooling type | Air fans cooling | Air fans cooling |
| Forming mould quantity | 50 paris | 60 pairs |
| Production Speed | 8-12m/min | 8-15m/min |
| Forming machine motor | 1.5kw | 1.5kw |

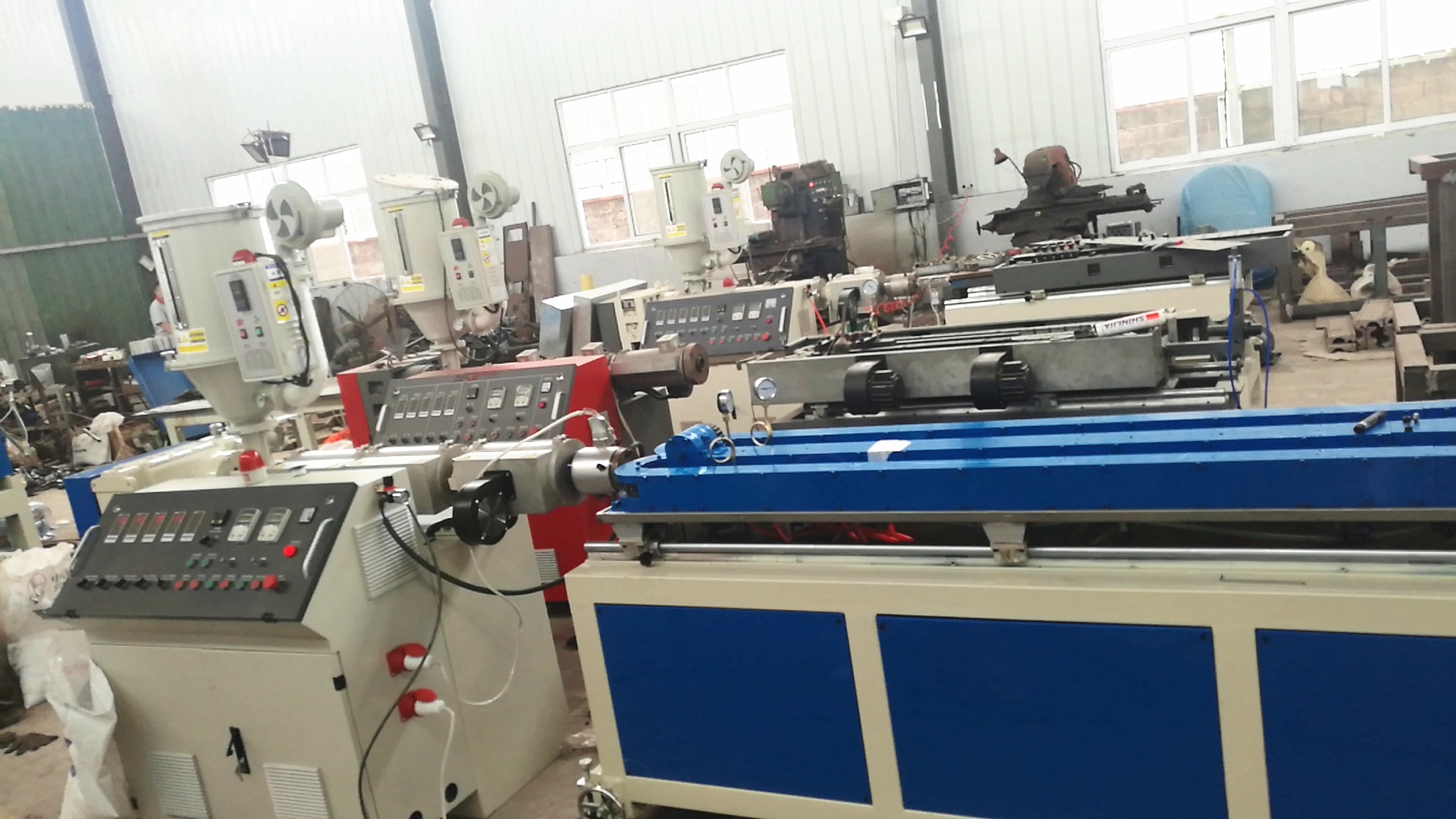

Machine Show:
38GrMoALA alloy steel under nitriding treatment . Depth of screw:0.4-0.6mm hardness: HV>740. Depth of barrel:0.5—0.7mm hardness: HV>940
Extrusion capacity: 60kg/h, Main Electrical Parts: Temperature Controller: OMRON, Contactor: SIEMENS

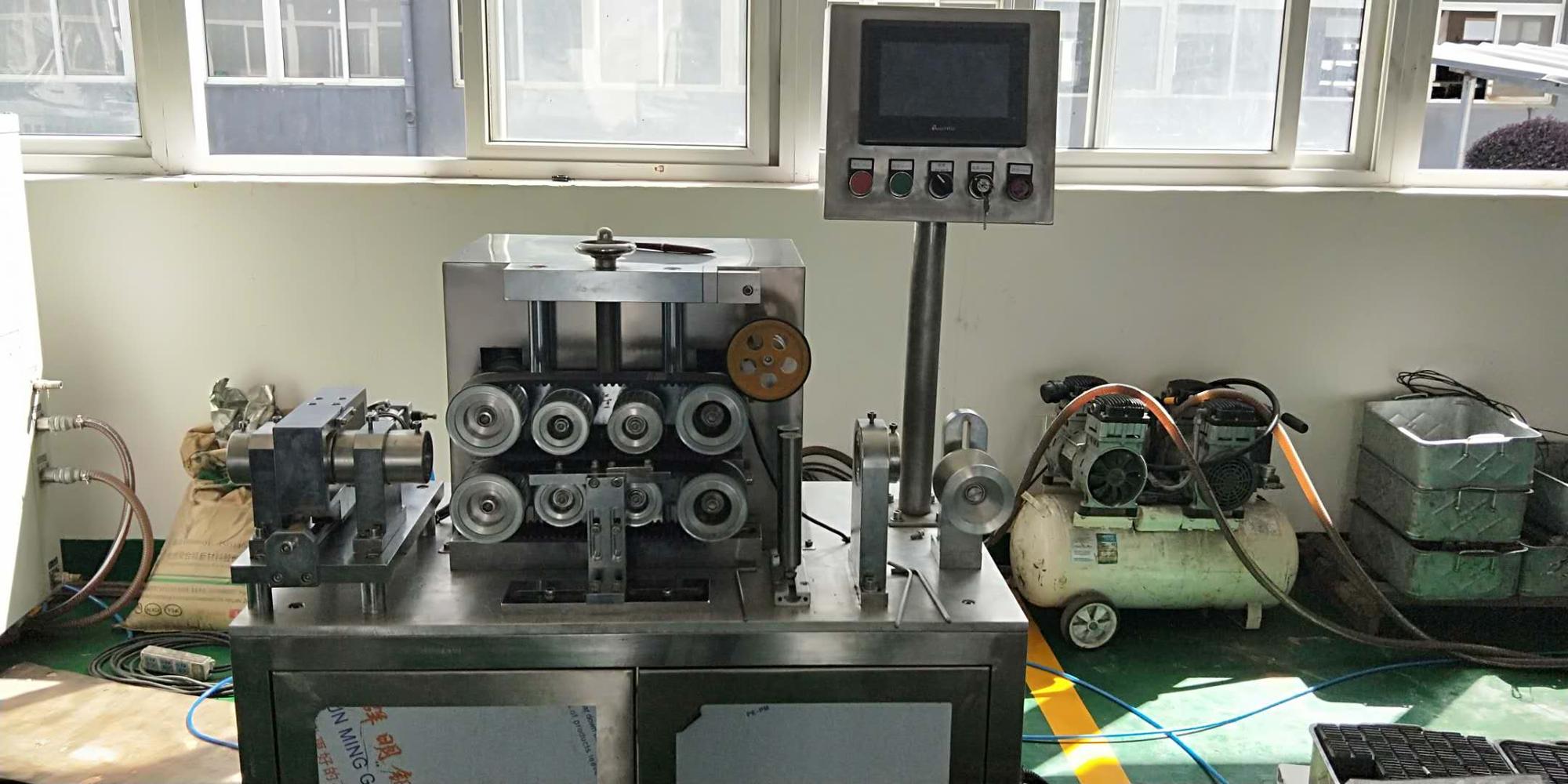

Plastic Corrugated Pipe Molding Machine, Machine Size:2300*650*1150mm, Motor Power:3-4kw, Pipe Diameter:10-58mm
production Speed:5-22m/min, Number of Mould:46-72pairs,
Mold size:36*56.5*75mm, Length of Molds:4070mm, Cooling mode:water cool, Control Mode:Touch screen.

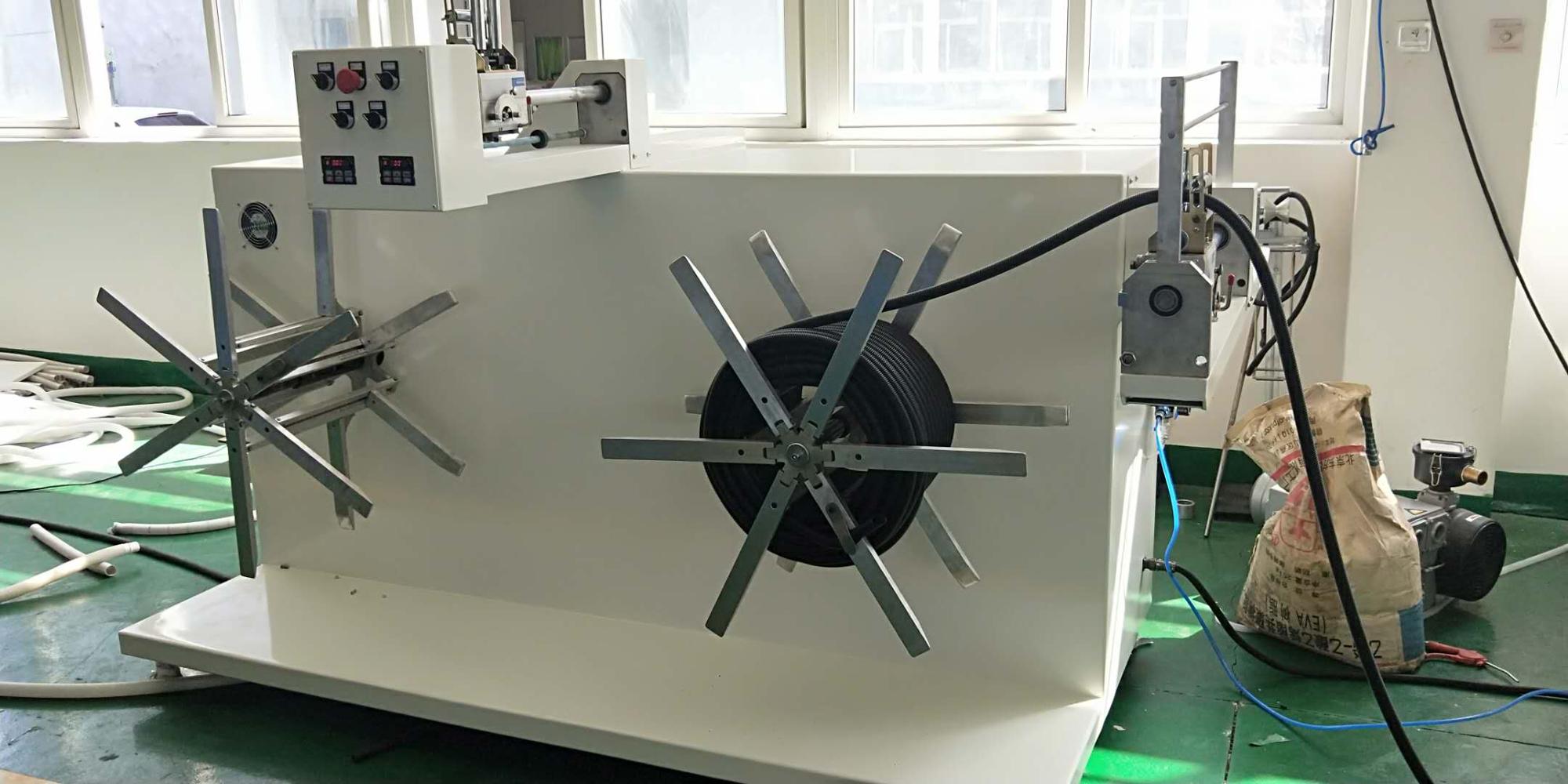

Feature:Adopted with infrared sensor synchronization, and controlled by PLC, this equipment is drived by servo motor with an advantages
in easy to operate, winding smooth and high benefits.

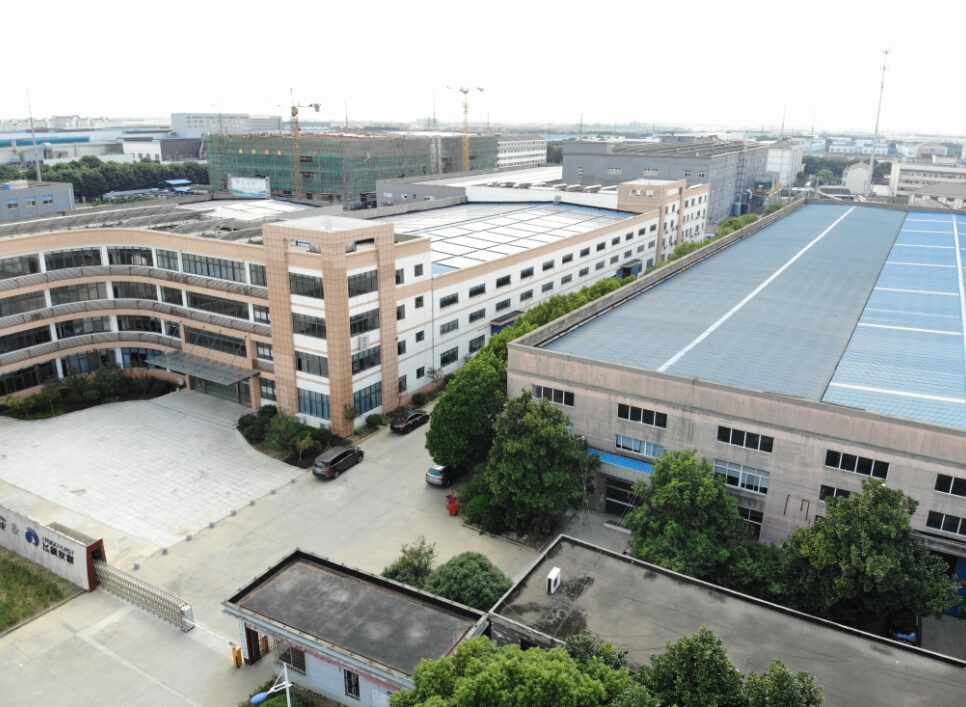

Company Show:
Jiangsu Faygo Union Machinery Co., Ltd is a new high-tech enterprise covering 2000m2, which specialized in researching and manufacturing blowing machines.
Our product have been exported to Middle East, Southeast Asia, South America and Europe etc. We have received universal confirmation and trust from our customers.
Add: No.8, Feixiang Road, Korea Industry Zone, Fenghuang Town, Zhangjiagang City, Jiangsu Province, China.

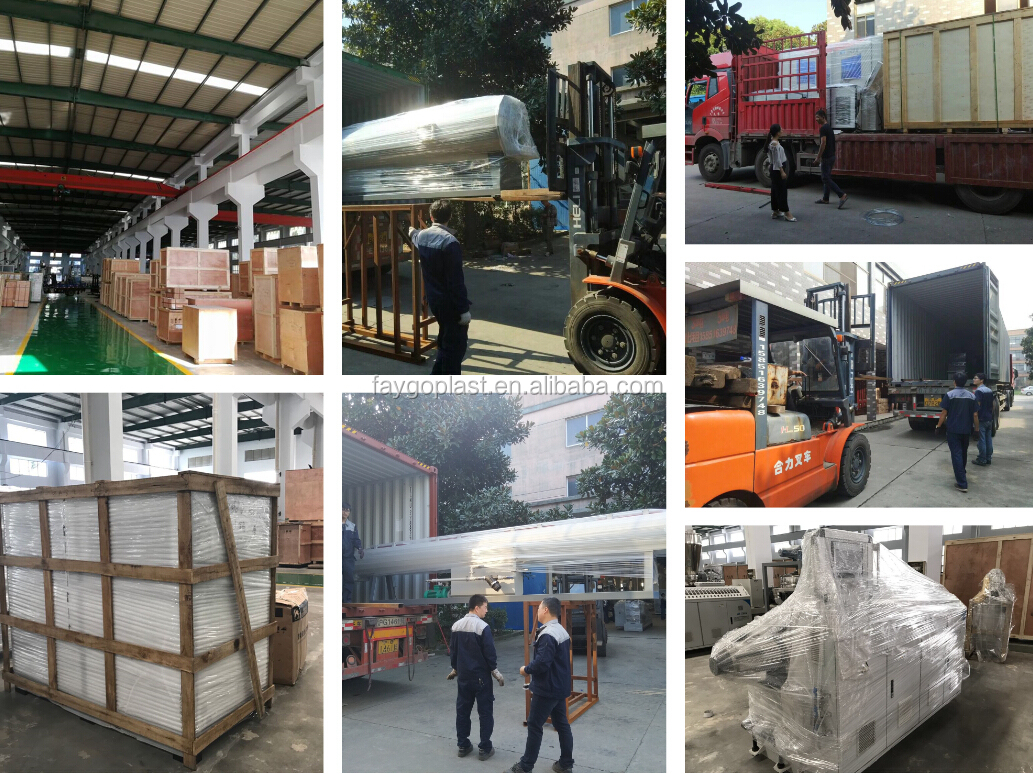

Shipping Details:
