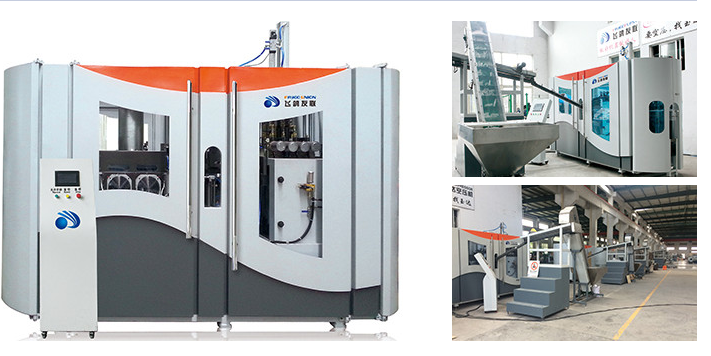

Automatic Manufacturers Price 1 Liter Plastic Pet Water Bottle Extrusion Blow Molding / Moulding Machine for Sale
FOB Reference Price
Purchase quantity ()
Minimum order quantity
Payment
Jiangsu Faygo Union Machinery Co., Ltd.
China - Suzhou
Manufacturing and trade
Trade Capacity
Export Percentage
70-90%
Nearest Port
Shanghai,Ningbo
Accepted Delivery Terms
FOB,CIF,EXW
Employees
201-300 people
Accepted Payment Currency
USD,EUR,CNY
Average Lead Time
45 Day(s)
Certifications
Product Specifications
--Product Description
Product Description
| Type | FG4 | FG6 | FG8 | ||
| Bottle specification | Mold number(piece) | 4 | 6 | 8 | |
| Max capacity(BPH) | 6500-8000 | 9000-10000 | 12000-13000 | ||
| Max volume(mL) | 2000 | 2000 | 750 | ||
| Max height(mm) | 328 | 328 | 290 | ||
| round bottle max diameter(mm) | 105 | 195 | 75 | ||
| Square bottle max diagonal(mm) | 115 | 115 | 76 | ||
| Preform specification | Suitable inner bottle neck (mm) | 20-25 | 20-25 | 20-25 | |
| Max perform length(mm) | 150 | 150 | 150 | ||
| Electricity | Total installation power(KW) | 51 | 51 | 97 | |
| Heating oven total power(KW) | 46 | 46 | 92 | ||
| Heating oven real power(KW) | 25 | 30 | 45 | ||
| Voltage/Frequency(V/Hz) | 380(50Hz) | 380(50Hz) | 380(50Hz) | ||
| Allowed voltage fluctuation range | ±10% | ±10% | ±10% | ||
| Compressed air | Pressure (bar) | 30 | 30 | 30 | |
| Air consumption(m3/min) | 4 | 6 | 8 | ||
| Cooling water | Mold water | Pressure (bar) | 4-6 | 4-6 | 4-6 |
| Temperature regulation range | 6-13 | 6-13 | 6-13 | ||
| Flow rate(L/min) | 45 | 45 | 45 | ||
| Oven water | Pressure (bar) | 4-6 | 4-6 | 4-6 | |
| Temperature regulation range | 6-13 | 6-13 | 6-13 | ||
| Flow rate(L/min) | 22 | 22 | 22 | ||
| Machine specification | Machine dimension(m)(L*W*H) | 3.3*1*2.3 | 4.3*1*2.3 | 4.8*1*2.3 | |
| Machine weight(Kg) | 3500 | 4000 | 4500 | ||
Packaging & Shipping
Our Services
One stop Station Services
1)Stand-by engineers teams to provide overseas installation and commissioning service.
2)1 year warranty.During warranty ,we provide free of charge for repairing cost.
3)lifetime maintence .After-sales department can provide life long maintence service.

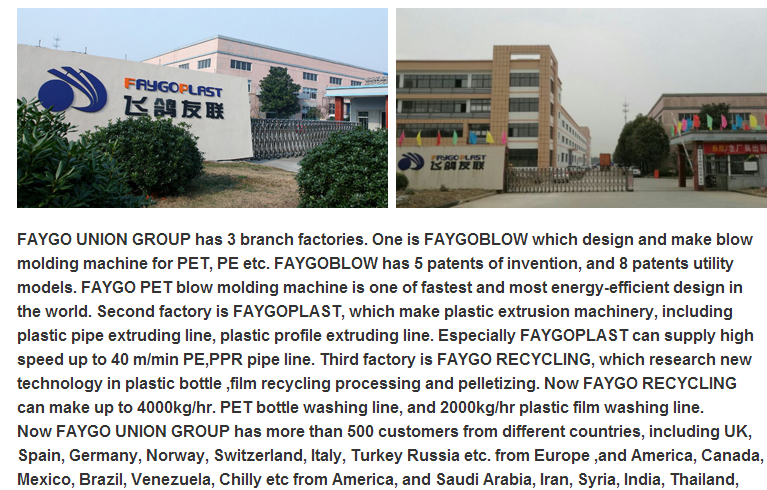

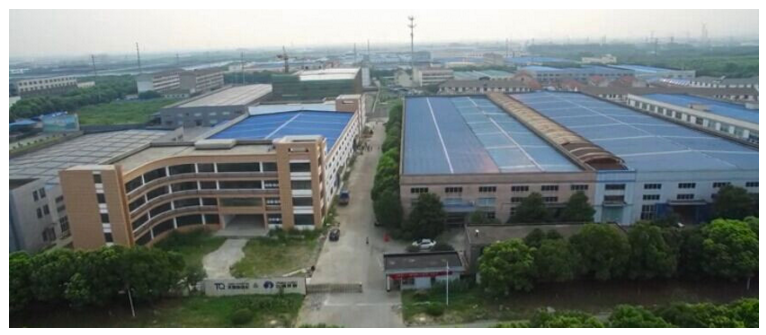

Company Information
vxgd
If you want get more information, please contact us, thanks!
Our company is near Shanghai ,about150km. Contact person :Sarah He
Whatsapp/Facebook:+86 188629865739
Mobile:0086-18862985739
Welcome to our factory anytime!
