--Product Description
Product introduction
Product Parameters | ||||||||
Model | YD6-1600 | YD30-1900 | YD60-2000 | YD180-3100 | ||||
Max Load | 6kg | 30kg | 60kg | 180kg | ||||
Axis | 6 | 6 | 4 | 4 | ||||
Arm Reach | 1600mm | 1900mm | 2000mm | 3100mm | ||||
Repeatability | ±0.08mm | ±0.1mm | ±0.2mm | ±0.2mm | ||||
Max Motion Range | ±360° | ±360° | ±360° | ±360° | ||||
Max Speed | 696°/s | 287°/s | 300°/s | 300°/s | ||||
Weight | 164kg | 290kg | 1050kg | 1120kg | ||||
Installation | Floor | Floor | Floor | Floor | ||||
Application

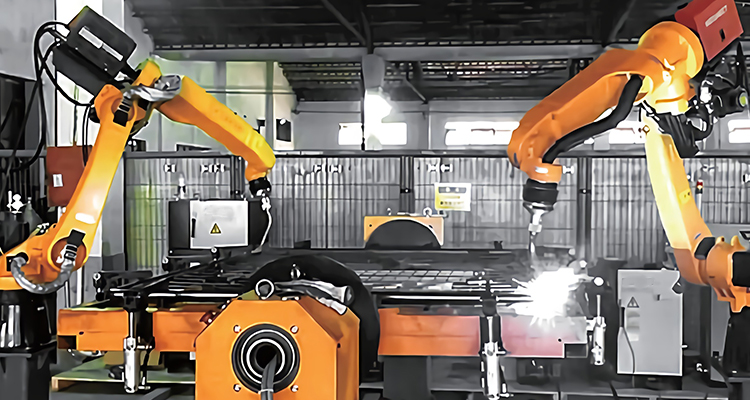

CO2/MIG/MAG Gas Metal Arc Welding Workstation
YUDA hollow wrist robots reduce interference of cables. High performancewelding gun, welding power source and weldingsoftware package can make an ideal integrated welding workstation. welding stations have characteristics of super spatter-free, good weld bead appearance, and low heat input to base material. They can support sophisticated welding functions such as pre weld data setting , pendulum welding, intermittent welding, etc. robotic arc welding stations can be widely used in steel furniture, automobile parts, electric bike, motorcycles,fitness equipment, medical equipment, elevators, agricultural machinery,aluminum film plate and other industries.

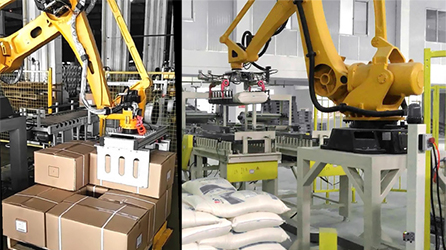

Palletizing
YUDA provides high-speed, high-load capability and long reach intelligent palletizing robots. The standard smart palletizing software packages can generate palletizing instructions automatically. When equipped with different grippers, palletizing robots are very suitable for palletizing solutions of bags, boxes, bottles, buckets etc.

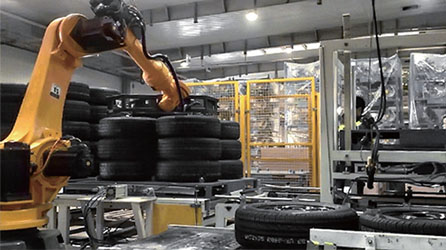

Handling
YUDA Robots can cover 3kg to 500kg load capability. They can satisfy the requirements of automatic material transportation. Material handling can be much easier with conveyor tracking and collision detection function of robots.

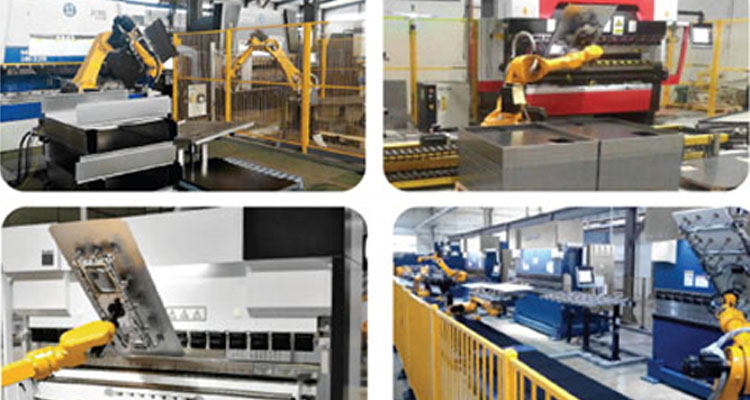

Bending
YUDA has also developed outstanding robotic, which has provided perfect solution for all critical points of robotic bending such as synchronous bending following, long programing & teaching time and soon. It has user-friendly interface, is very easy to operate, and is being widely recognized by the market.
