4&5&6 Gallon JNDWATER Semi Automatic Plastic Bottle Blowing Machine
Application
1.ShenZhen J&D Drinking Water Equipment Co.,Ltd.’s Semi Automatic Bottle Blowing Machine JND-90 is especially designed for producing 4 gallon 5 gallon 6 gallon bottles and 25L wide mouth jars; Its Max. Output is up to 90 BPH for 5-gallon bottles and even could reach 120 bottles per hour in certain case.
2.Its of JNDWATER Machine’s Main components
(1) main units;
(2) rotary infrared heater: the infrared heater with high penetrative force can heat the inside and outside of preform simultaneously, which help giving our bottle blow machines high shaping ability.
3. Easy operation for its high automation: only one operator is needed and the operator only need to put heated preform into the blow mold and press the switch; the following processes will be automatically completed.
Technical Parameters
General Information | JND-90 |
Clamping Force | 30T |
Clamping Stroke | 330mm |
Max. Stretching Stroke | 450mm |
Bottom Moving Stroke | -- |
Number of Cavities | 1 Cavity |
Theoretical Output | 90BPH |
Max. Mould Thickness | 380mm |
Space Between Tie Bars | 480*550mm |
Electrical System | |
Voltage Standard | AC 380V/50HZ or special order |
Number of Heating Zone | 2 Sections |
Total Power(Full Loaded) | 15kw |
Container | |
Max. Container Volume | 25L |
Neck Diameter Range | 65mm |
Max. Container Diameter | 330mm |
Max. Container Height | 550mm |
Auxiliary System | |
Low Air compressor | 8-10Bar |
High Air compressor | 30Bar |
Air Dryer | 2.0/30 |
Dimension & Weight (L×W×H) | |
Blow molding machine | 1550*820*2000mm |
Preform Autoloader | -- |
Net Weight | 1.4Ton |
Product advantages
Electronic component come from famous manufacturers all over the world ,such as Omron,Siemens and so on.

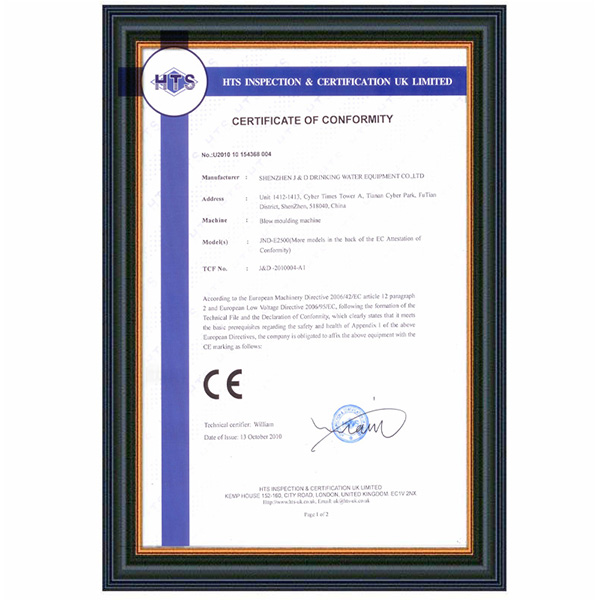

Product by CE standard.
Stainless steel 304
