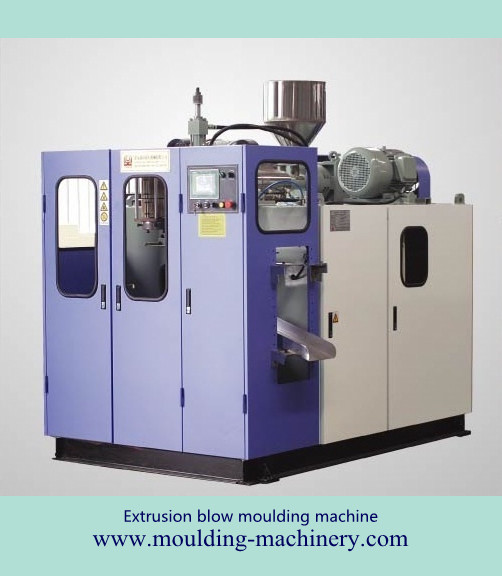

10Liter/20Liter/30Liter Plastic Canister Making Machine
10Liter/20Liter/30Liter plastic canister making machine
Name: plastic canister
Usage for:Chemical field
Volume:20Litre
Brand:TONGDA Machinery
Max. Product Volume | (L) | 250L |
Dry cycle | (pc/h) | 300 |
Screw Diameter | (mm) | 132 |
Screw L/D ratio | (L/D) | 38(30) |
Screw drive power | (KW) | 320-380 |
Screw heating capacity | (KW) | 16.7 |
No. of heating zone | (ZONE) | 8 |
Max.Output of HDPE | (Kg/hr) | 160(PC) |
Oil pump drive power | (KW) | 45 |
Clamping force | (KN) | 770 |
Mold stroke (Platen distance) | (mm) | 800-1800 |
Max. Size of Mold(W*H) | (mm) | 1200*1720 |
Capacity of the diehead | (L) | 1.9 |
Max. Die diameter | (mm) | 620 |
Die heat capacity | (KW) | 15 |
No. of heating zone | (ZONE) | 6 |
Blowing pressure | (Mpa) | 1.0 |
Air volume | (M3/MIN) | 1.0 |
Cooling water pressure | (Mpa) | 0.3 |
Water consumption | (L/MIN) | 300 |
Size of machine ( L*W*H) | (m) | 7.8*2.9*5.4 |
Weight of machine | (TON) | 35 |

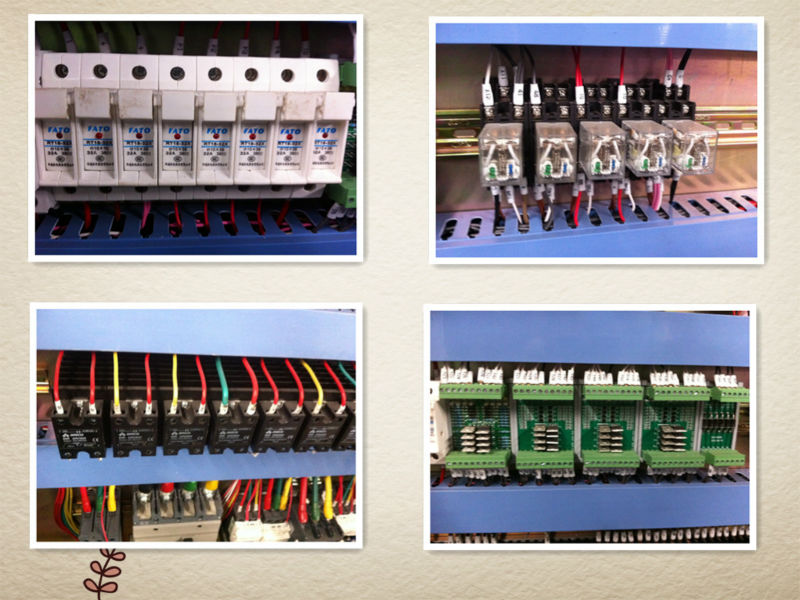

A:Our electronic control parts
plastic canister
Japan's Mitsubishi PLC computer and human-machine interface (English or Chinese) control, color touch-screen operation. All the process set to change, retrieval, monitoring, troubleshooting and other functions are implemented on the touch screen, no point of contact with the working principle, components and durable.
a) Hydraulic Parts
Name | Supplier |
Oil Pump | PARKER or SUNNY, America |
Valve | YUKEN or SUNNY |
Hose, Joint | PARKER SIR |
Sealer | Top DZ Europe |
b) Electrical Parts
Name | Supplier |
Microcomputer Control System | MITSUBISHI PLC, Japan |
Touch Screen | HITECH color screen, Taiwan |
Temperature Controller | MITSUBISHI, Japan |
Conductor | SCHNEIDER |
Air Switch | SCHNEIDER |
Motor | SIMENS BEIDE Asynchronous Motor |
Power Resource | MEAN WELL, Taiwan |
Inverter | MITSUBISHI |
c) Pneumatic Parts
Name | Supplier |
Solenoid Valve | , Germany |
Cylinder | , Germany |

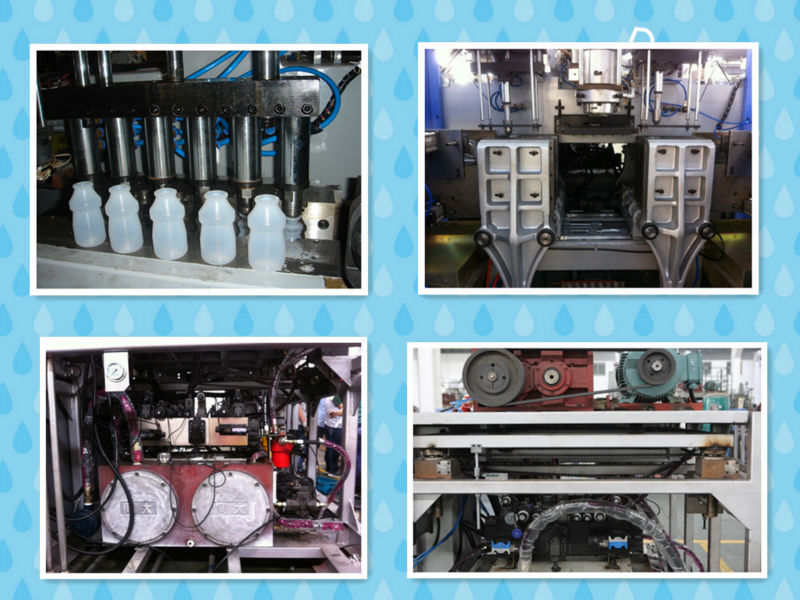

B:The other parts
plastic canister
Proportional pressure control equipped with hydraulic valve and pump imported brand-name, stable and reliable.
100-point electro-hydraulic servo control systems, electro-hydraulic servo system uses the energy storage device.
C:The opening and closing mold
plastic canister
the use of two template pin lock mechanism, the bottom of the template model using linear guide cylinder to achieve the shift shift mode, clamping force and balanced, enabling micro-mold, thus ensuring the locking time clamping force is sufficient, when mold mold smooth. This pin lock mechanism has been applied for a patent.
D:Extrusion blow molding machine installation, commissioning and training:
plastic canister
If the buyer needs seller to send technicians to workshop for supervising the erection and start-up, seller must support and send sufficient number of technicians and keep duration of stay in workshop. Usually it's about 3~5 days in this duration. The first day is that when our technician is at the airport to factory of buyer. And from the first day, the buyer has to pay US$80 per day. And all accommodation, visa application & air ticket will be born by the buyer.

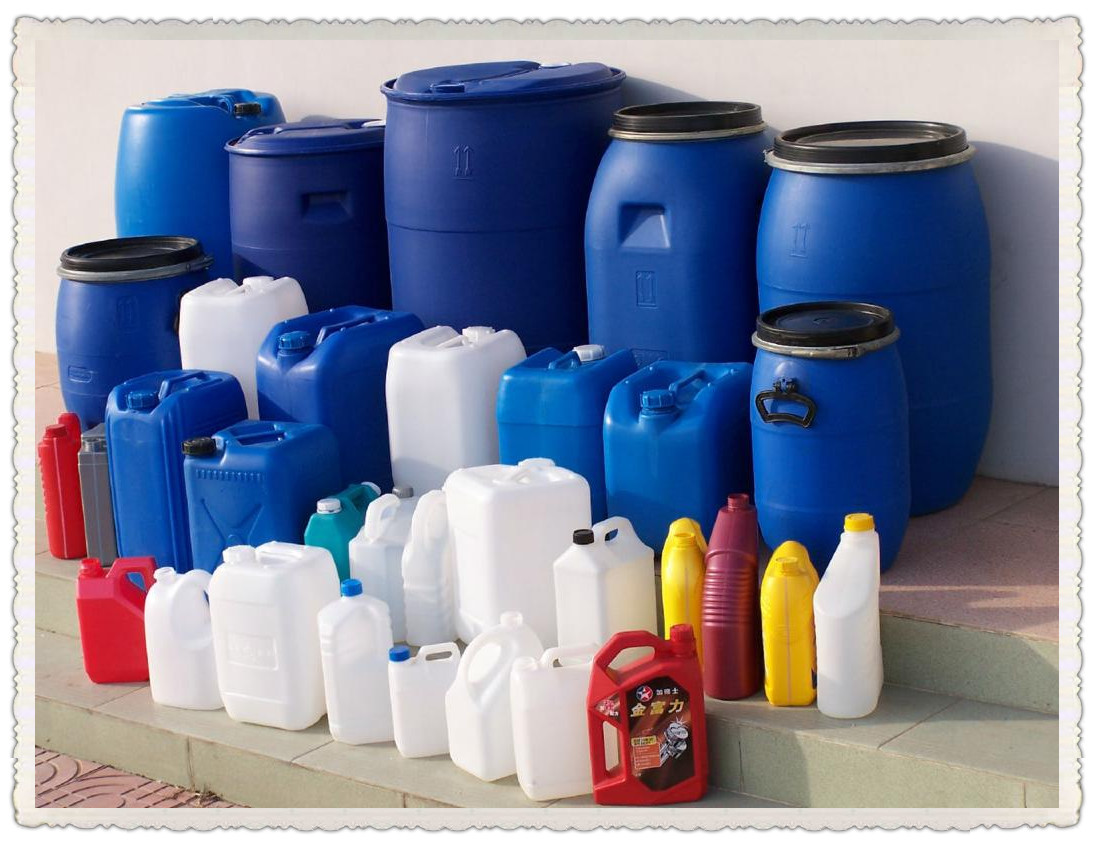

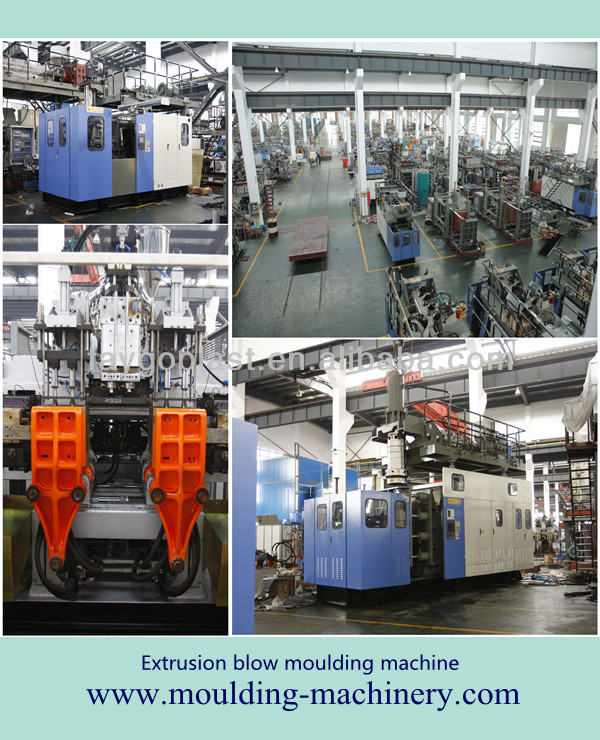

E:Our products
plastic canister

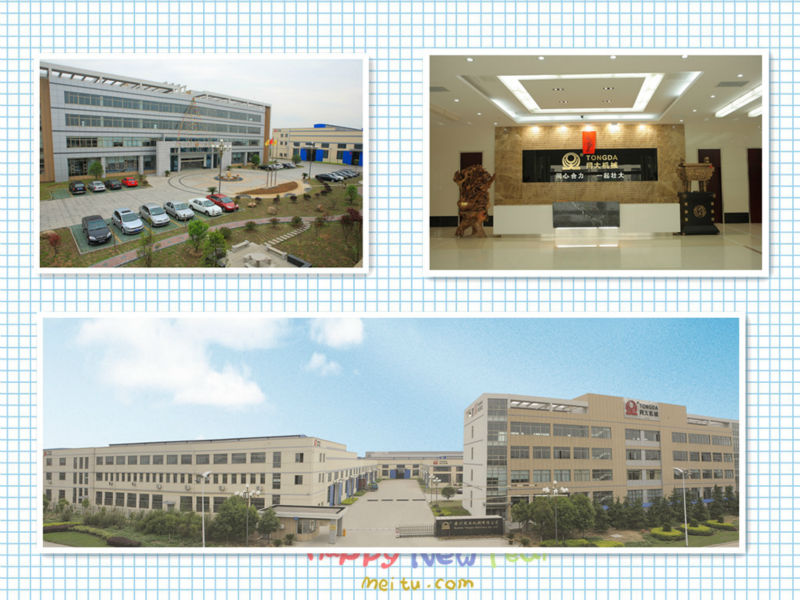

F:Our company
plastic canister

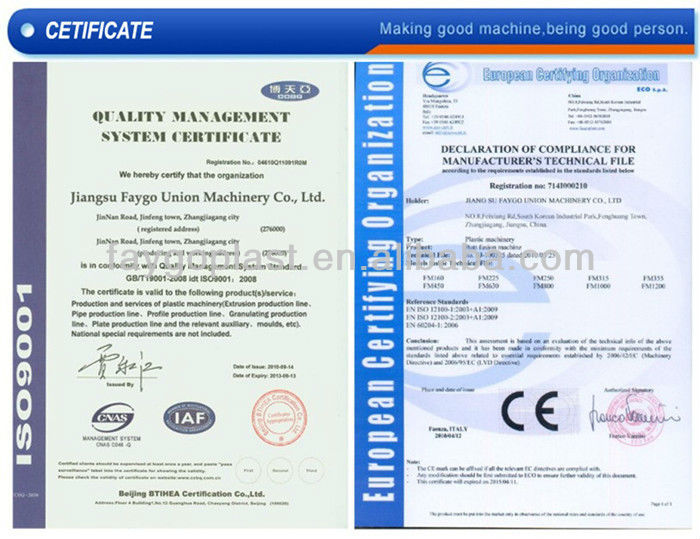

G:Our certificate:CE and ISO9001
plastic canister
